Windows Login app- How to enroll credentials

​

Pre-requisite

• In Oloid Portal, you must enable Allow Credential Updates and Enrollment to enroll credentials in Windows Login app. For more details, refer to How to enable Allow Credential Updates and Enrollment in Windows Login application
• Make sure either the user’s Primary ID or email ID matches your System Account Name.

​

Enroll Face

Steps to enroll face through Windows Login app:

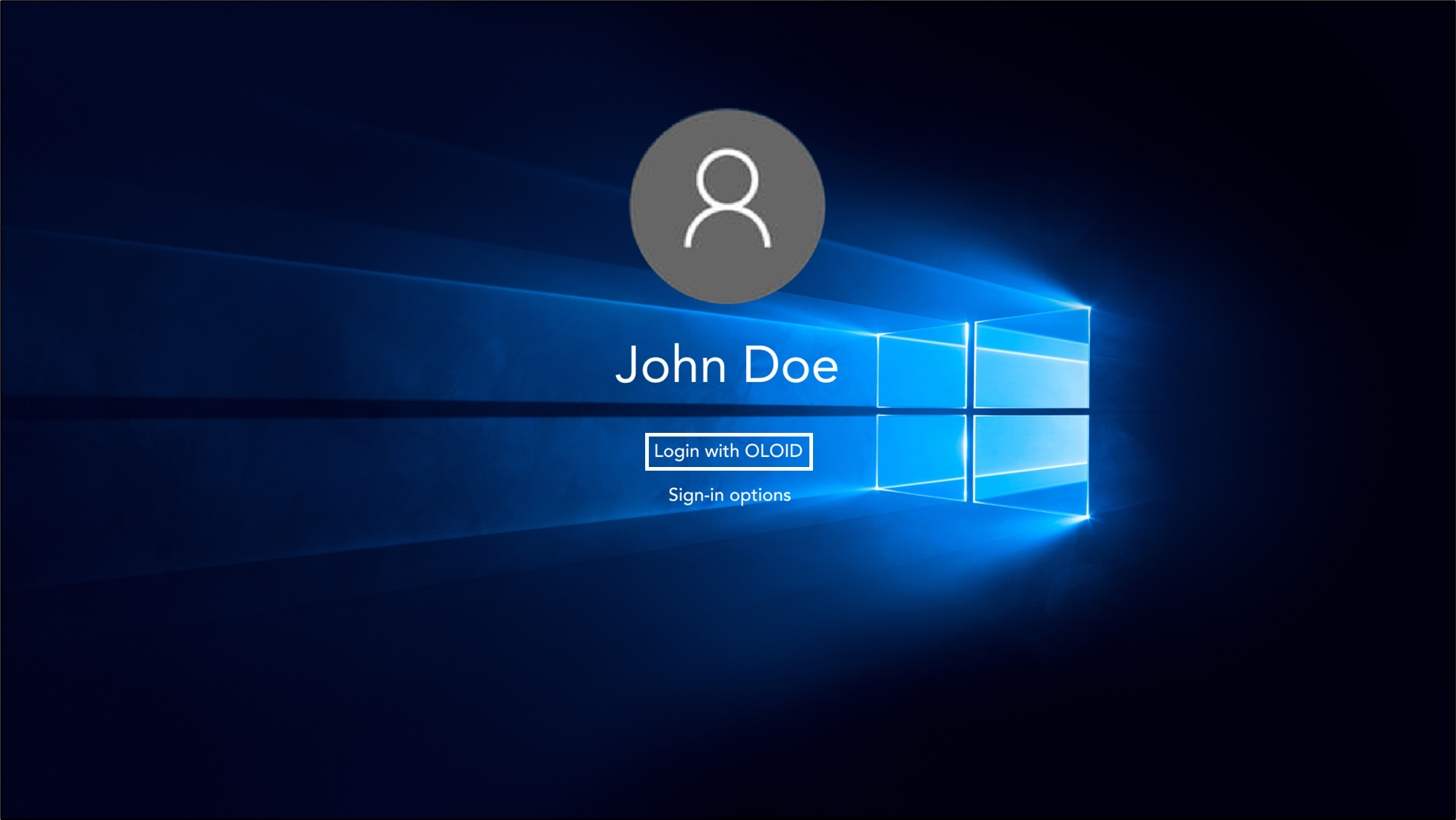

1. On the Windows lock screen, click Login with OLOID. The Windows login app opens and the Welcome page is displayed.

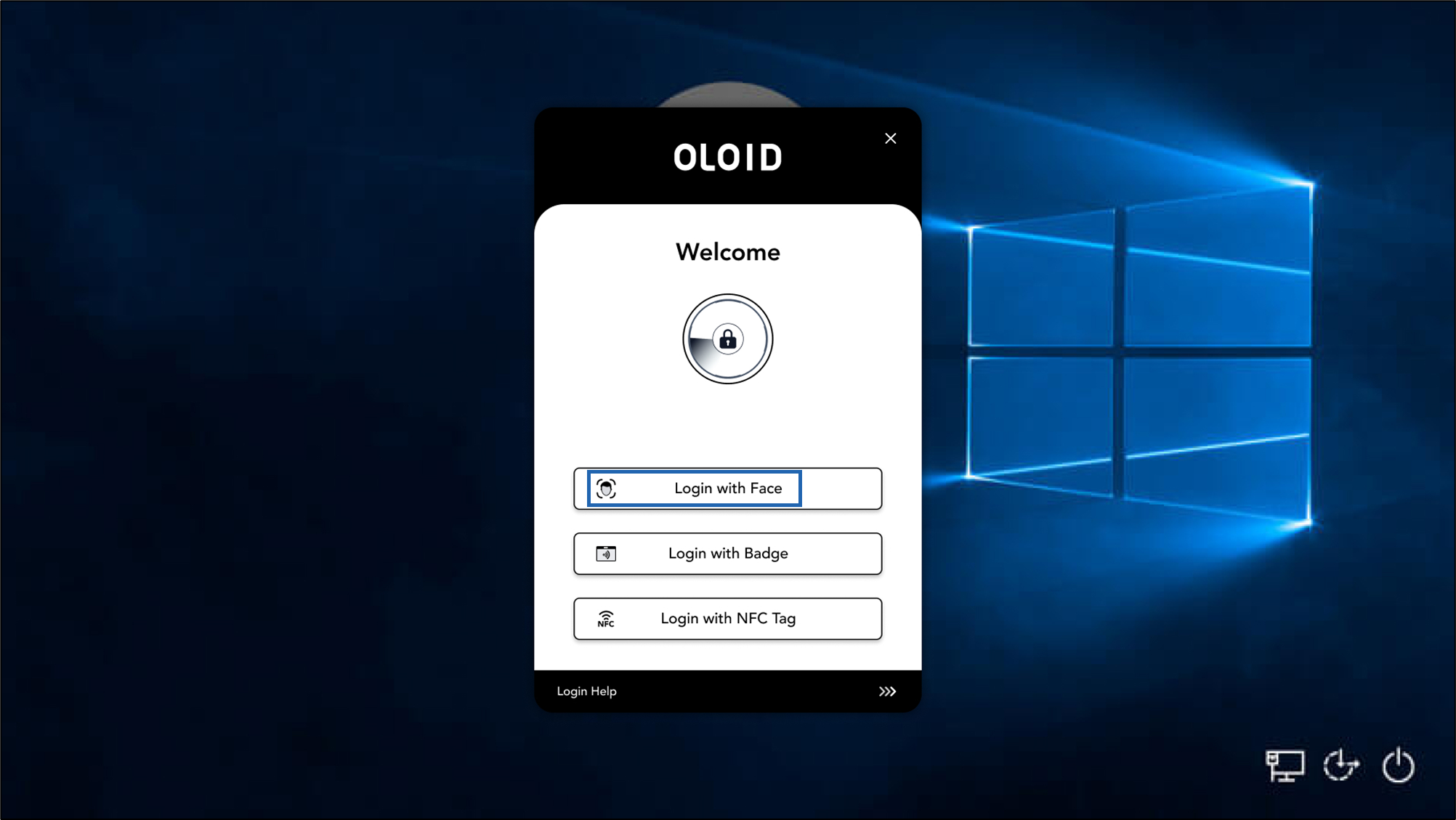

2. Select Login with Face. The Windows login app opens and the camera turns on.

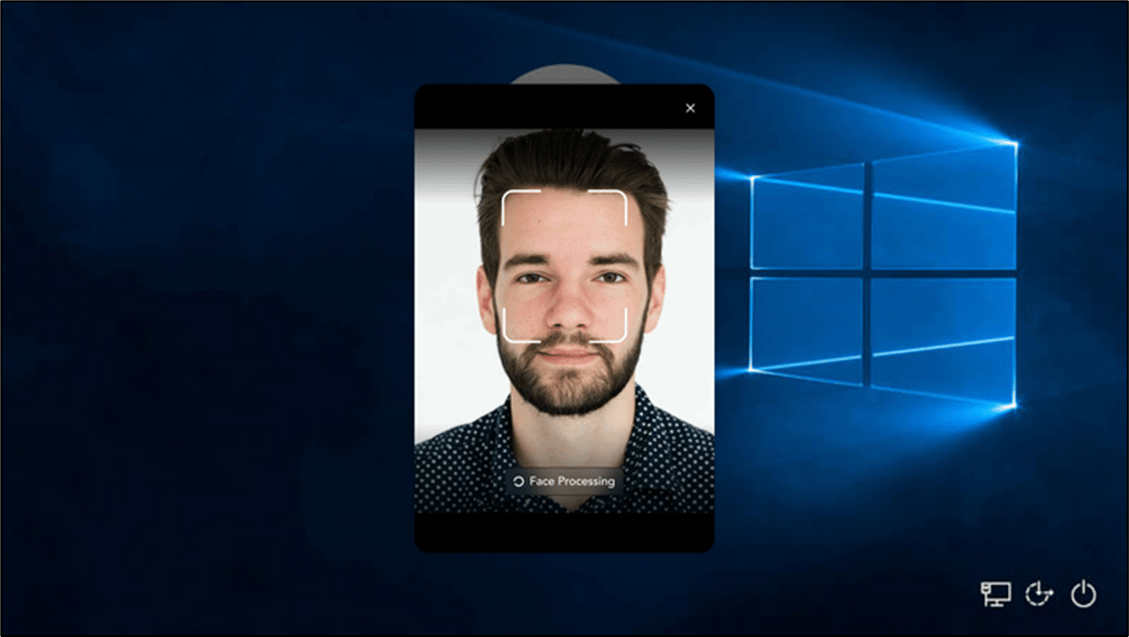

3. Place your face in front of the camera for facial authentication. The Face authentication fails and the Enroll Credential option is displayed.

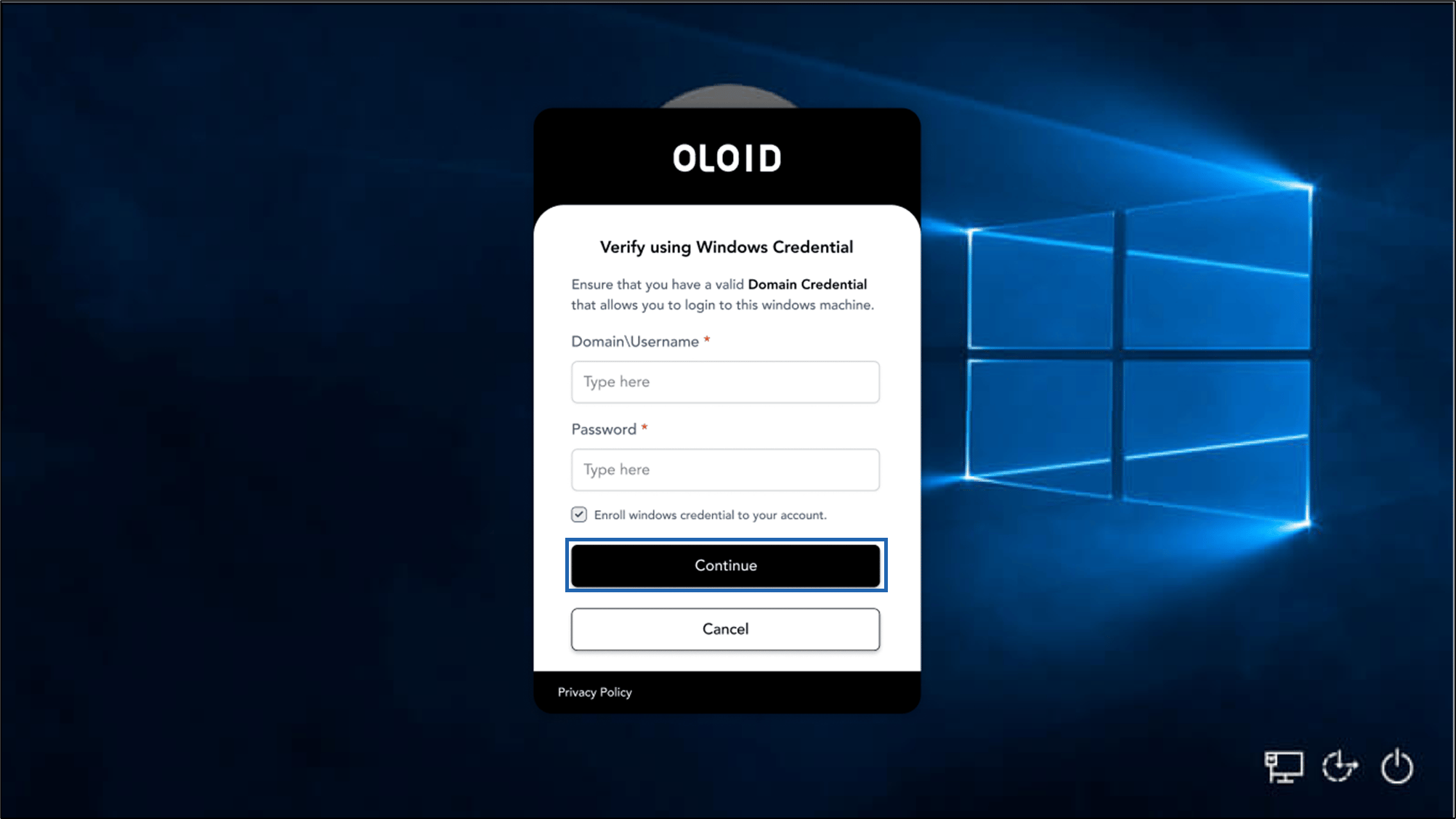

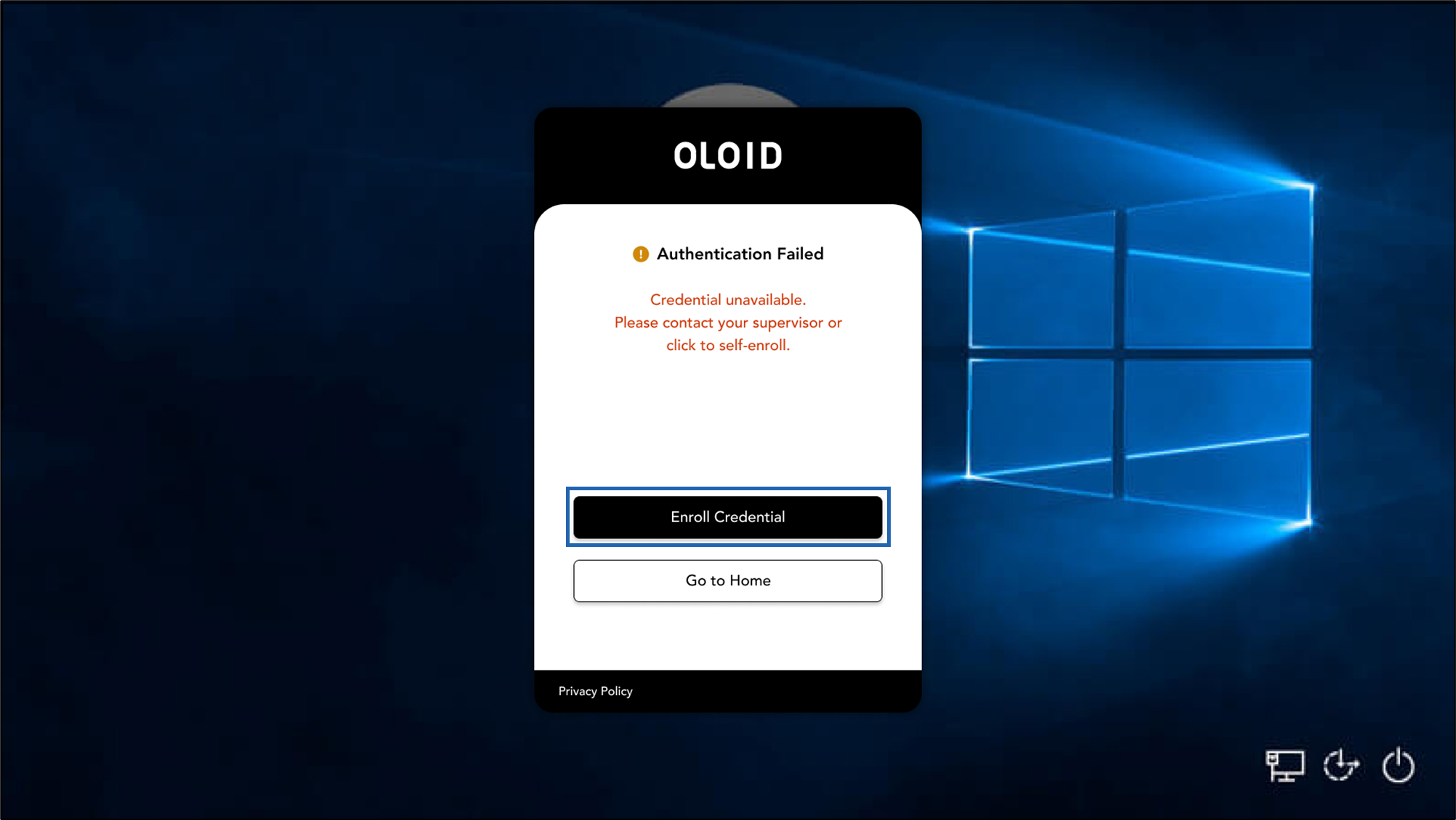

4. On the Authentication Failed screen, select Enroll Credential. The Verify using Windows Credential screen is displayed.
5. Do the following:
   1. Enter Domain\Username. Enter your Windows domain and username in the format Domain\Username.
   2. Enter Password. Use your Windows account password.
   3. Select Enroll Windows credential to your account. (Optional)
   4. Click Continue. The Select Credential to Enroll or Update screen is displayed.
6. Select Face.
   Note: If connection is enabled, user consent is requested before uploading the picture.
   The camera turns on.

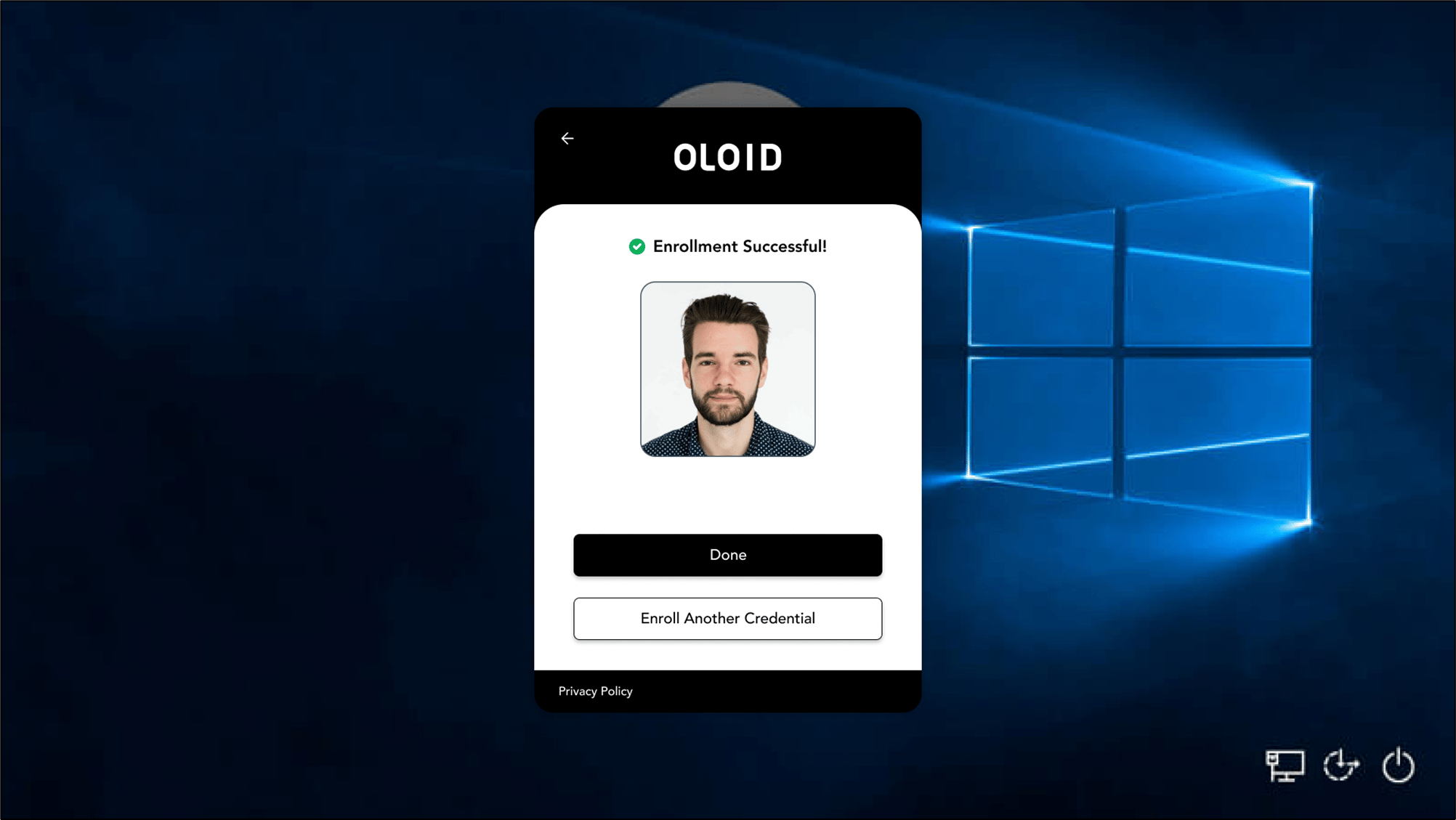

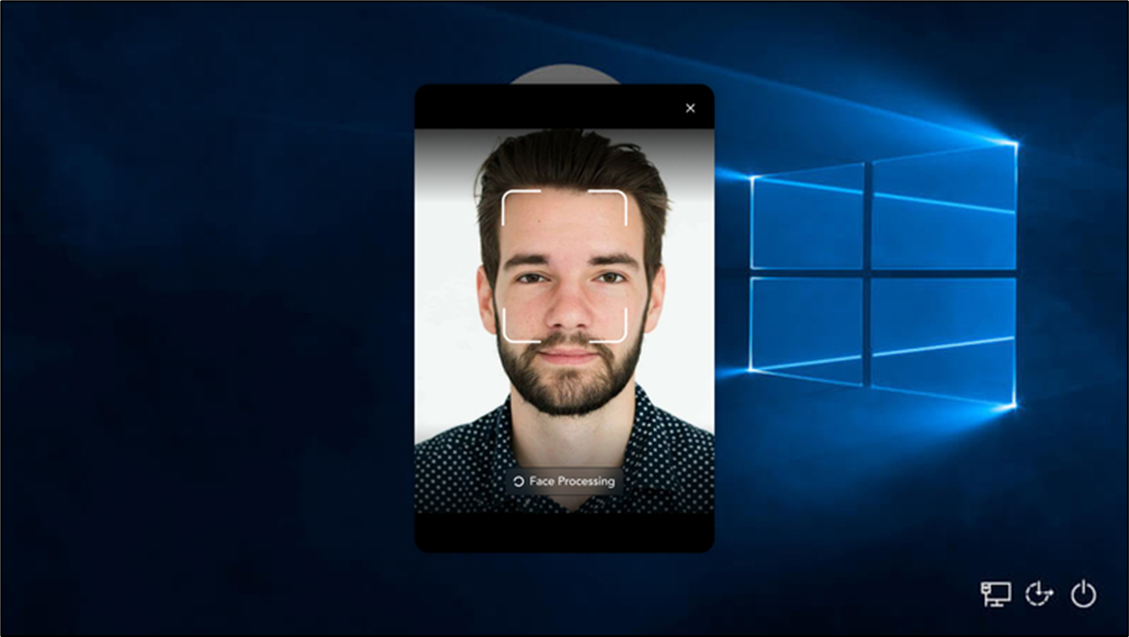

7. Place your face in front of the camera for face authentication. Your face is automatically captured and it is enrolled successfully.

​

Enroll Badge

Steps to enroll badge through Windows Login app:

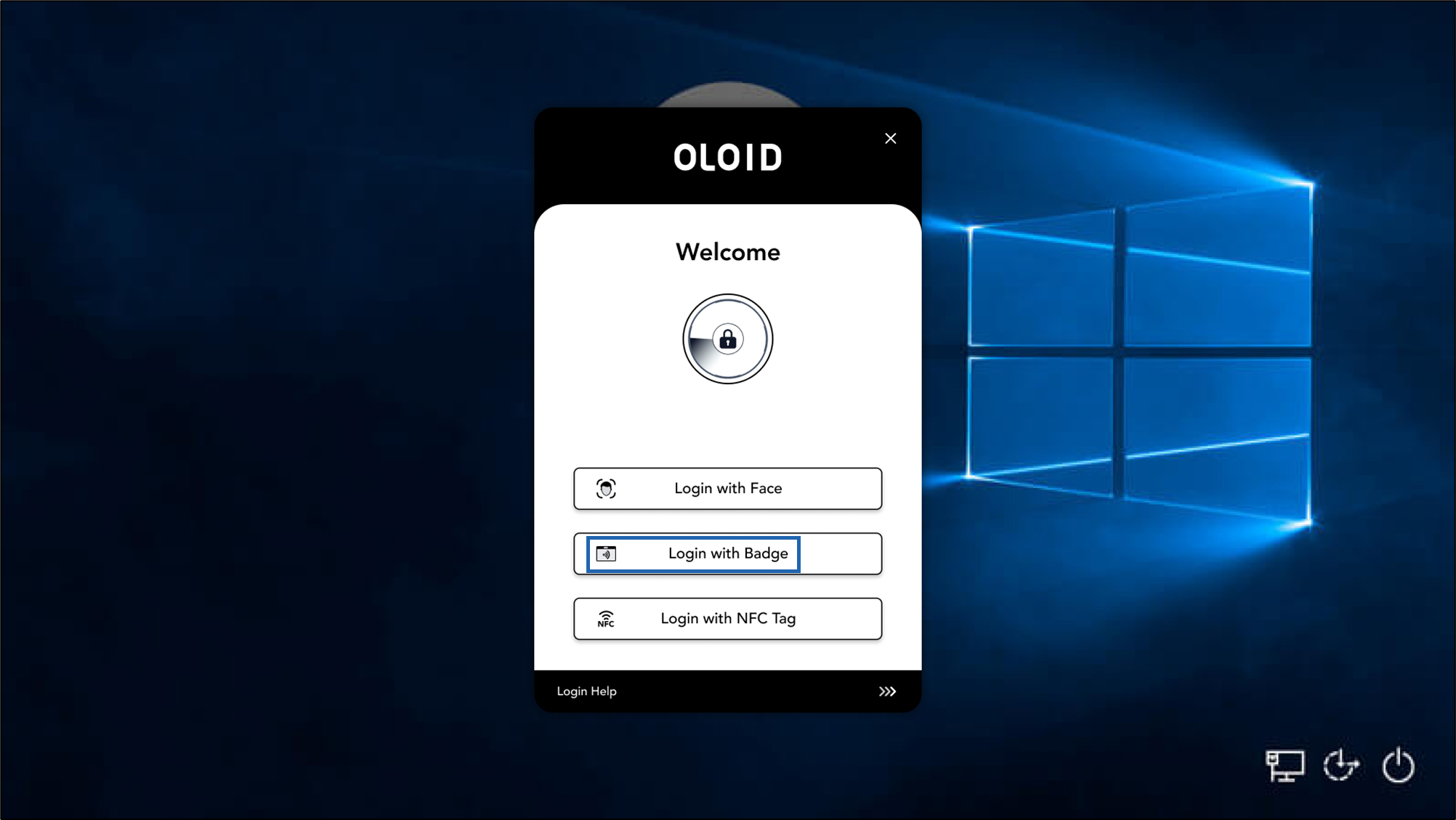

1. On the Windows lock screen, click Login with OLOID. The Windows login app opens and the Welcome page is displayed.

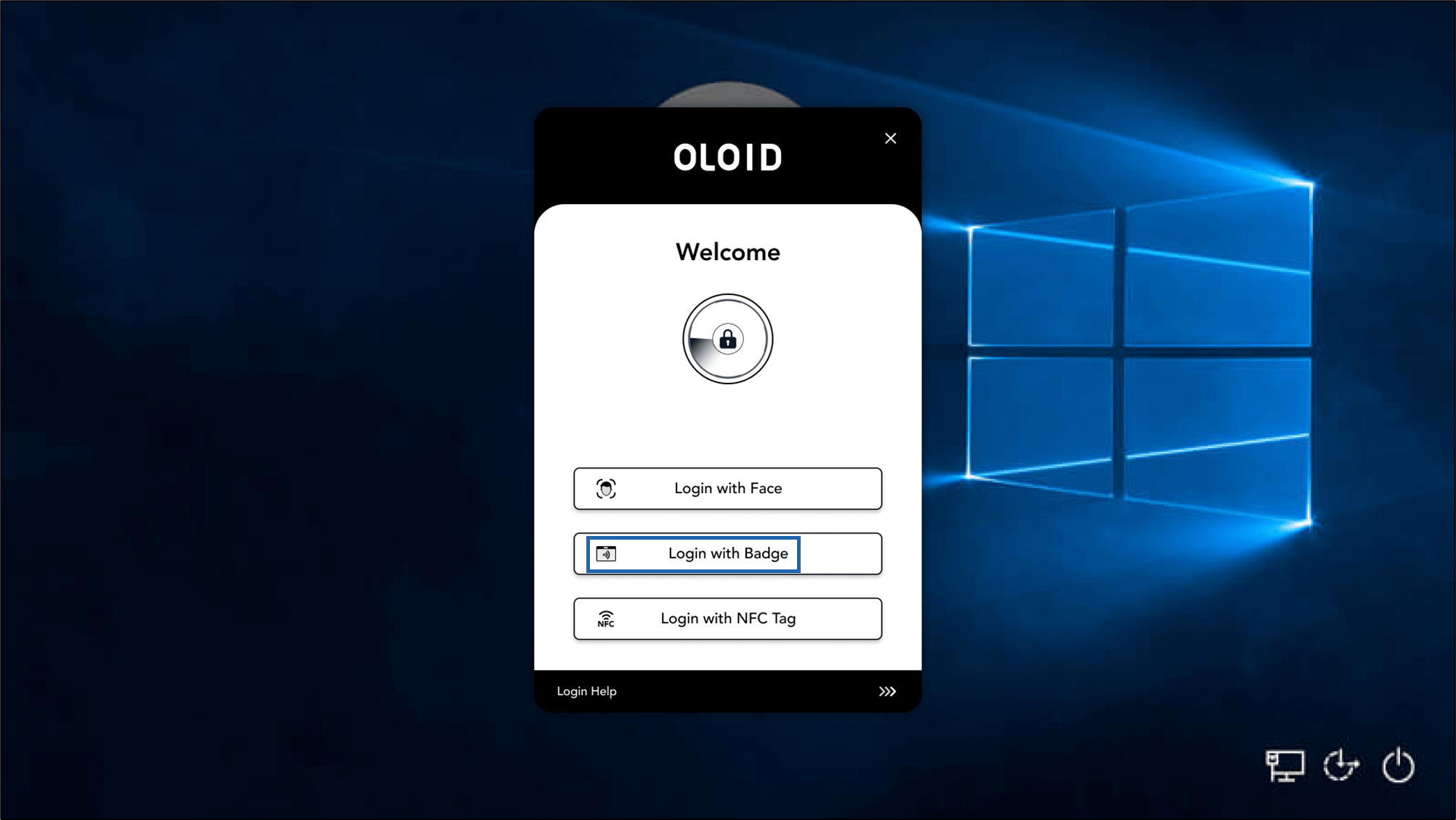

2. Select Login with Badge.

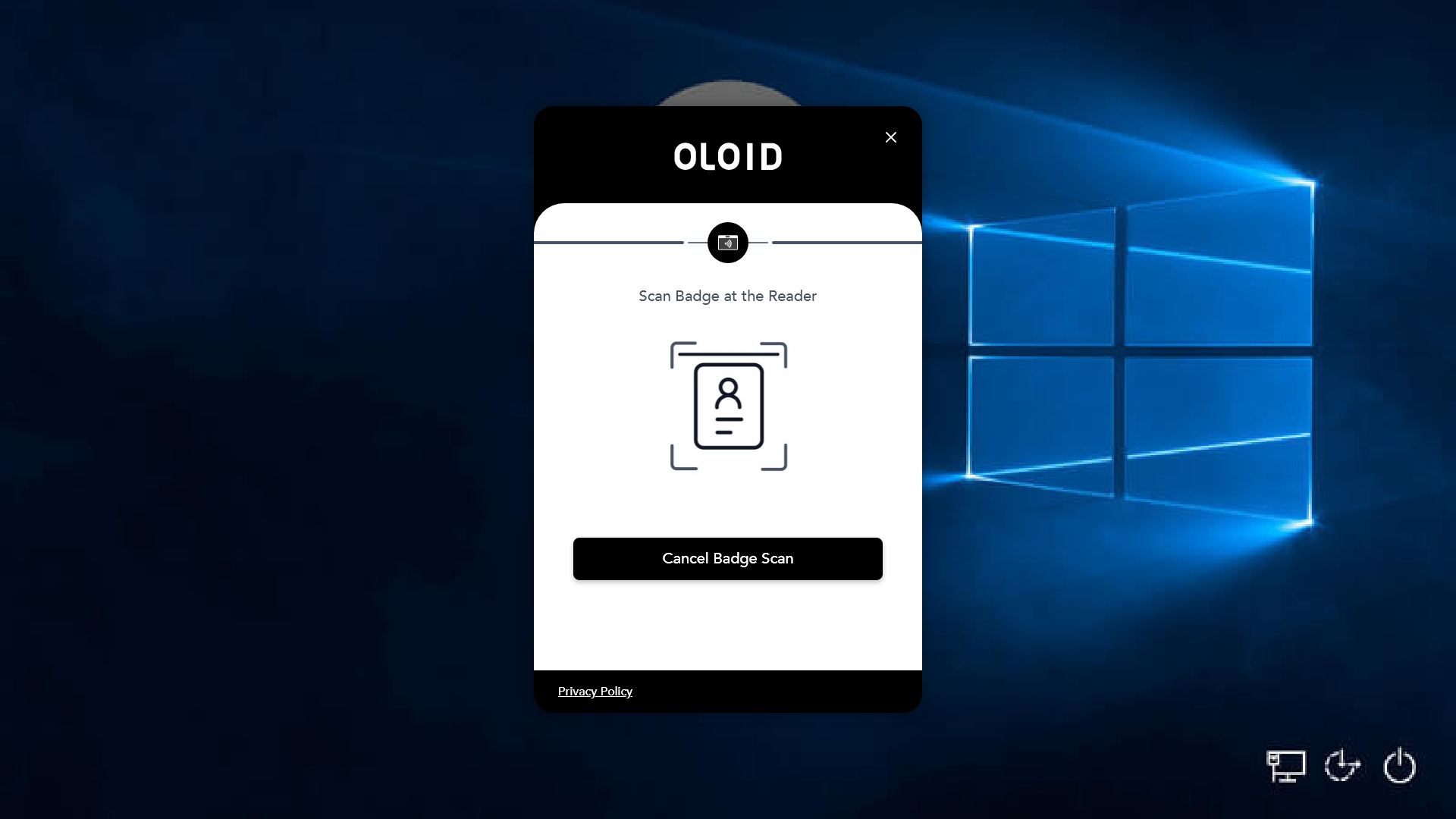

3. Tap the Badge on the Badge Reader to scan it.
   Note: The badge reader must be connected to the computer.
   The badge authentication fails and the Enroll Credential option is displayed.

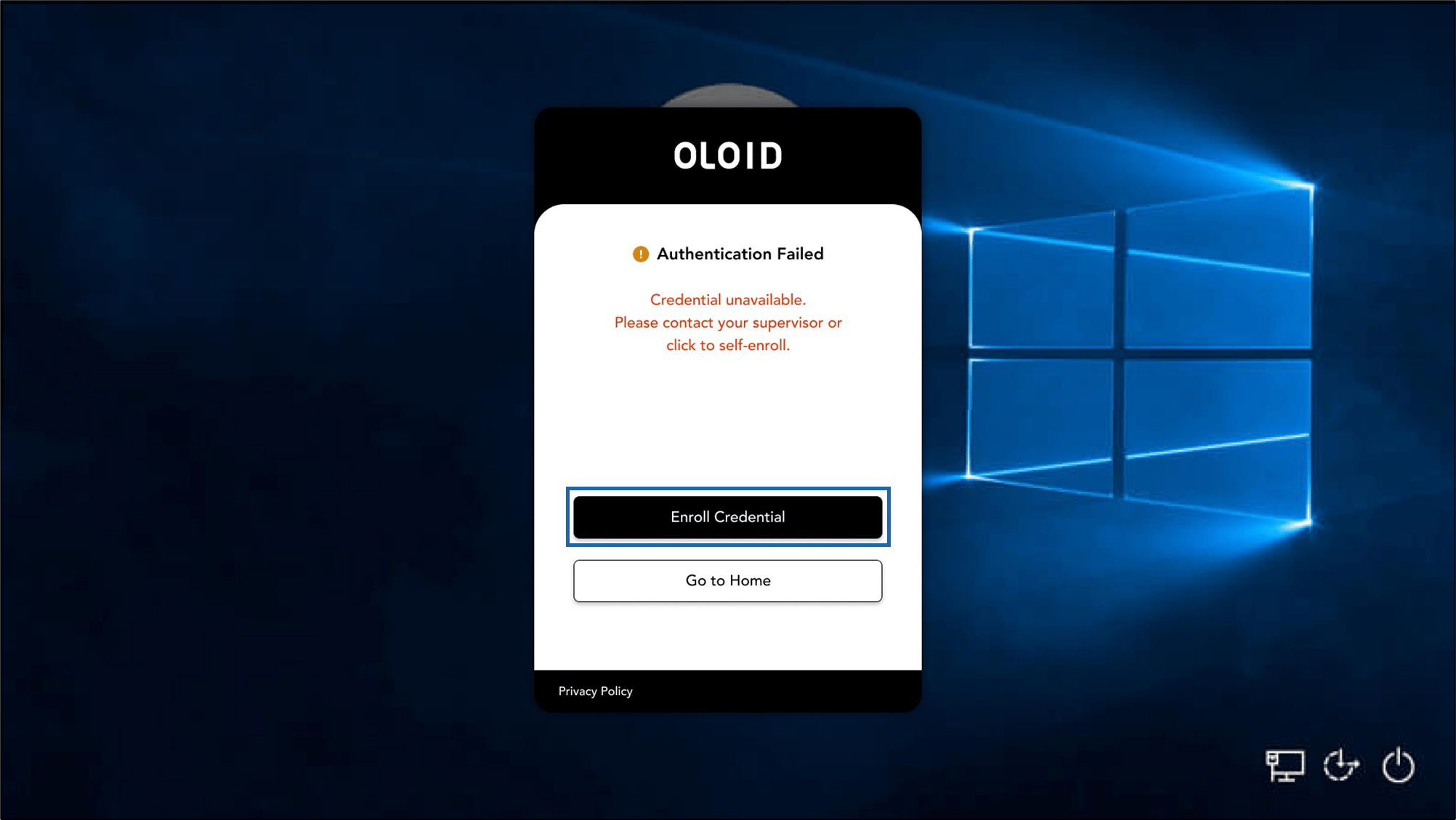

4. On the Authentication Failed screen, select Enroll Credential. The Verify using Windows Credential screen is displayed.
5. Do the following:
   1. Enter Domain\Username. Enter your Windows domain and username in the format Domain\Username.
   2. Enter Password. Use your Windows account password.
   3. Select Enroll Windows credential to your account. (Optional)
   4. Click Continue. The Select Credential to Enroll or Update screen is displayed.
6. Select Badge.
   Note: You can also update the badge credential.
   The Scan your Badge to Enroll screen is displayed.
7. Scan your badge in the Badge Reader.

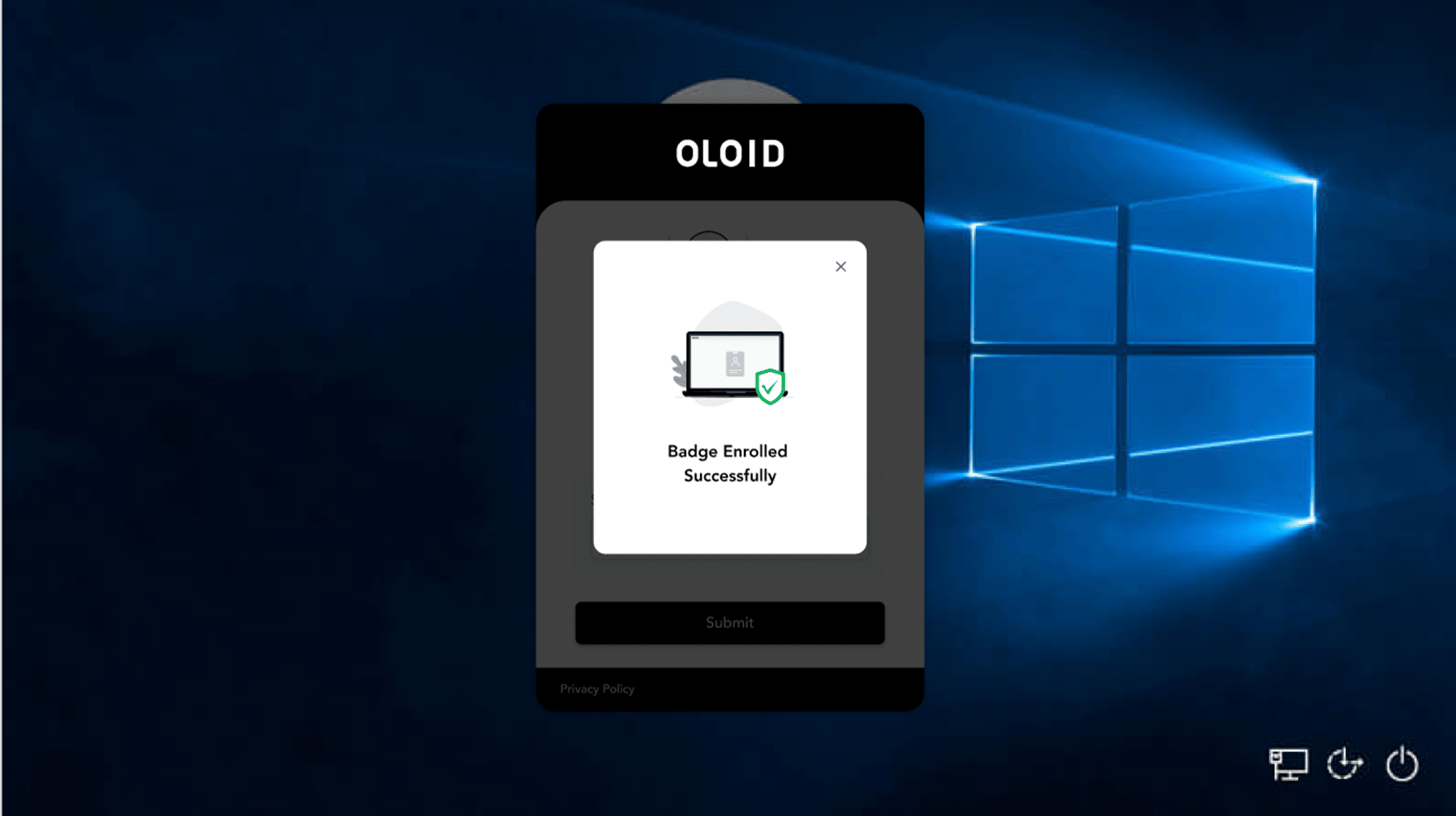

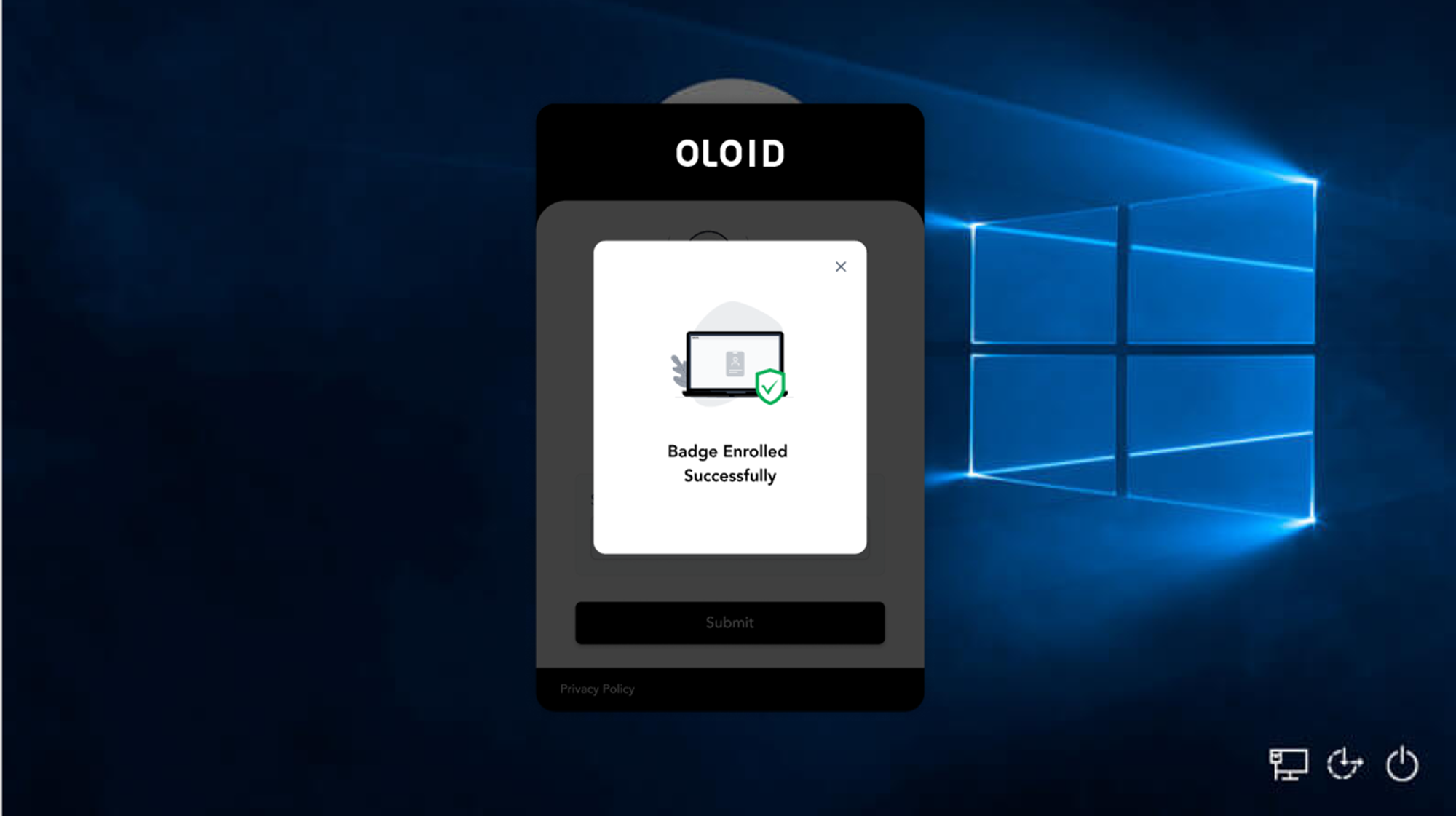

8. Click Submit. The badge is enrolled successfully.

​

Enroll PIN

​

Enroll NFC

Steps to enroll NFC through Windows Login app:

1. On the Windows lock screen, click Login with OLOID. The Windows login app opens and the Welcome page is displayed.

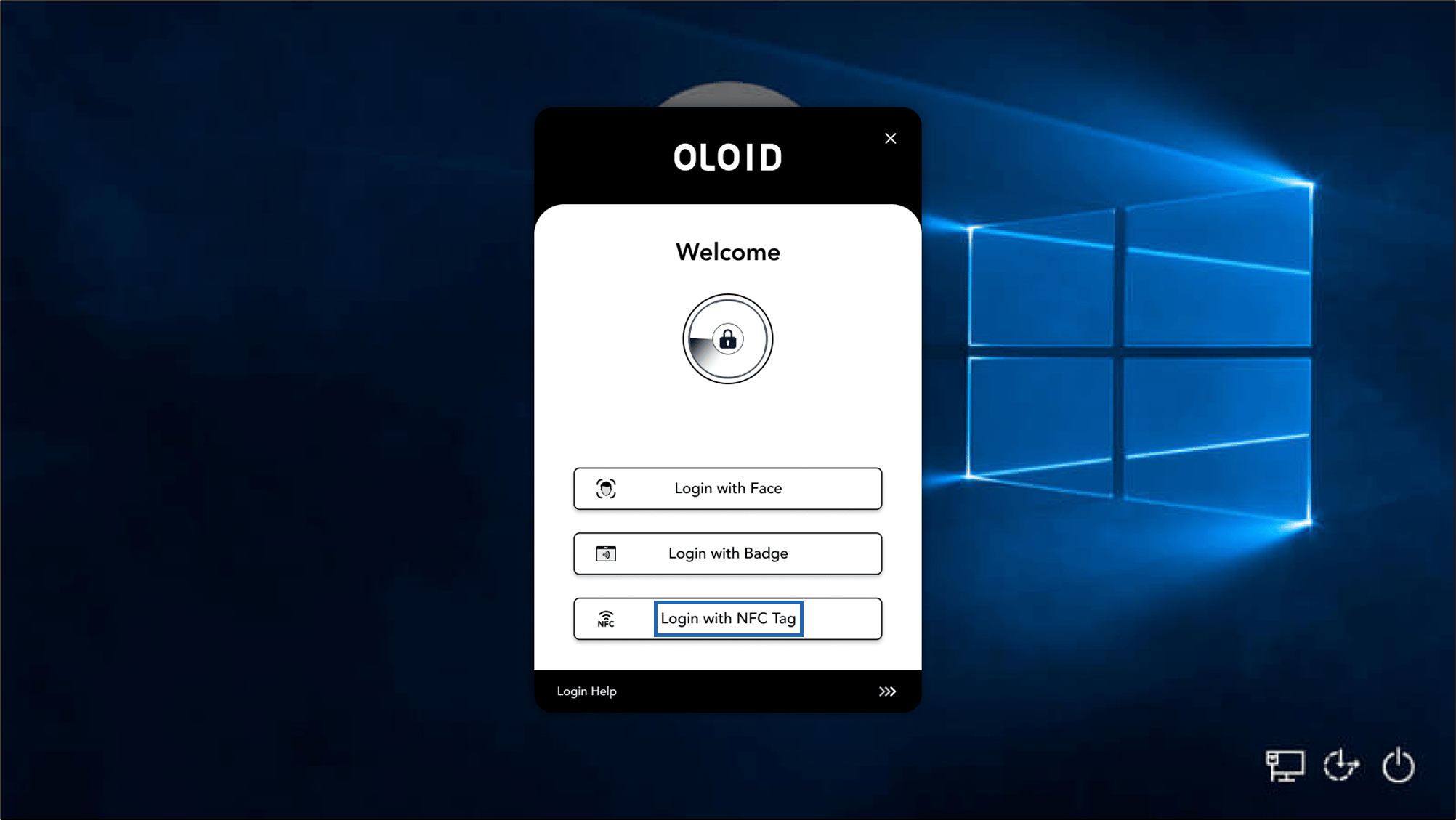

2. Select Login with NFC Tag.

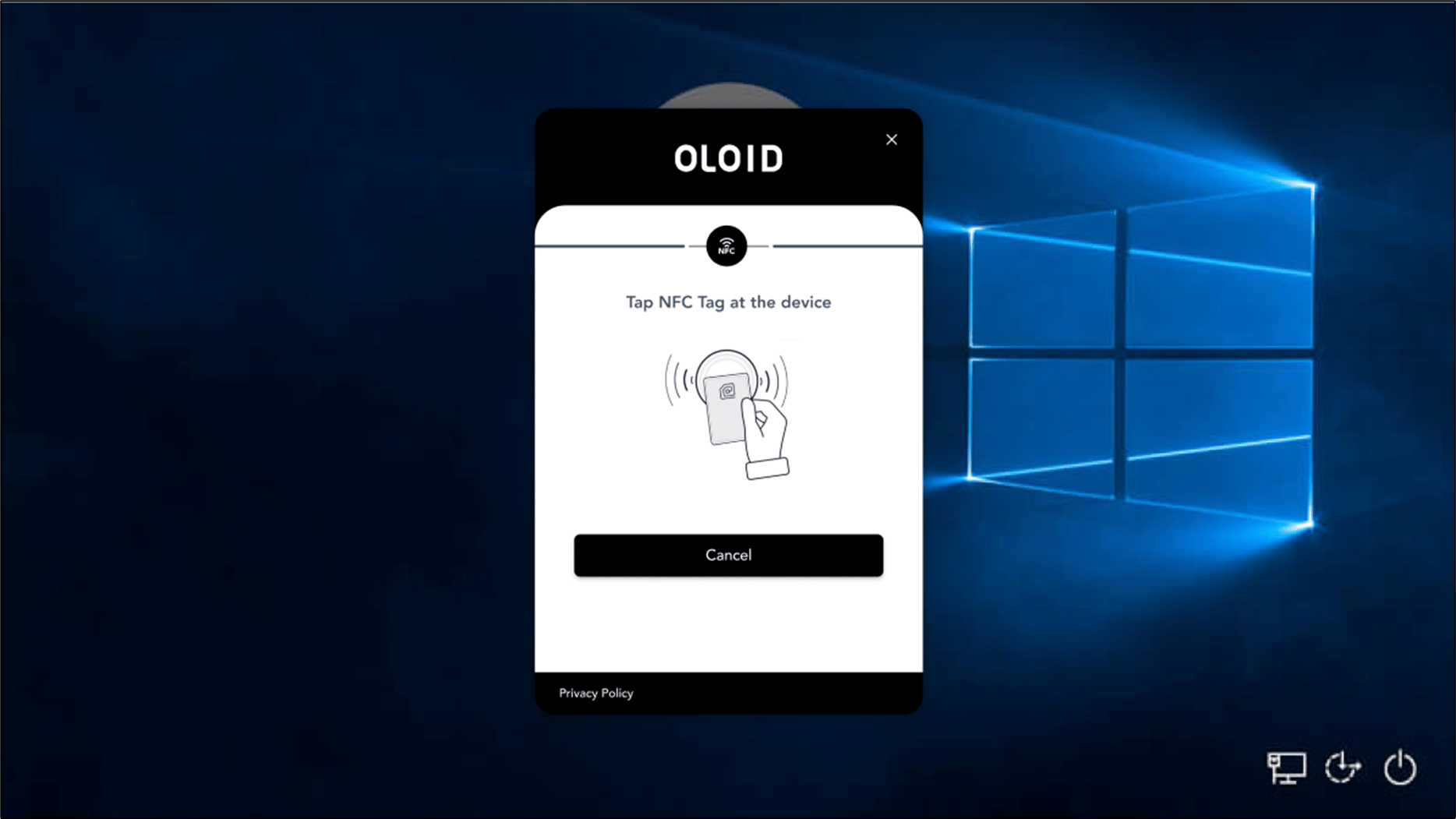

3. Tap the NFC Tag on the Card Reader to scan it.
   Note: The card reader must be connected to the computer.
   The NFC authentication fails and the Enroll Credential option is displayed.
4. On the Authentication Failed screen, select Enroll Credential. The Verify using Windows Credential screen is displayed.
5. Do the following:
   1. Enter Domain\Username. Enter your Windows domain and username in the format Domain\Username.
   2. Enter Password. Use your Windows account password.
   3. Select Enroll Windows credential to your account. (Optional)
   4. Click Continue. The Select Credential to Enroll or Update screen is displayed.

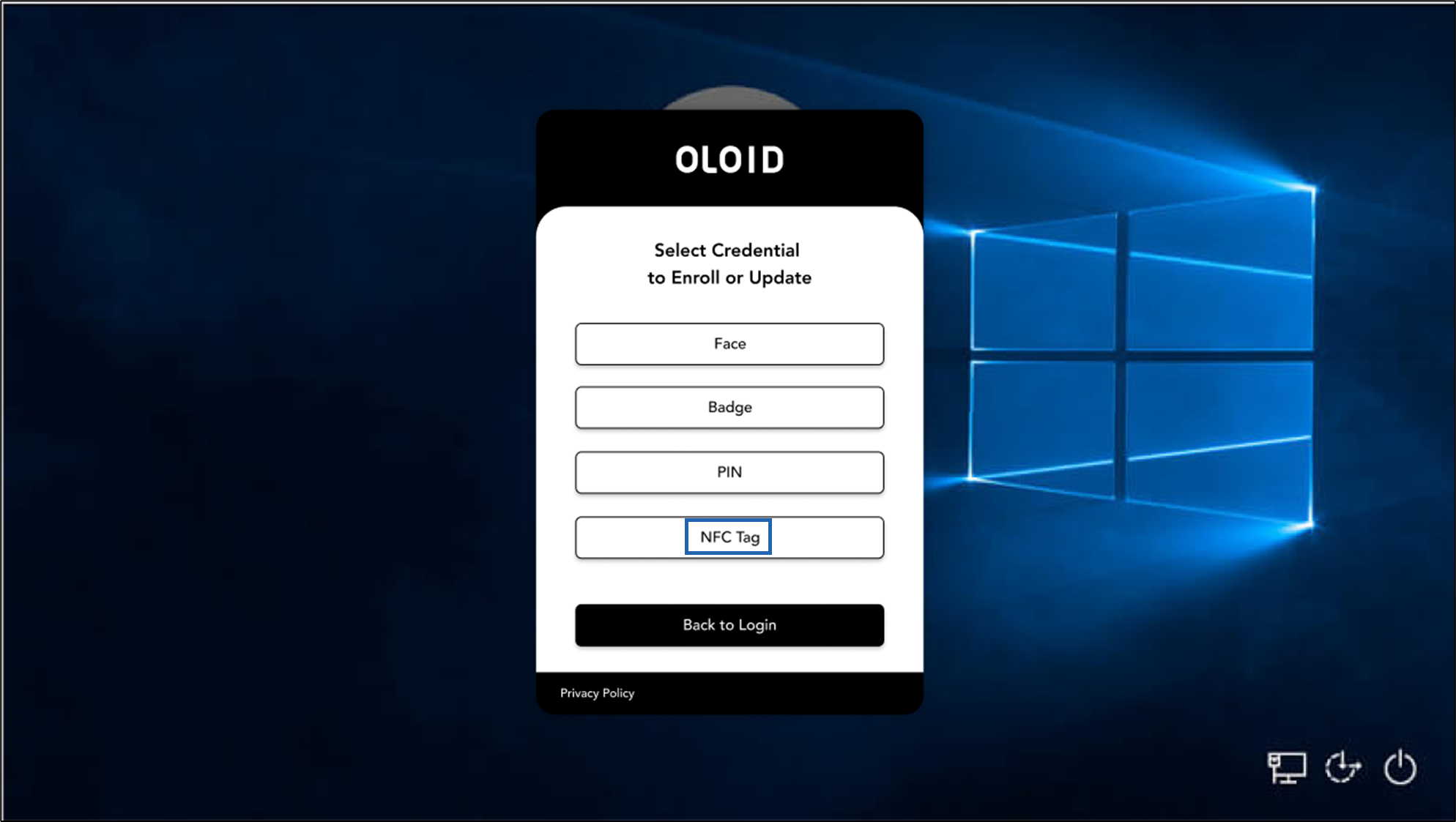

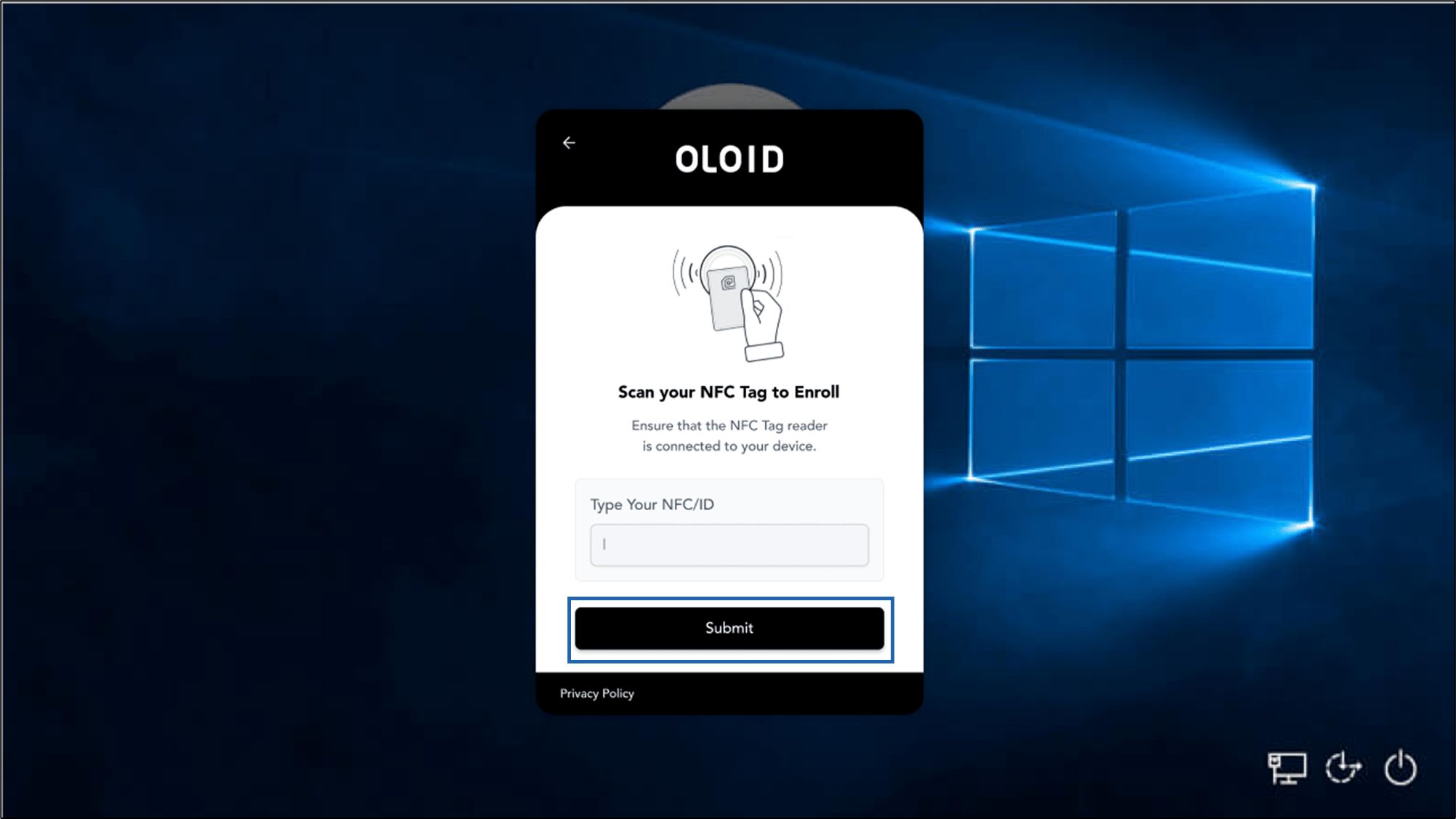

6. Select NFC Tag. The Scan your NFC Tag to Enroll screen is displayed.
7. Scan your NFC Tag in the Card Reader.

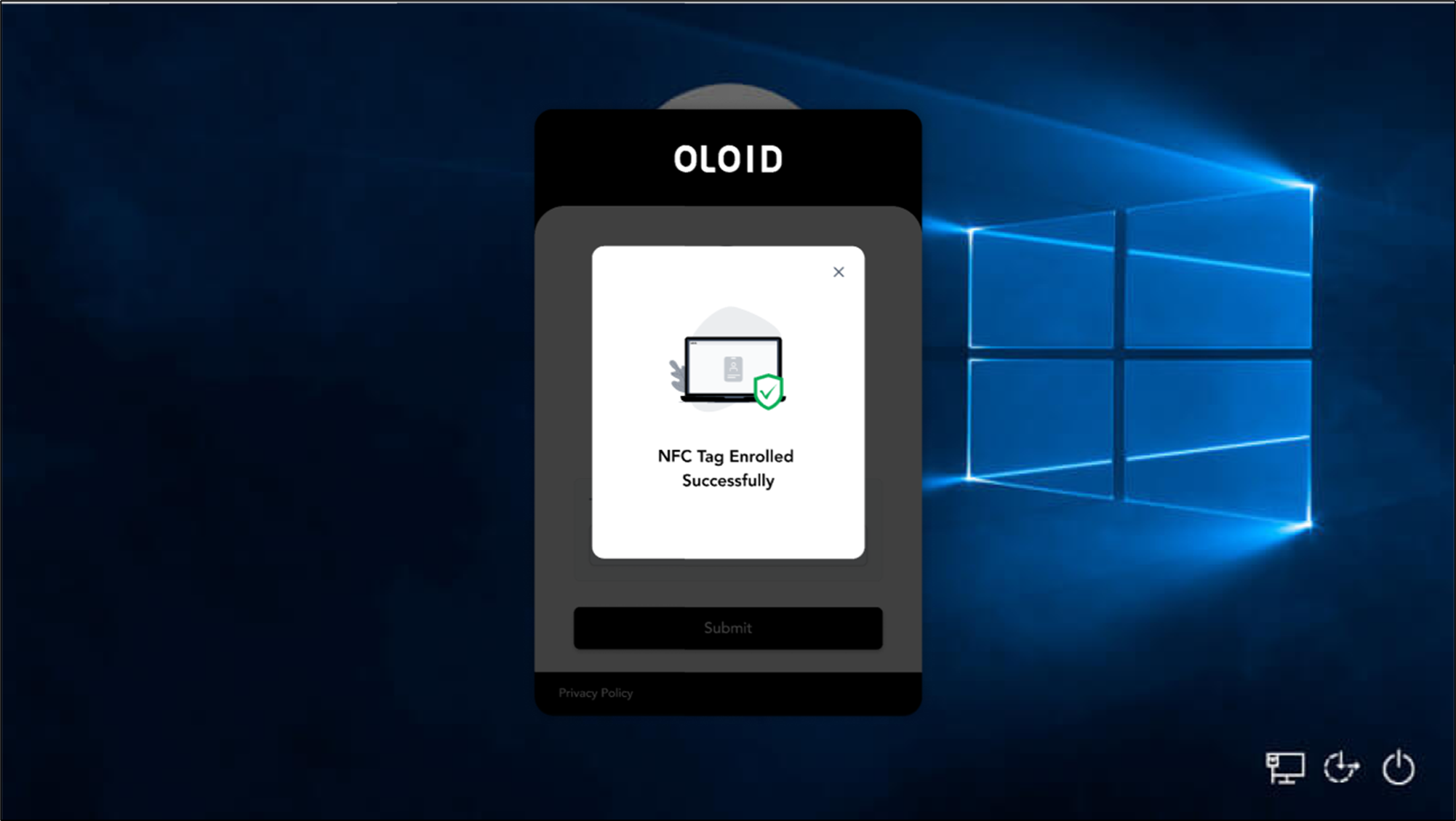

8. Click Submit. The NFC Tag is enrolled successfully.
