Supervisor Portal - How to assign Badge ID and create Bluetooth credentials

​

Introduction

Bluetooth ID is generated for the M-Tag application to function.

​

Pre-requisite

Badge ID should be assigned to the User. Steps to assign Badge ID and create Bluetooth credentials:

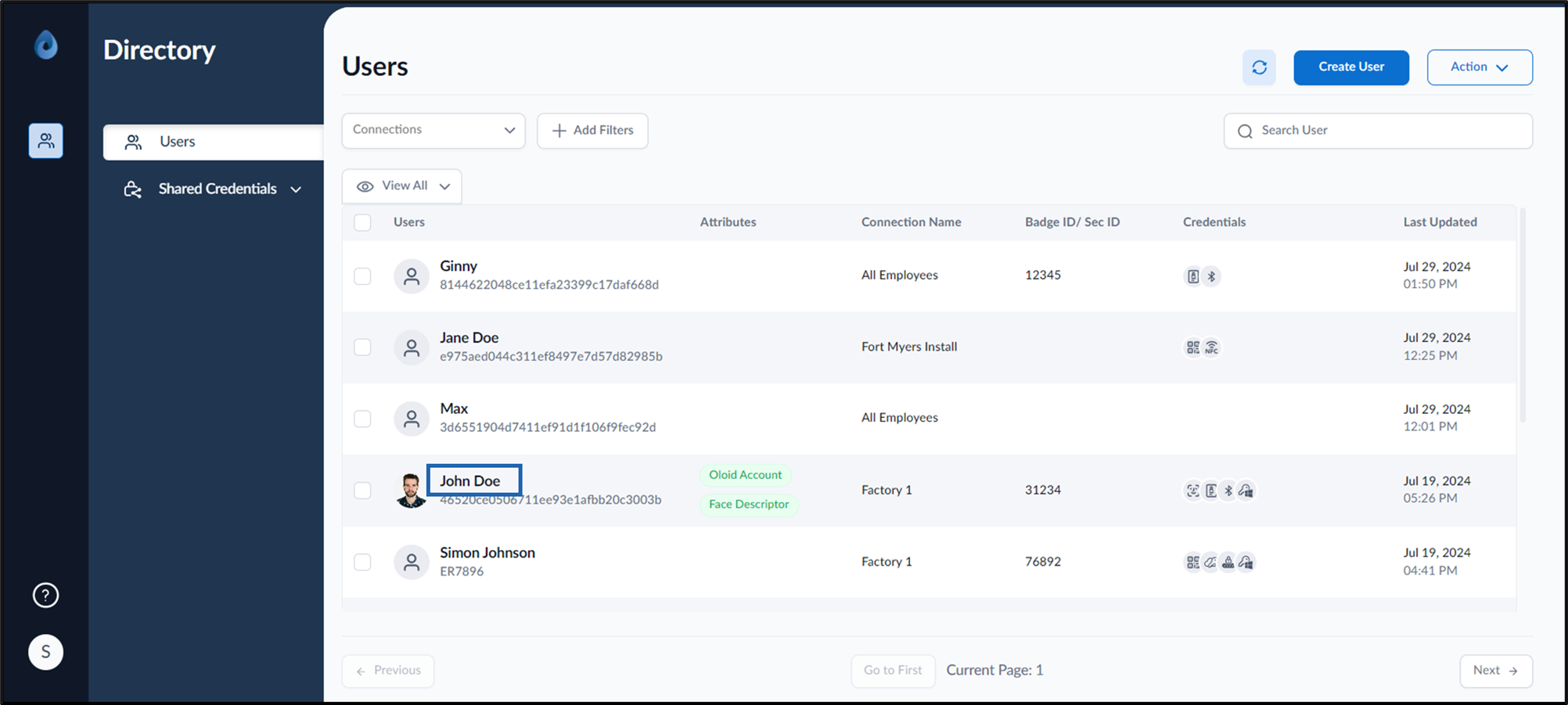

1. Log in to the Supervisor Portal. The Users page is displayed.

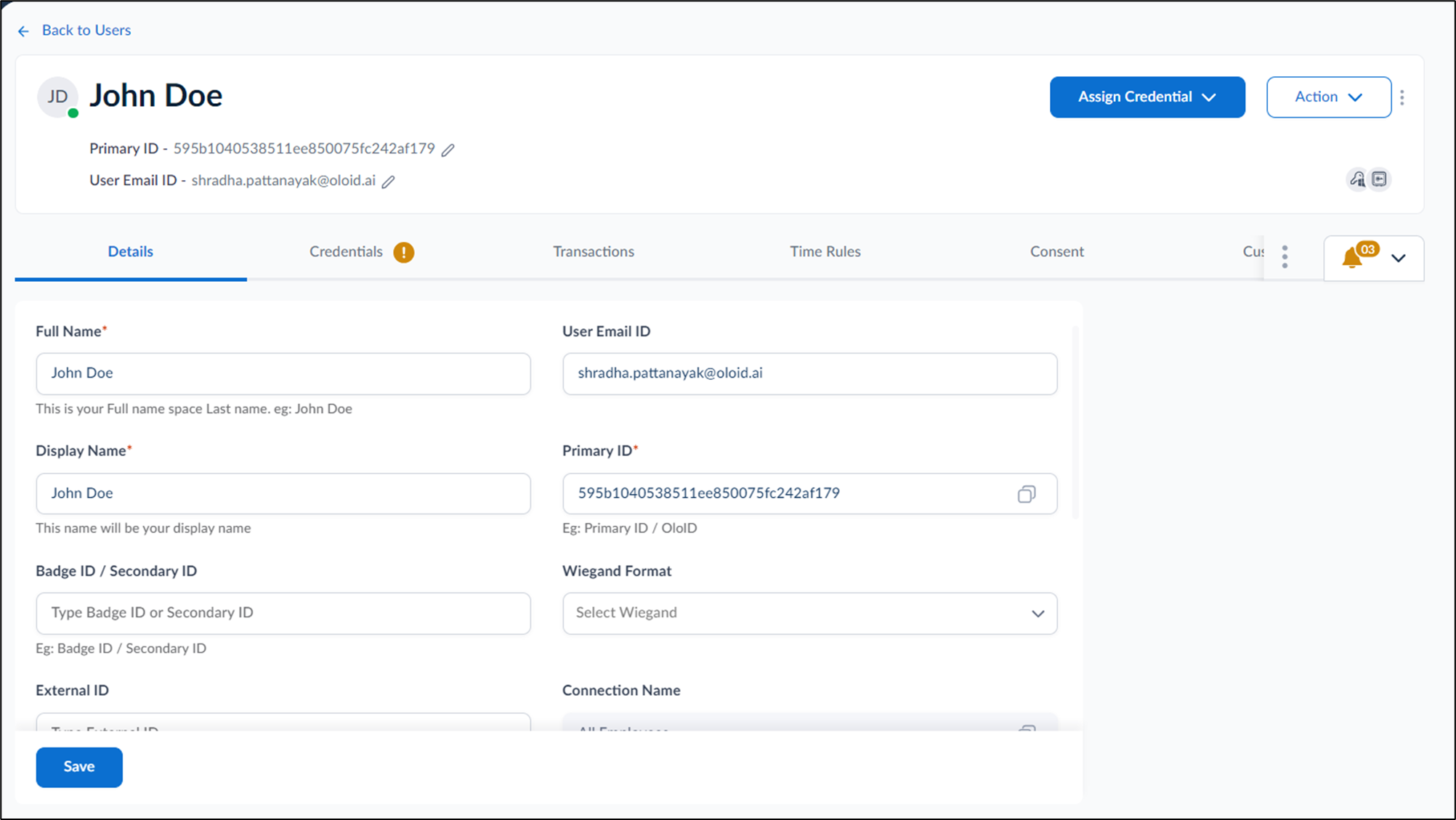

2. Click the username to edit. The user details page is displayed.
3. Do any of the following:

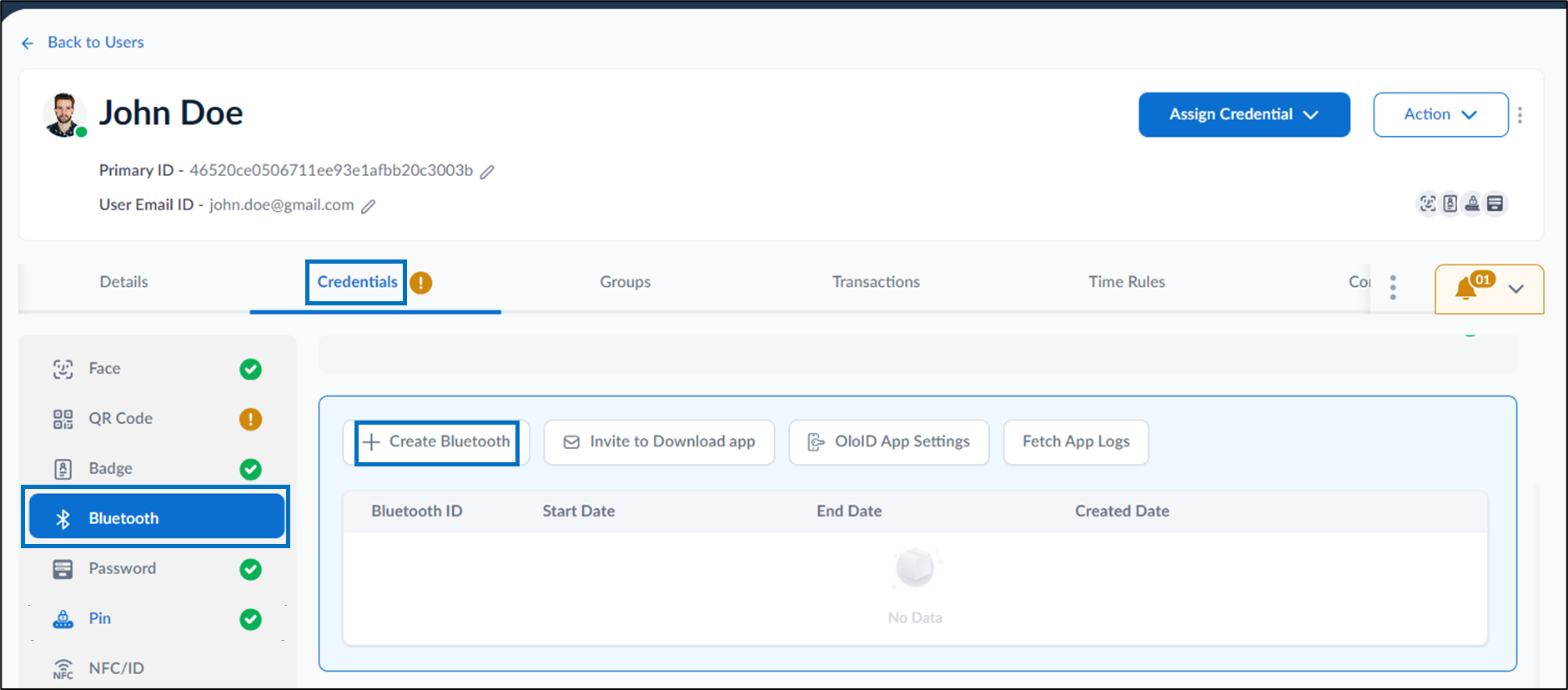

   1. Go to Credentials > Bluetooth tab> + Create Bluetooth.

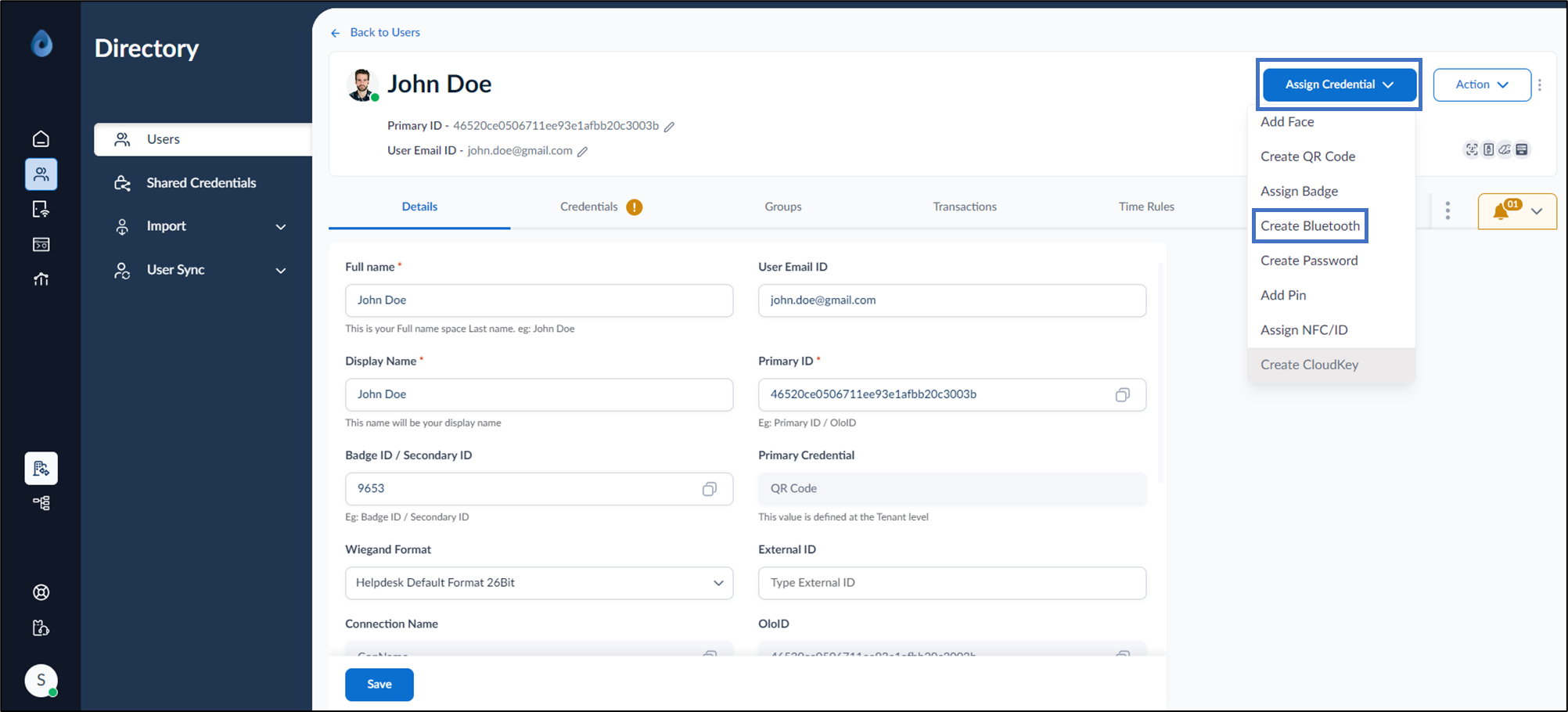

   2. Go to Assign Credential > Create Bluetooth. The Assign Bluetooth Credential pop-up box is displayed.

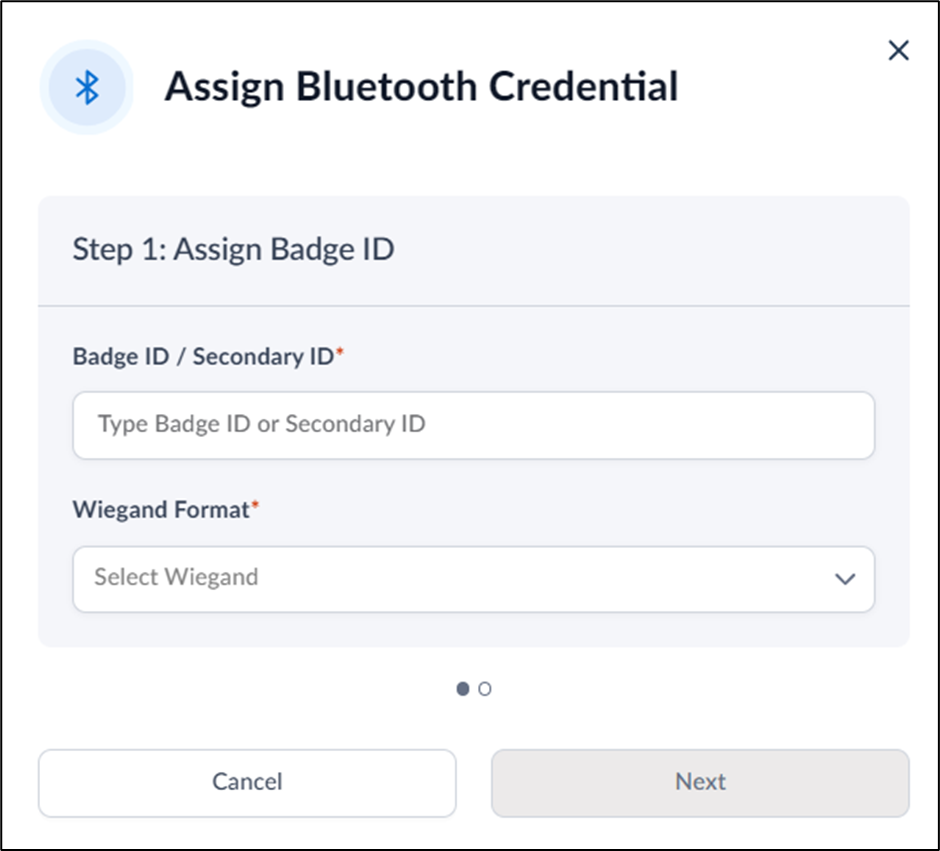

4. On the pop-up box do the following:
   1. Enter Badge ID / Secondary ID.
   2. Select weigand format from Wiegand Format drop-down list.

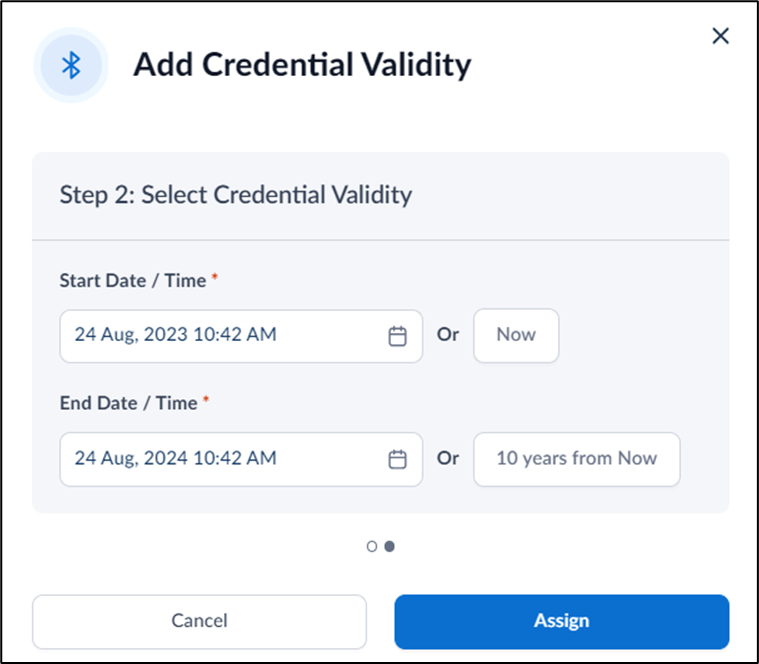

   3. Click Next. The Add Credential Validity screen is displayed.
   4. Select Start Date / Time and End Date/Time from the calendar.

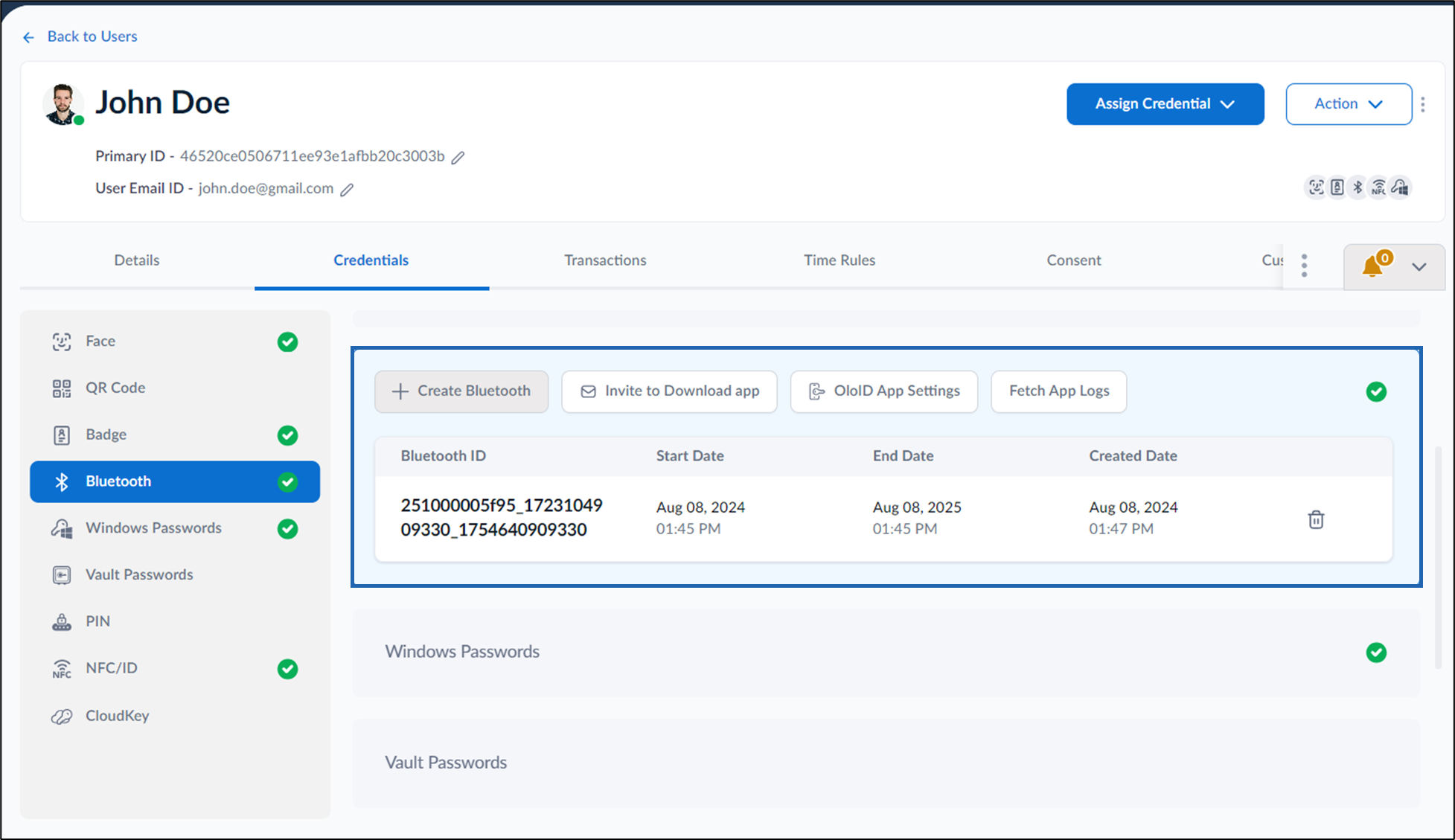

      Note:You can click Now to set the current date and time. The end date is automatically set to 1 year from the current date. You can also click 10 years from Now to set the End Date/Time to 10 years from the current date/time. 5. Click Assign. The Bluetooth ID is created and listed on the Bluetooth tab.

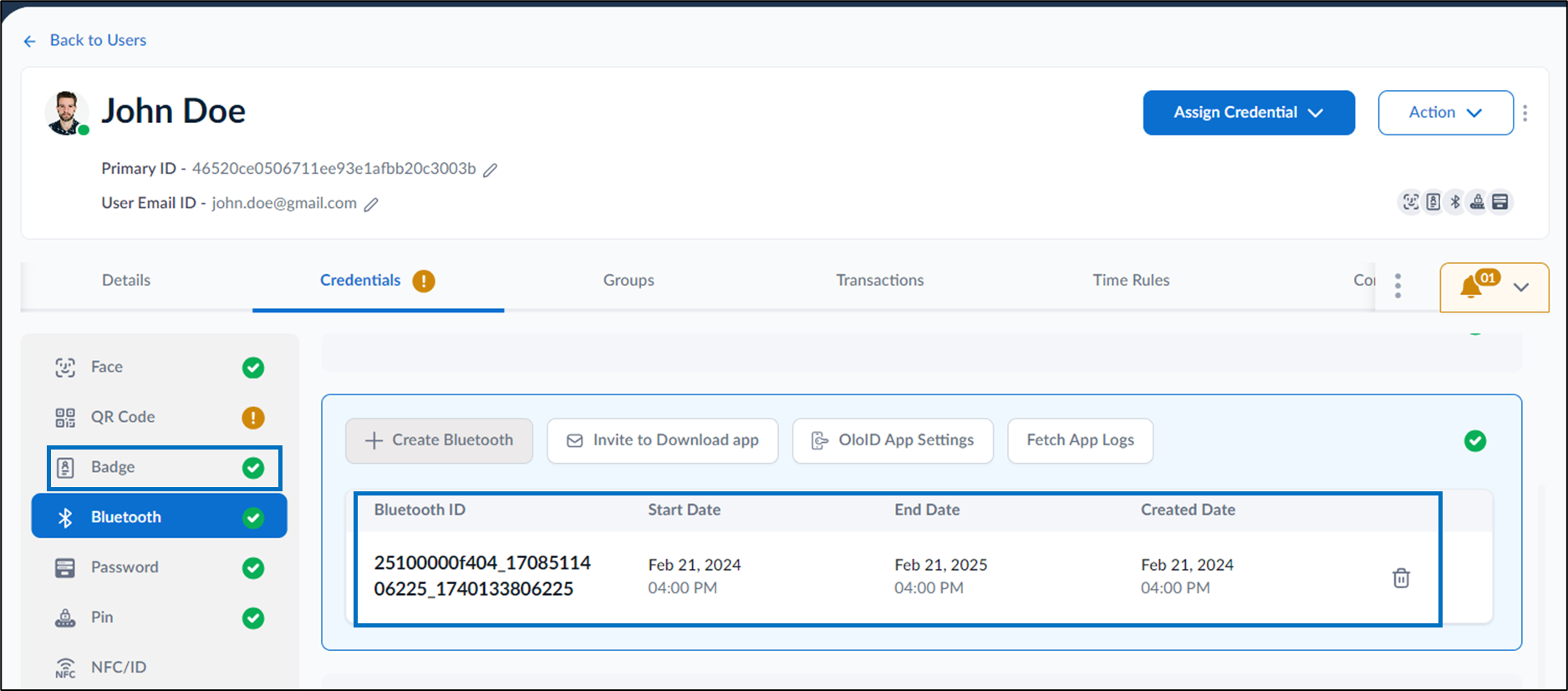

      Note: The Badge ID is also assigned and listed on the Badge tab.
