Tenant Admin Portal - How to Configure OIDC - Okta IDP Profile

​

Introduction

This document explains how to configure an OIDC - Okta Identity Provider (IDP) profile in the Tenant Admin Portal.

​

Prerequisites

• You must have admin access to the Tenant Admin Portal.
• Ensure that the Webkey application is created. To create Webkey application, refer How to create and configure WebKey Application in Tenant Admin Portal.
• You must configure OKTA IDP and generate the required SSO configuration details in the PingOne Administrator Console. For instructions, see How to Create and Configure Okta (OIDC) as an Identity Provider in Okta Admin Console.

​

Steps to configure OIDC-Okta IDP Profile

1. Log in to the Tenant Admin Portal.

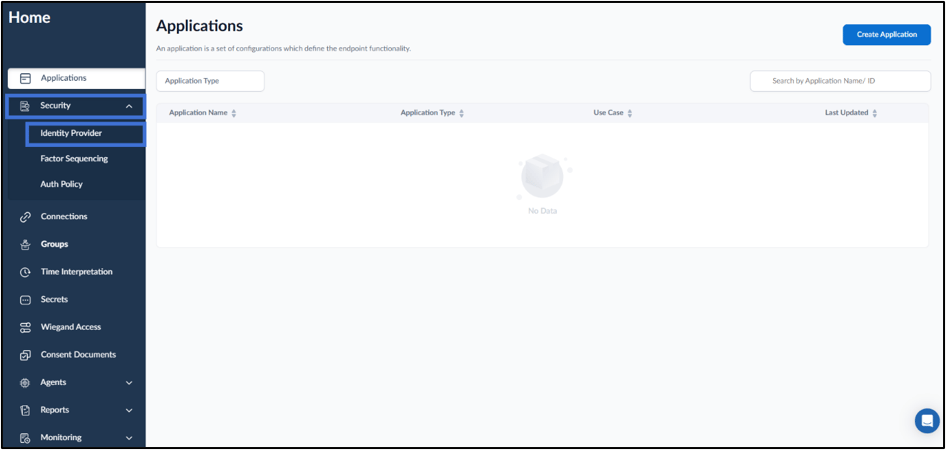

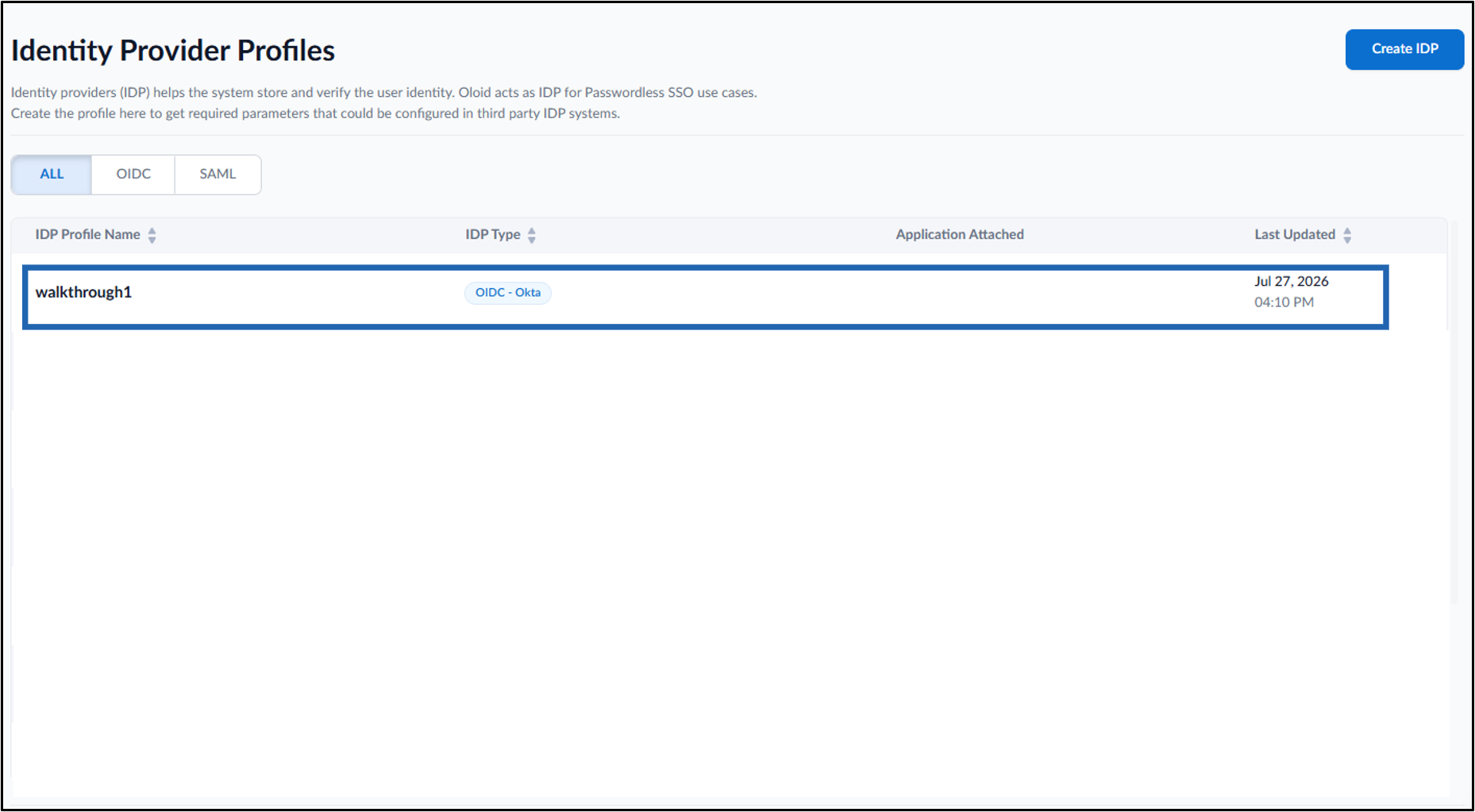

2. On the Applications page, click Security > Identity Provider. The Identity Provider Profiles page is displayed.
3. Click the IDP application. The IDP application details page is displayed.
4. Do the following:
   1. Configure Details tab
   2. Integrate Oloid Metadata tab
   3. Configure IDP Settings tab
   4. Configure Claims Tab The IDP Profile is configured successfully.

​

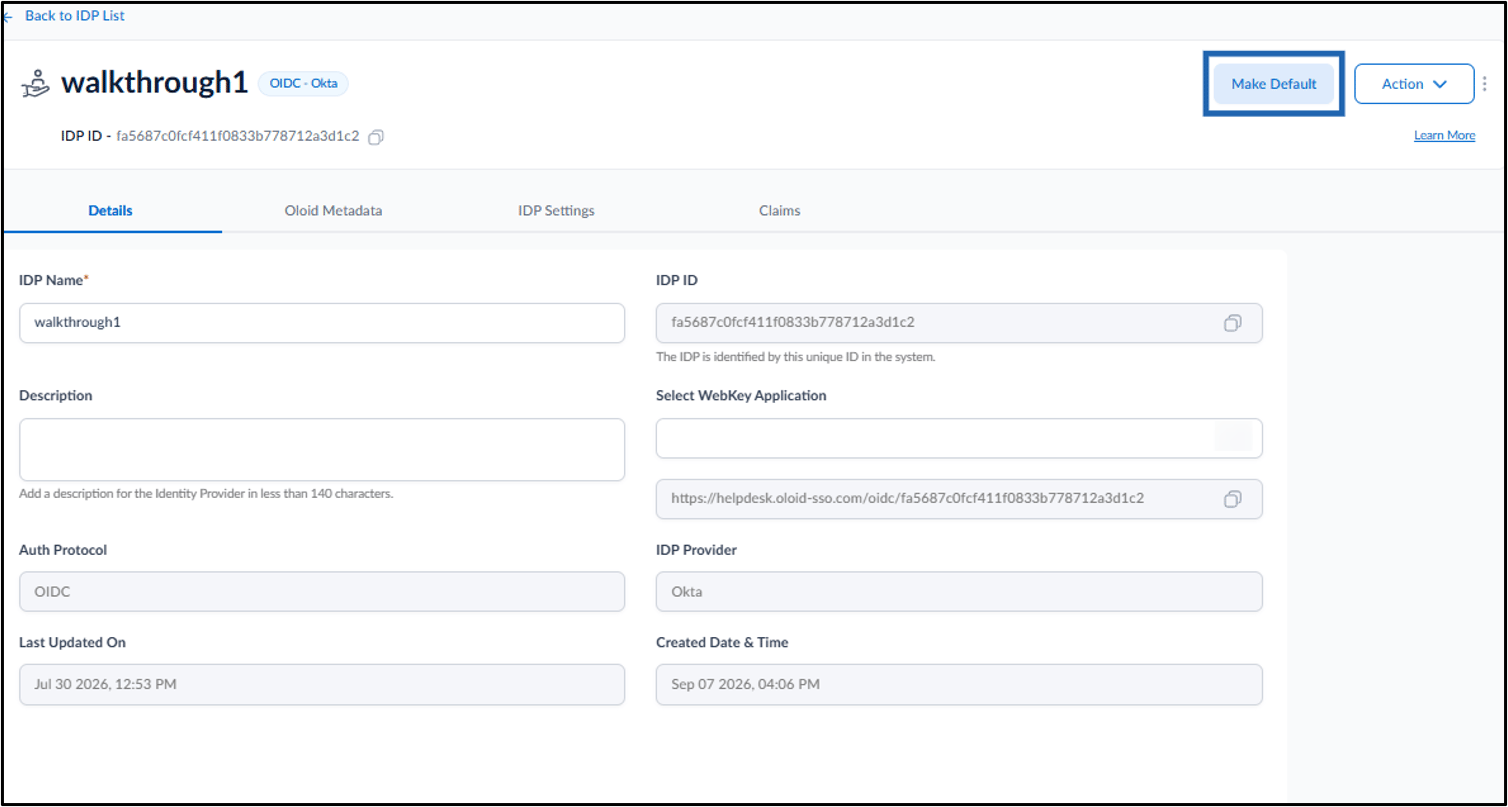

Configure Details Tab

The Details tab is used to view and manage the basic information such as IDP Name, IDP Description, etc. for the identity provider configured in the Tenant Admin Portal. To configure the Details tab, do the following:

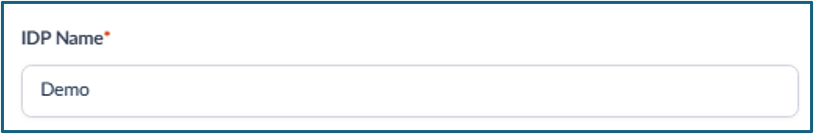

1. Edit the IDP Profile Name. (Optional)

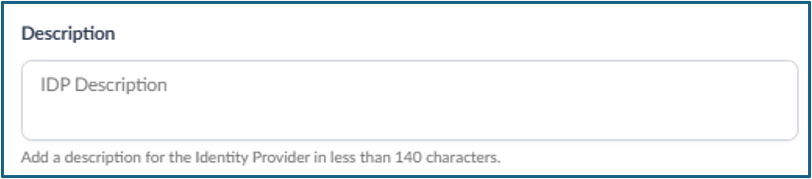

2. Enter Description. (optional)
3. Do one of the following:

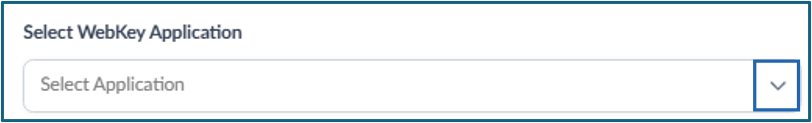

   1. Select the required WebKey application from the Select WebKey Application dropdown list. (OR)
   2. Click Make Default to set this IDP as the default. (Optional)
      Note: The Make Default button is enabled only when more than one IDP is added in the Tenant Admin Portal.

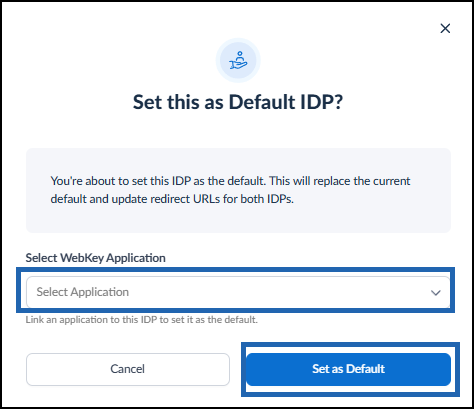

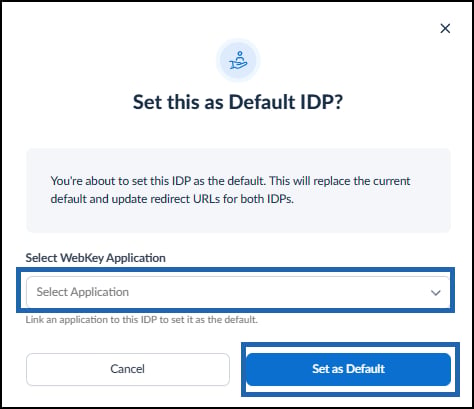

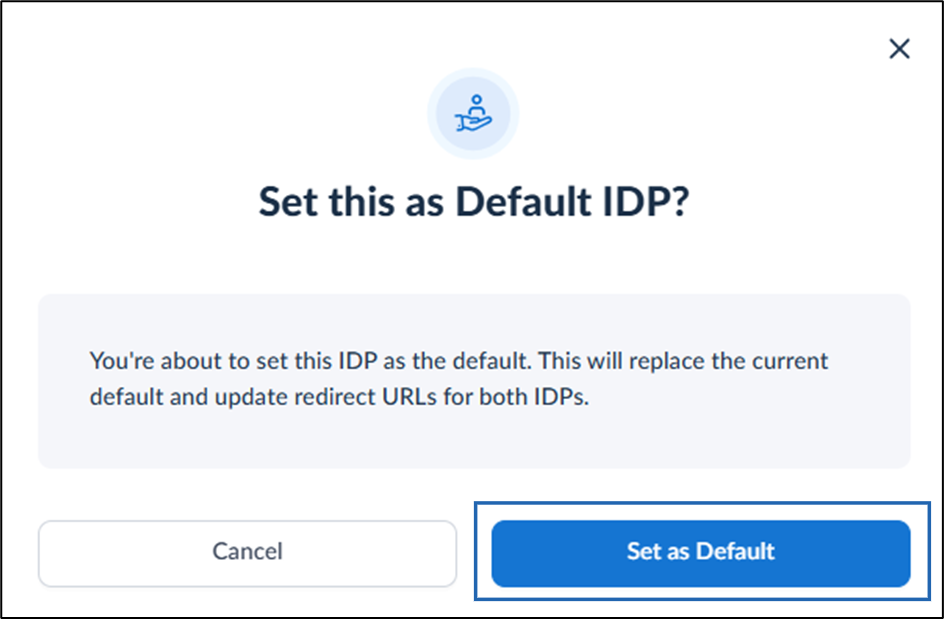

      The Set this as Default IDP pop-up box is displayed.
      1. Select the Webkey Application.
      2. Select Set as Default. The WebKey application is set as the default, and the application is linked to this IDP.

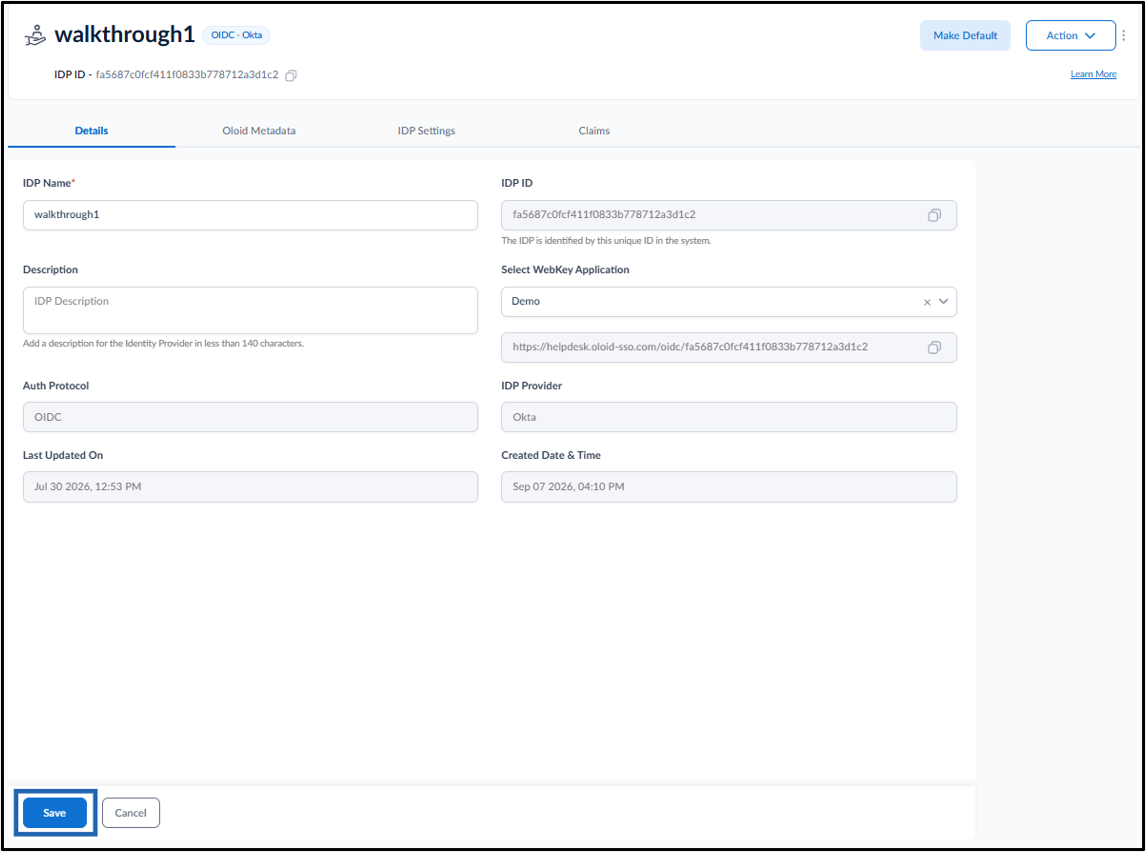

4. Click Save.
   Note: If another IDP is currently set as default, it will be replaced upon confirmation.
   • To make IdP as default, click Make Default. The confirmation box is displayed.
   • Click Set as Default to designate the preferred IDP as default.

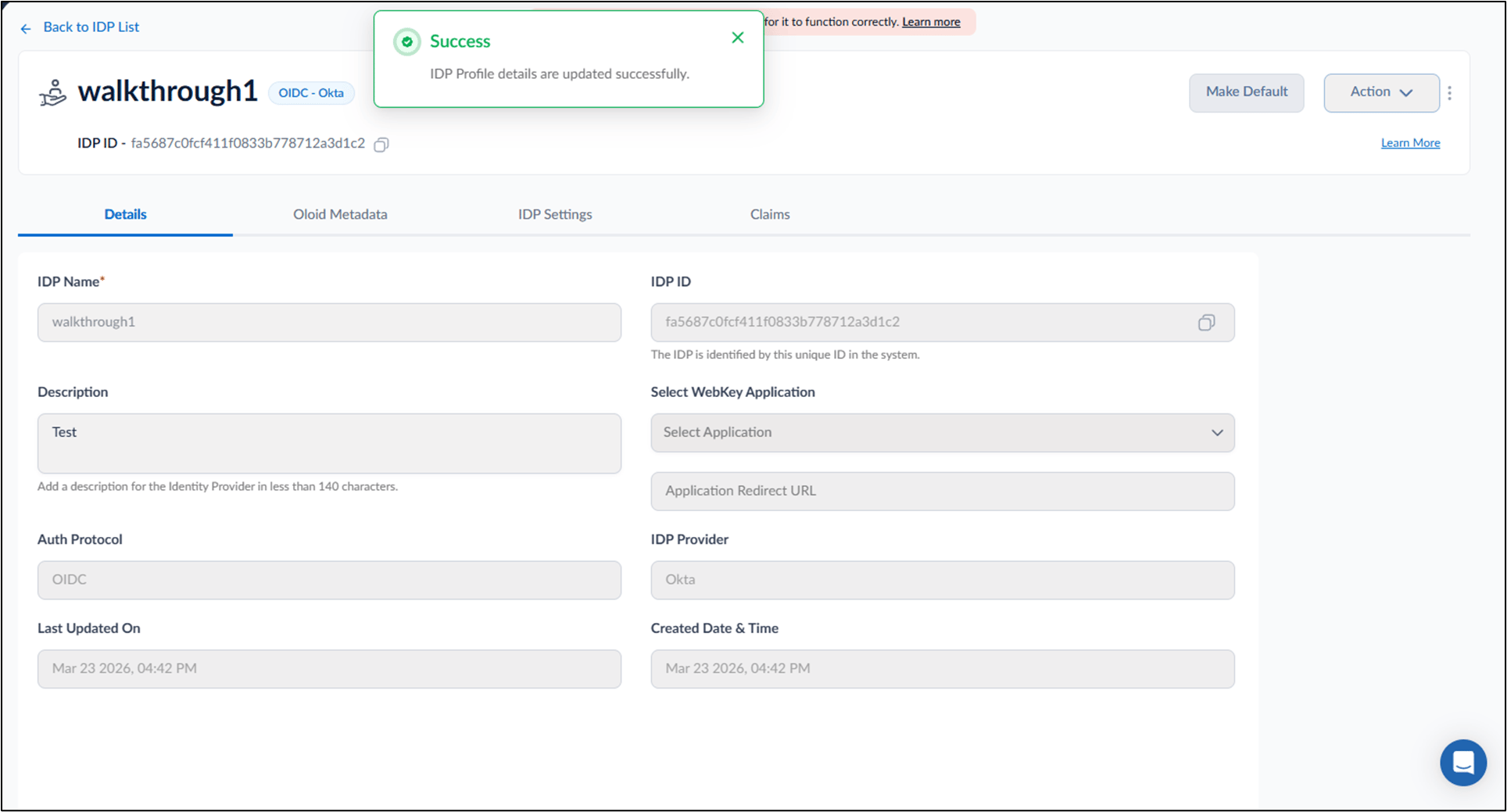

The Details tab is configured successfully.

​

Integrate Oloid Metadata Tab

The Metadata tab is used to provide the required information to configure OKTA settings and enable OKTA based authentication between the identity provider and the Tenant Admin Portal.

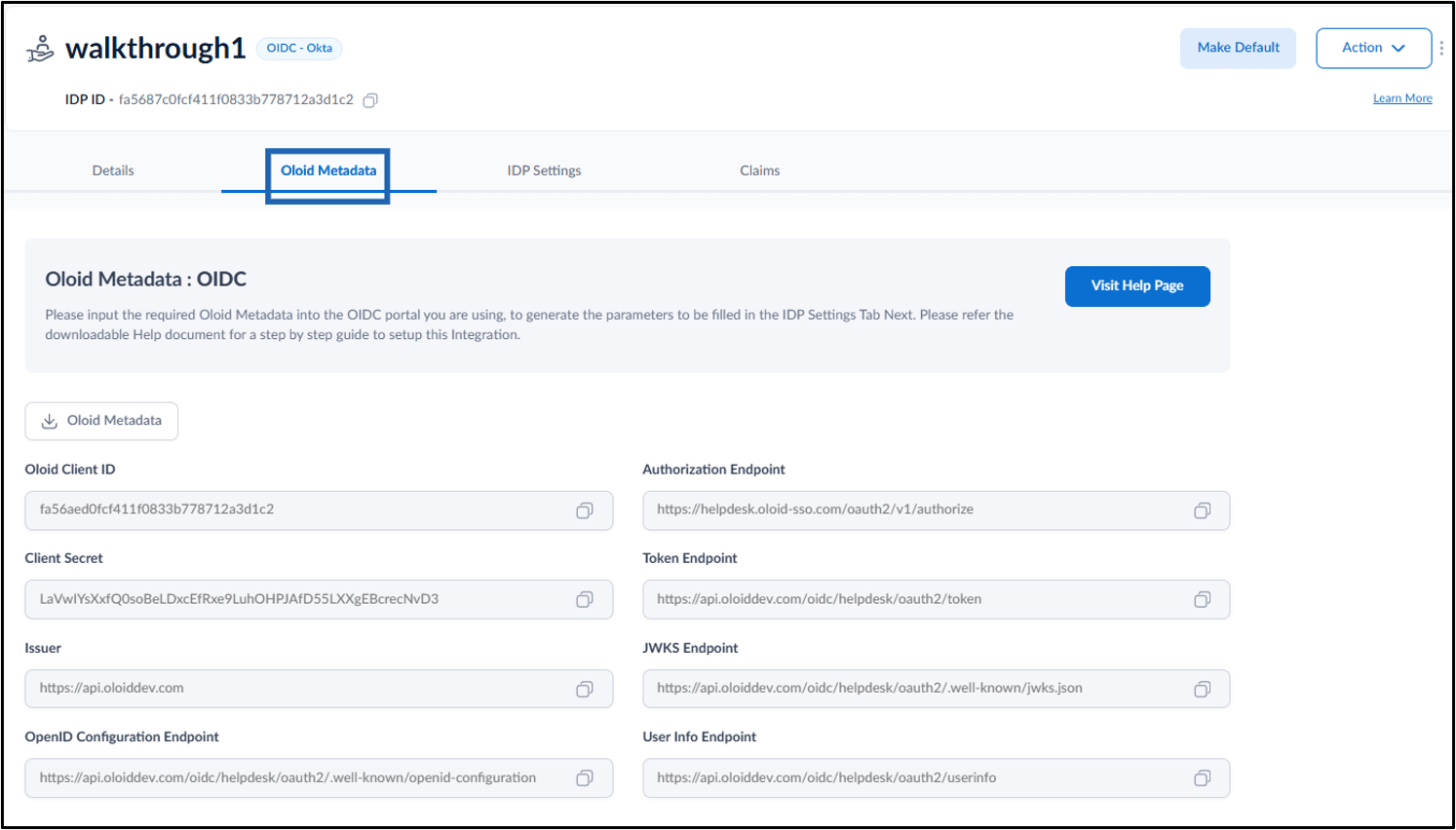

1. Click Oloid Metadata. The Oloid Metadata tab is displayed.

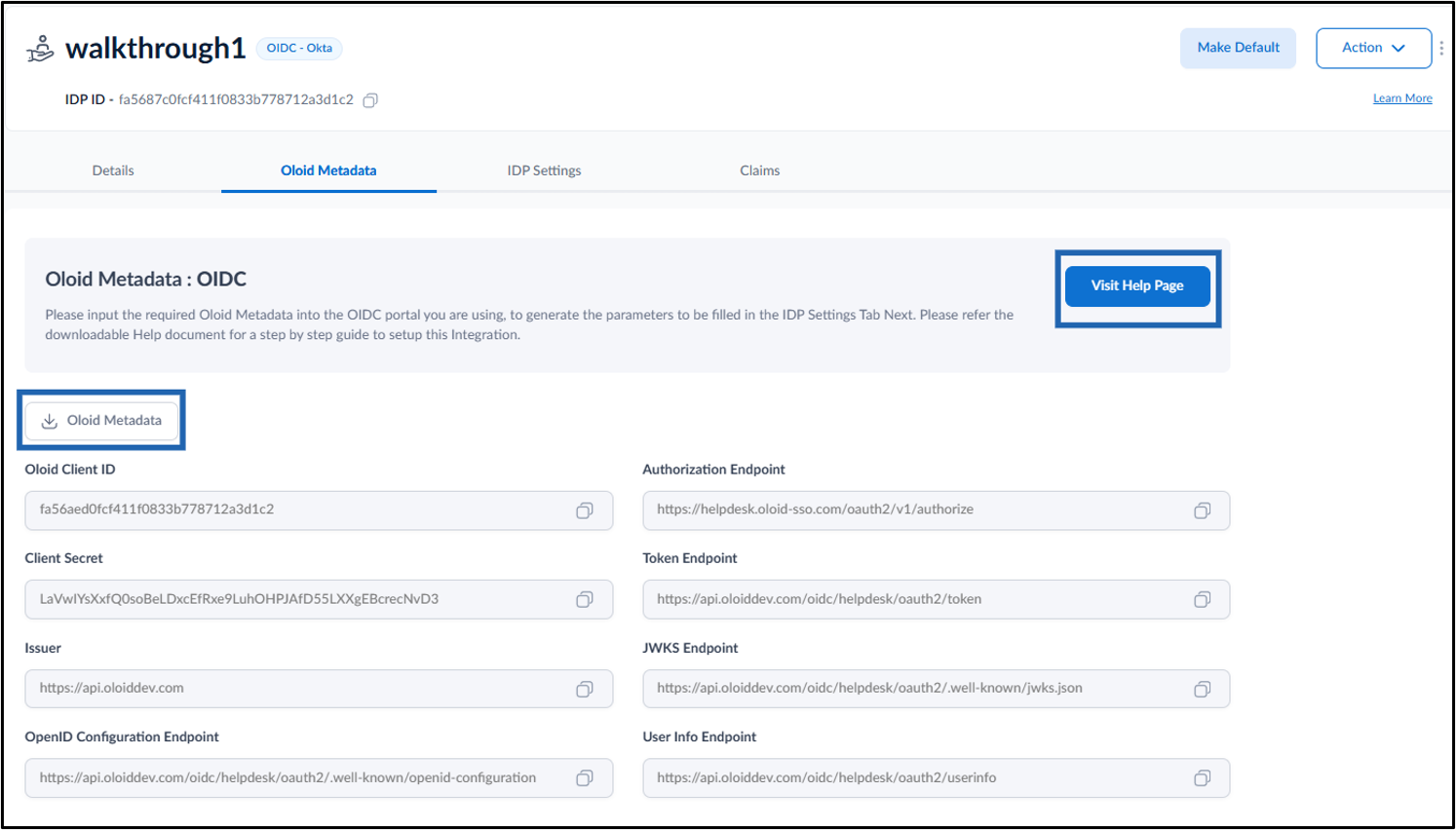

2. Click Visit help page for the document to configure Okta settings for SSO login.
3. Download Oloid Metadata: Download the oloid metadata certificate and upload it to the IDP Signature Certificate field.

​

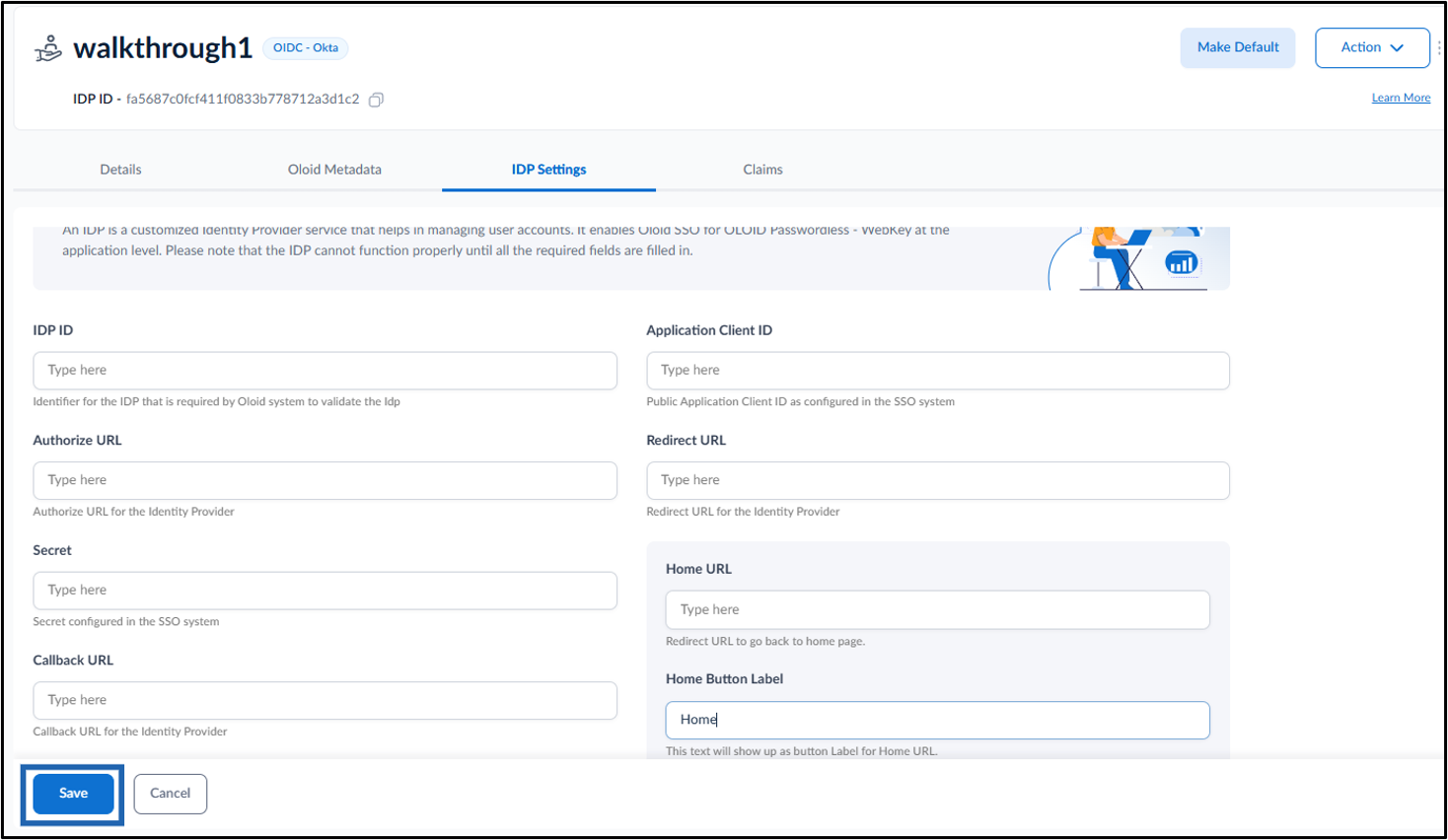

Configure IDP Settings Tab

The IDP Settings tab is used to configure and upload the required OKTA details to enable authentication between the identity provider and Tenant Admin Portal. To configure the IDP settings tab, do the following:

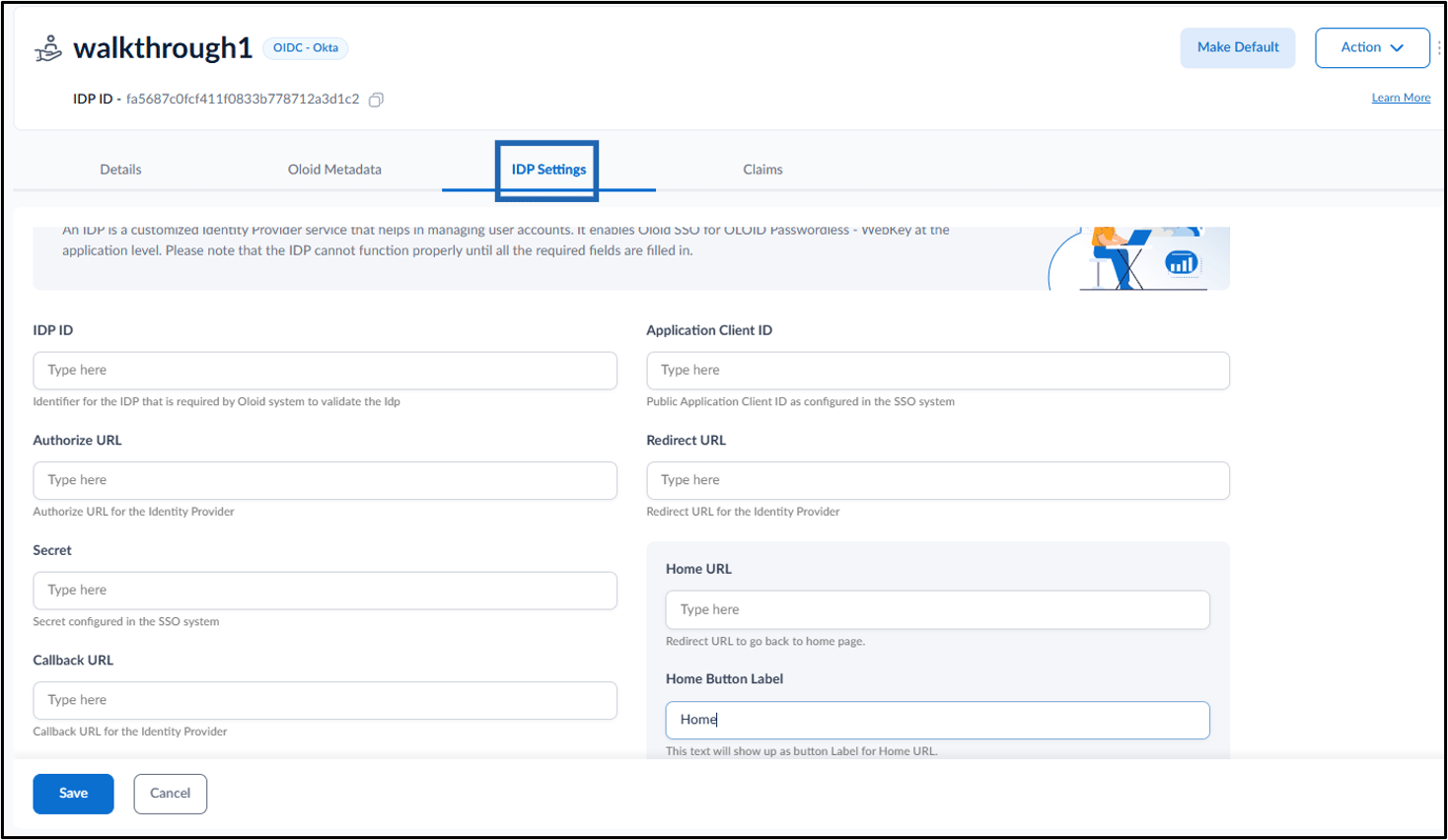

1. Click the IDP Settings tab. The IDP Settings page is displayed.
2. Do the following:

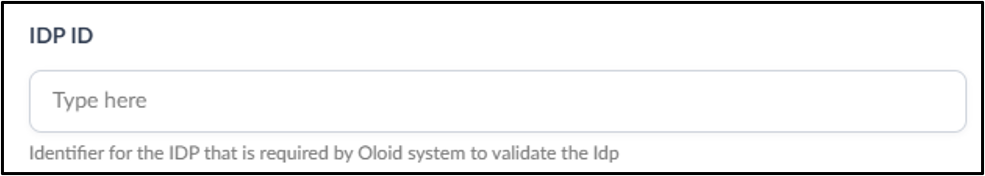

   1. Enter IDP ID.

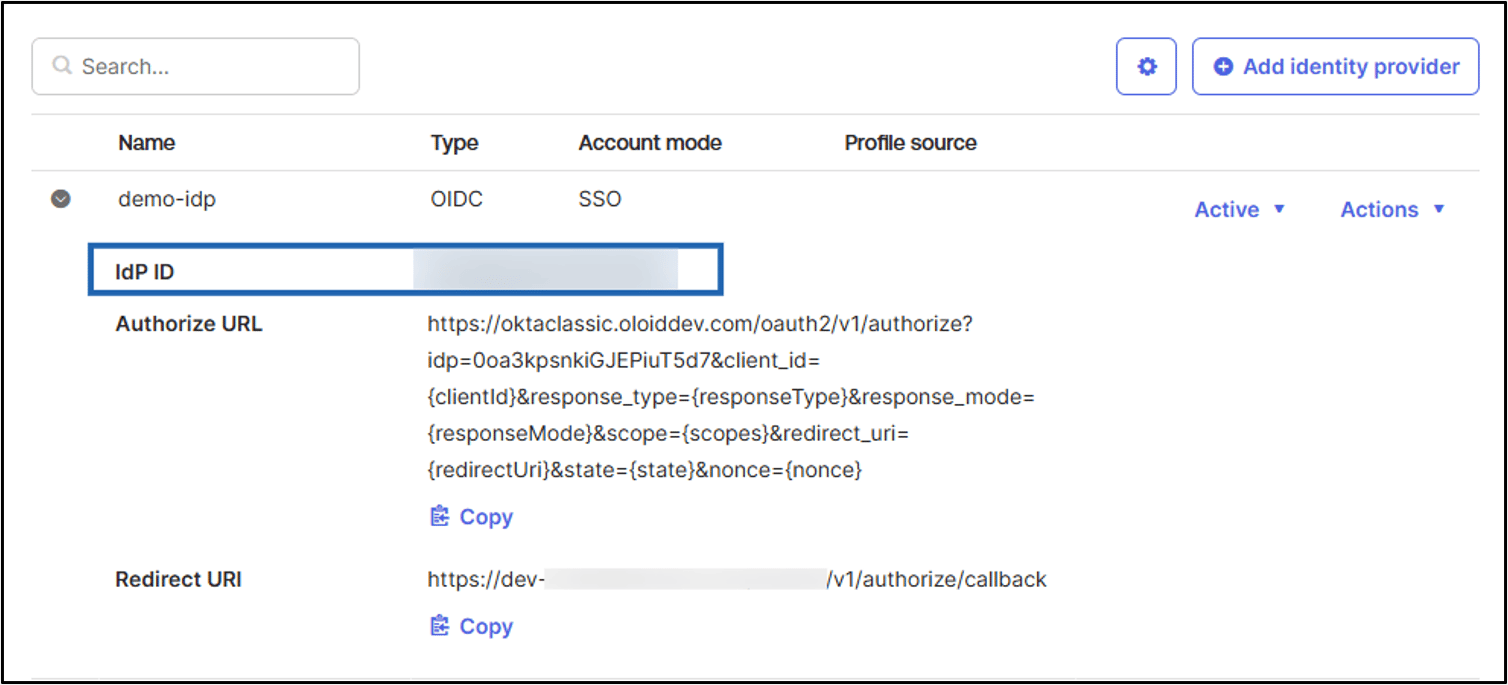

      Note: You can find the IDP ID from your OKTA Admin Console under Security > Identity Providers > select preferred Identity Provider from the list.

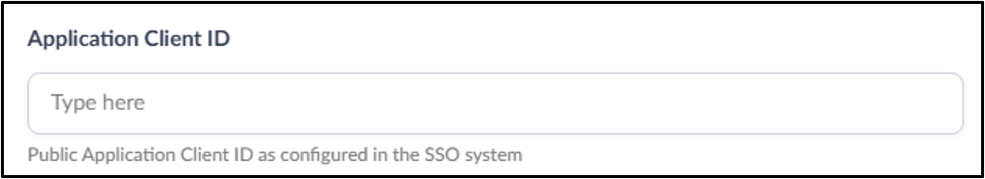

   2. Enter Application Client ID.

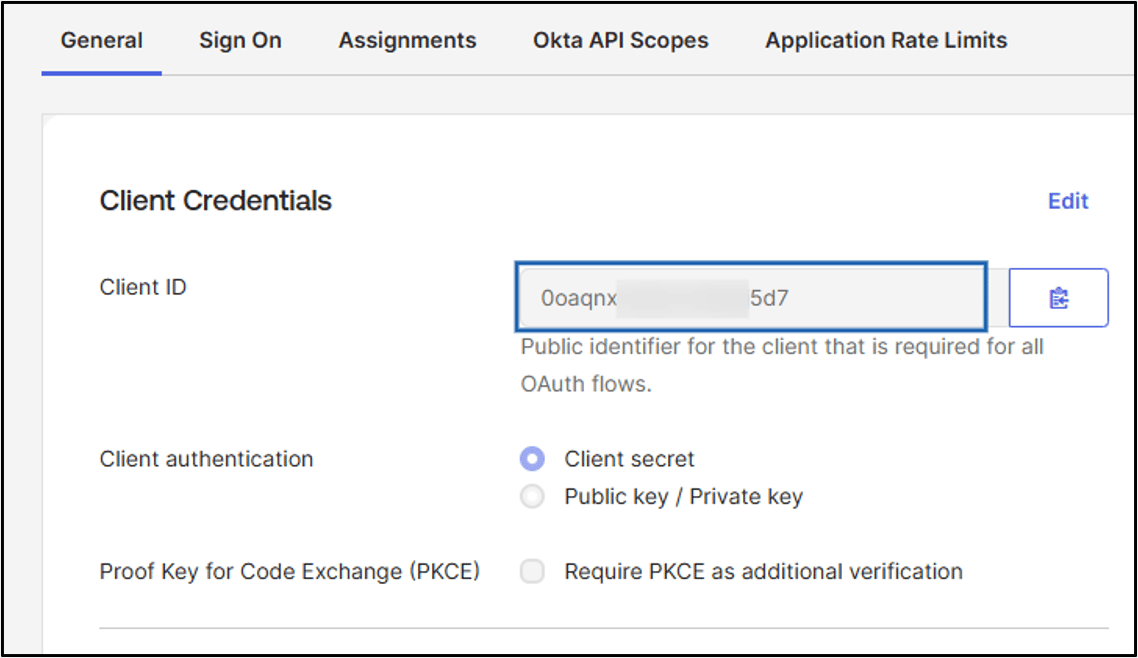

      Note: You can find the Application Client ID from your OKTA Admin Console under Applications > Applications > select preferred application > General tab > Client Credentials section.

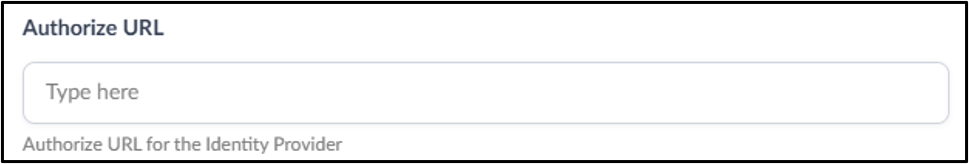

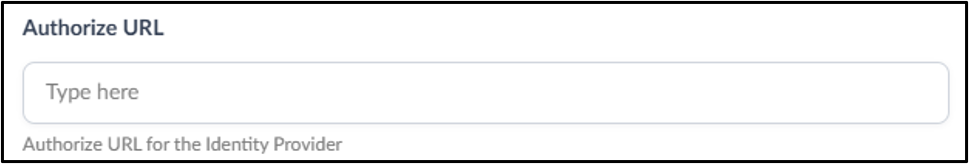

   3. Enter Authorize URL.
      Note: Enter https://{user-id}.okta.com/ in the Authorize URL field.

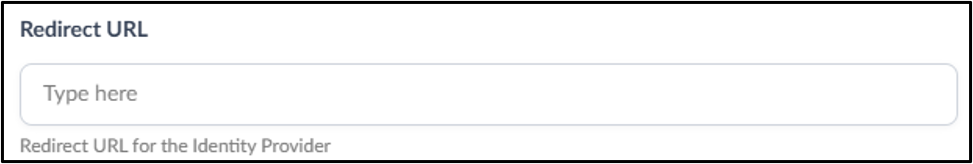

   4. Enter Redirect URL.
      Note: Enter https://{user-id}.okta.com/ in the Redirect URL field.

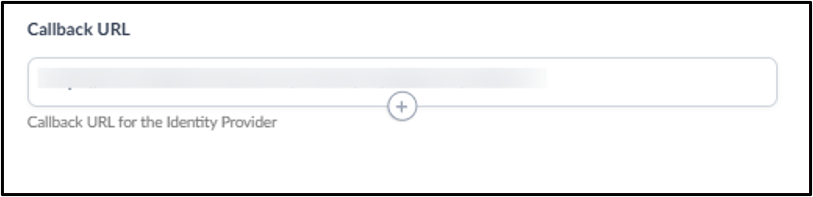

   5. Enter Callback URL.
      Note: To add multiple Callback URLs, click the + icon.

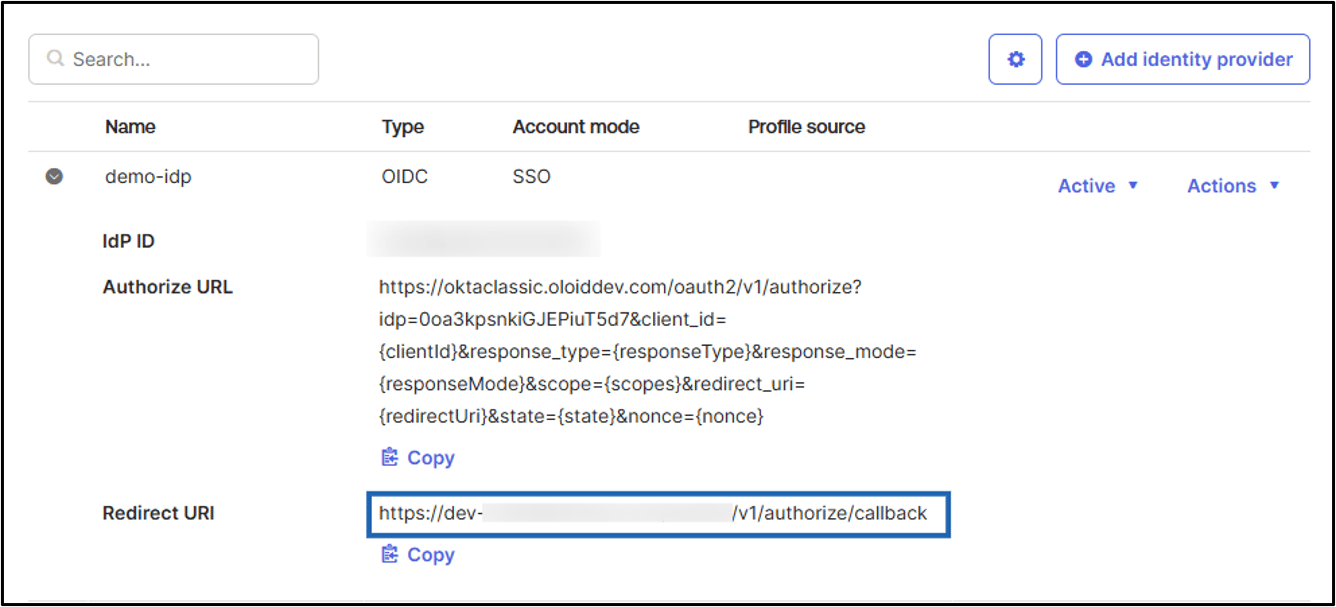

      Note: You can find the Callback URL as Redirect URL from your OKTA Admin Console under Security > Identity Providers > select preferred Identity Provider from the list.

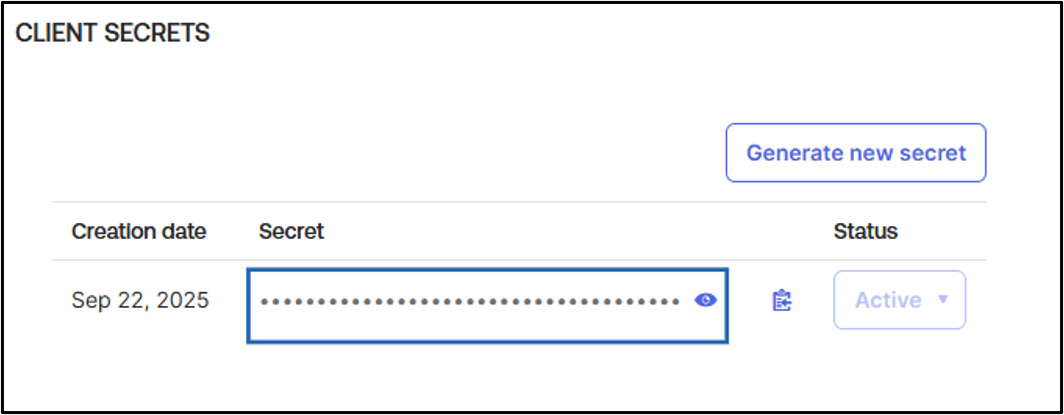

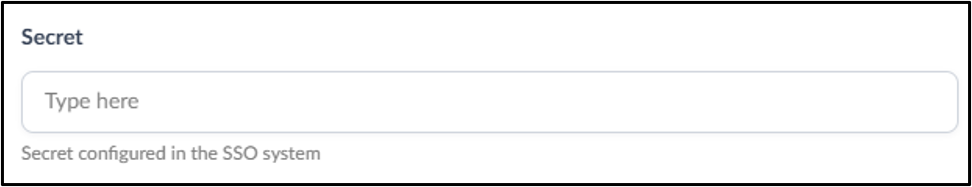

   6. Enter Secret.
      Note: You can find the Secret from your OKTA Admin Console under Applications> Applications > select preferred application > General tab > Client Secret.

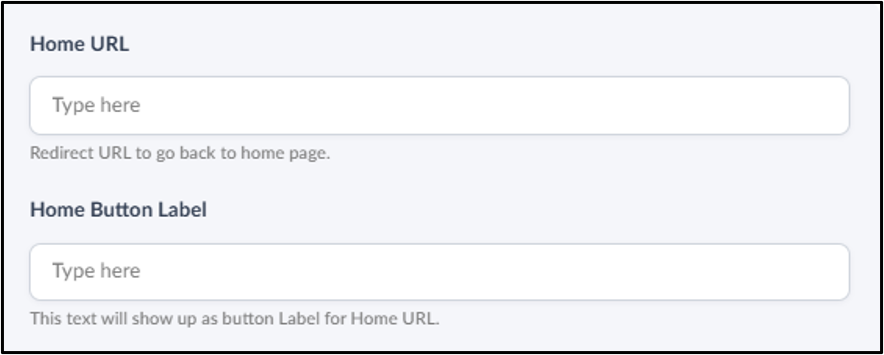

   7. Home URL: Enter the URL of the home page.
   8. Home Label Button: Enter the text displayed on the Home button.
   9. Click Save. The IDP settings tab is configured successfully.

​

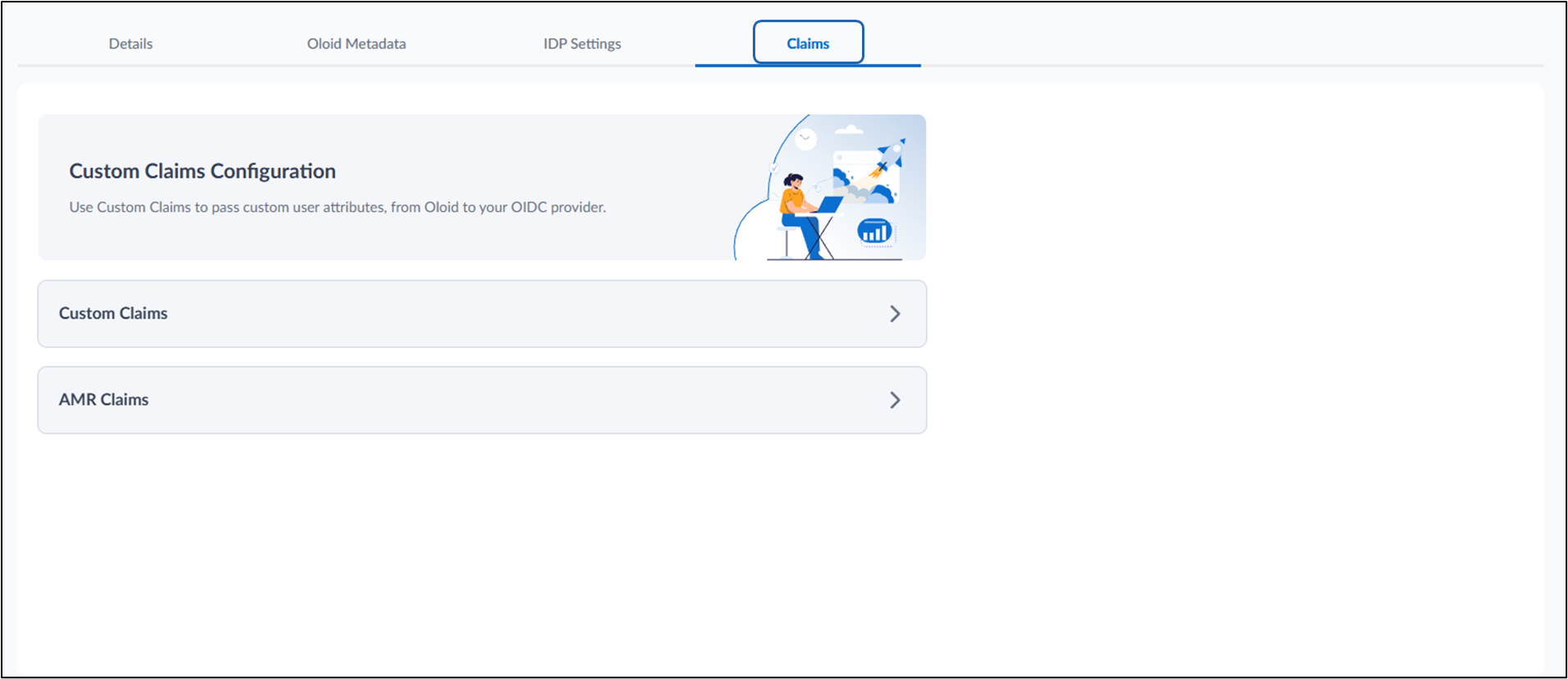

Configure Claims Tab (Optional)

The Claims tab is used to configure custom claims that pass user attributes from Oloid to the OIDC provider. Do the following:

• Custom Claims
• Authentication Methods References (AMR) Claims

The Custom Claims tab is configured successfully.

​

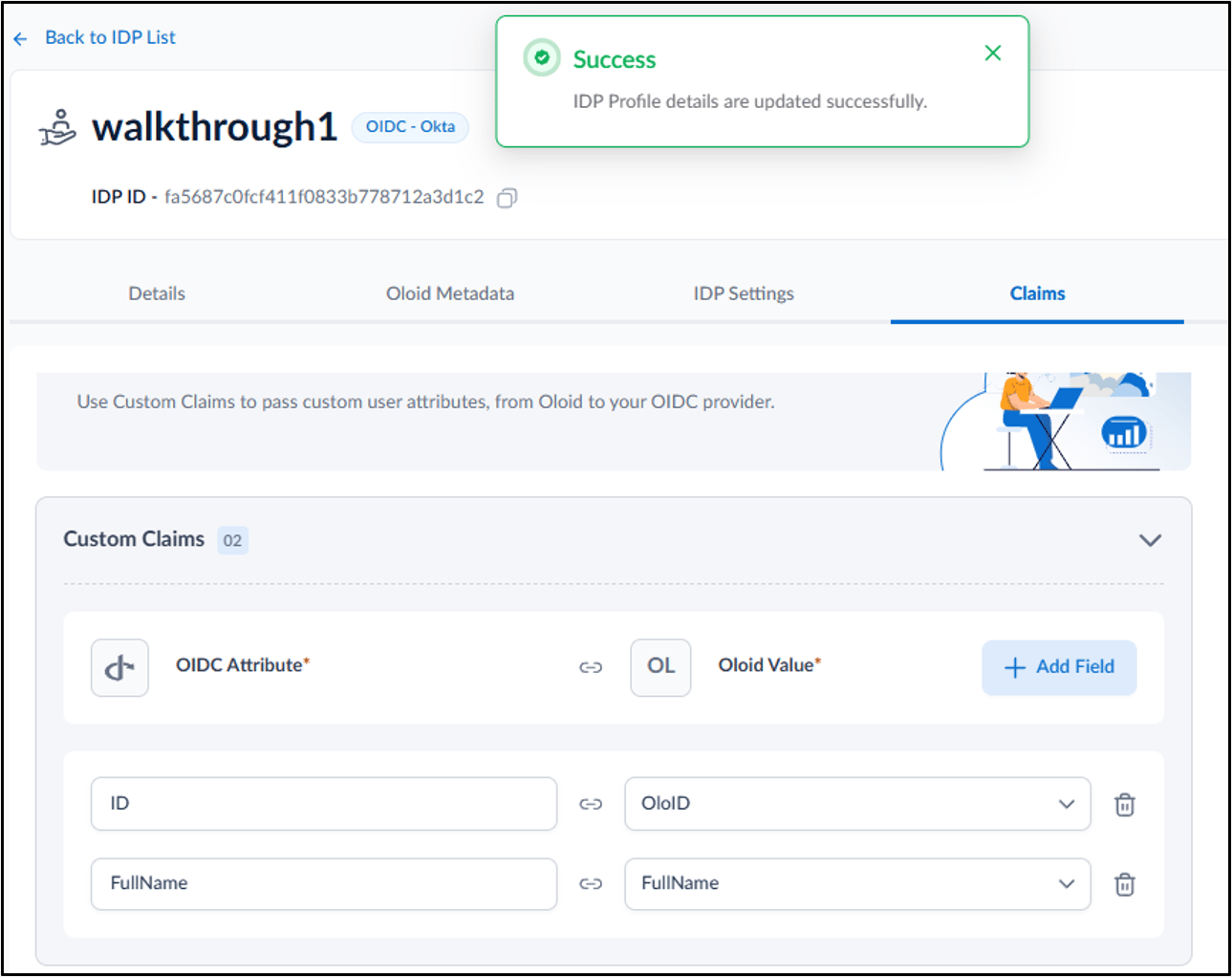

Custom Claims

Custom Claims allow the admin to map Oloid user attributes to OIDC attributes. Do the following:

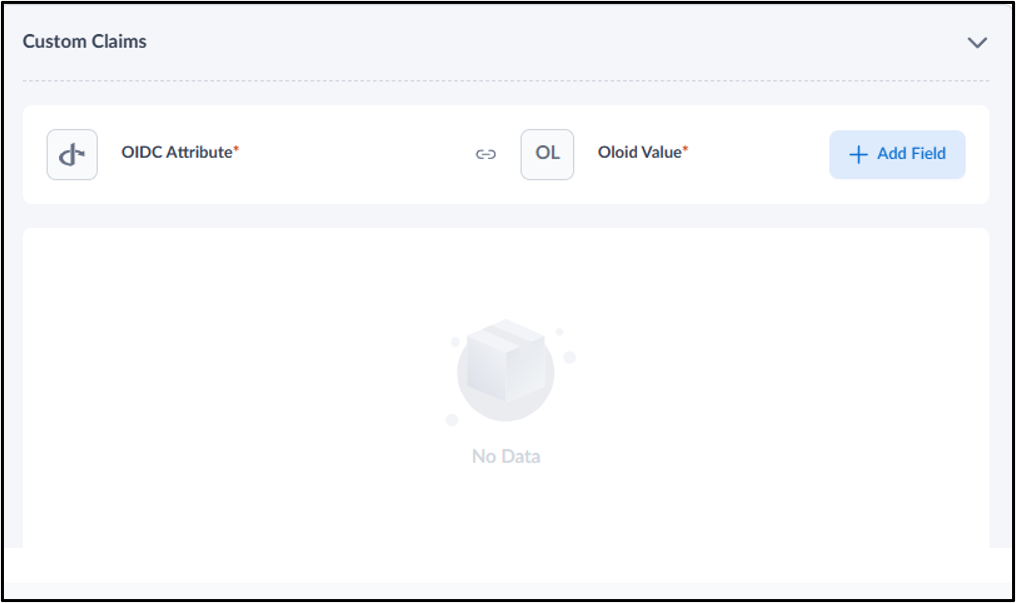

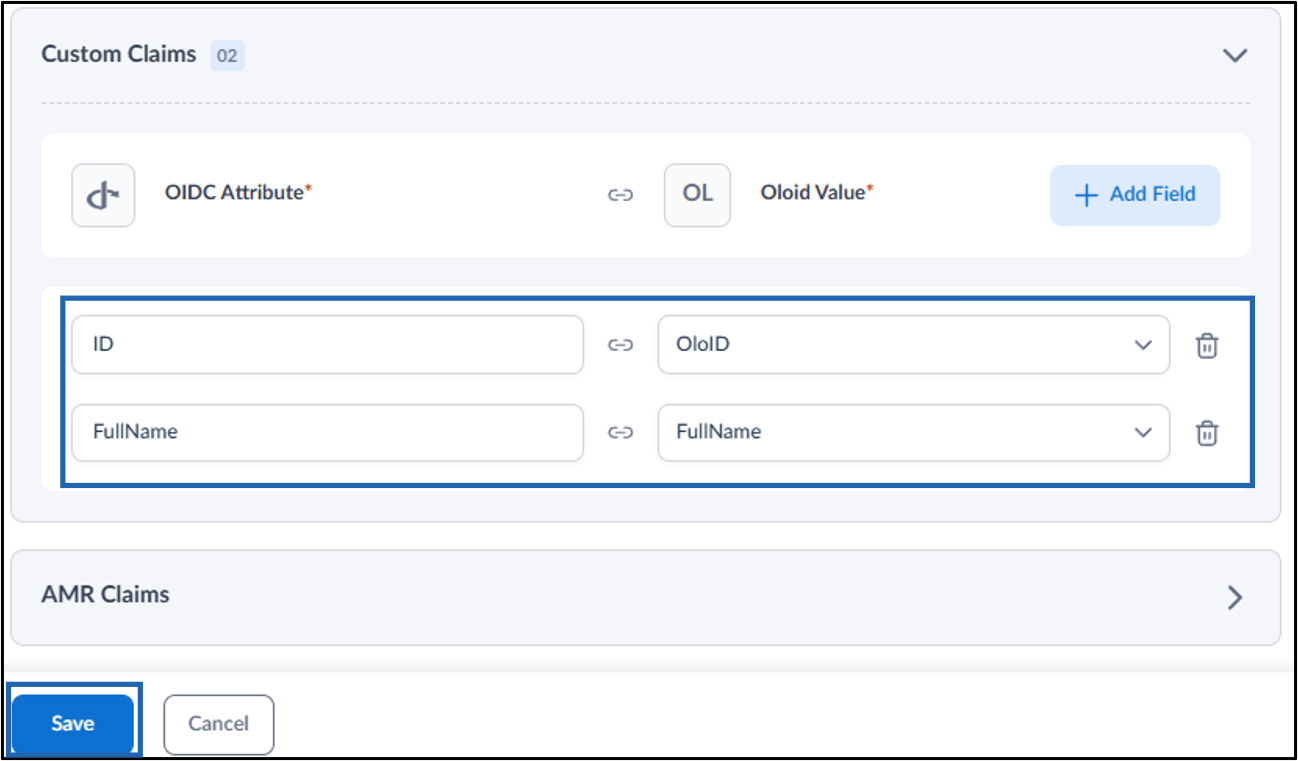

1. In the Custom Claims tab, expand the Custom Claims section. The Custom Claims section is displayed.
2. In the Custom Claims section, click Add Field.
3. In the OIDC Attribute field, enter the OIDC Attribute.
4. Select the Oloid Value from the Oloid Value dropdown.
   Note: Click Add Field to add additional claim.
5. Click Save. The Custom claims are configured successfully.

​

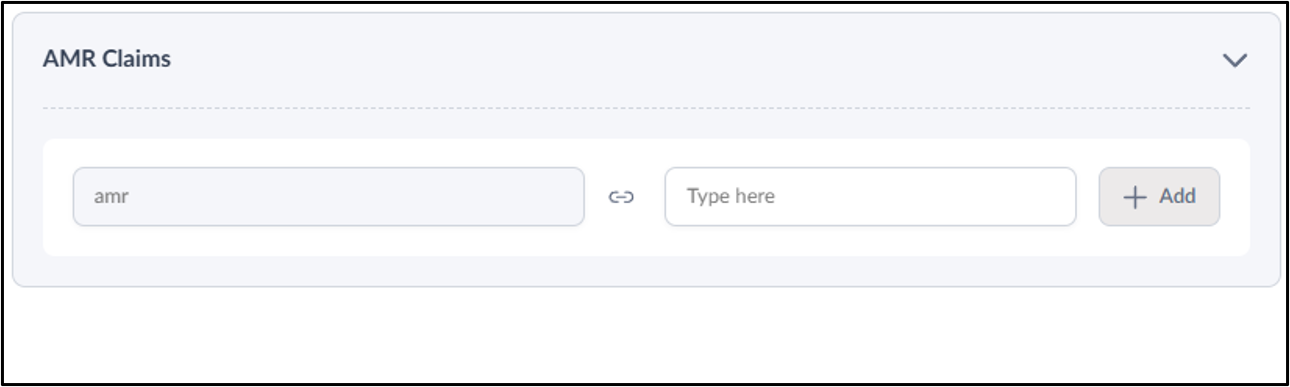

Authentication Methods References (AMR) Claims

AMR Claims indicate how a user was authenticated during the login process.

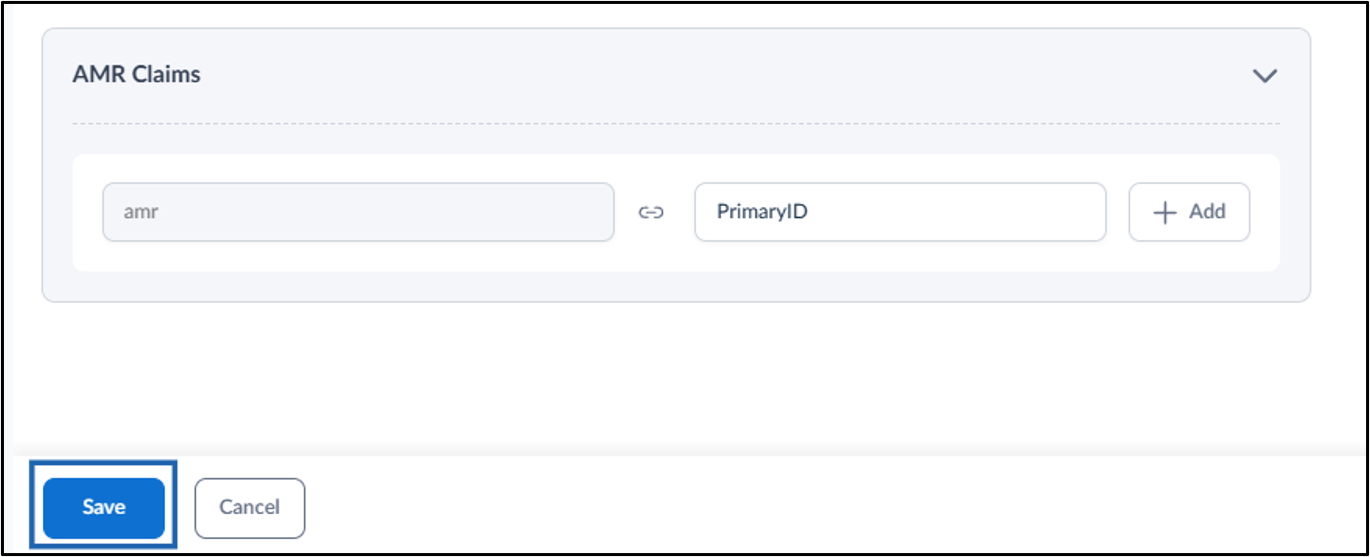

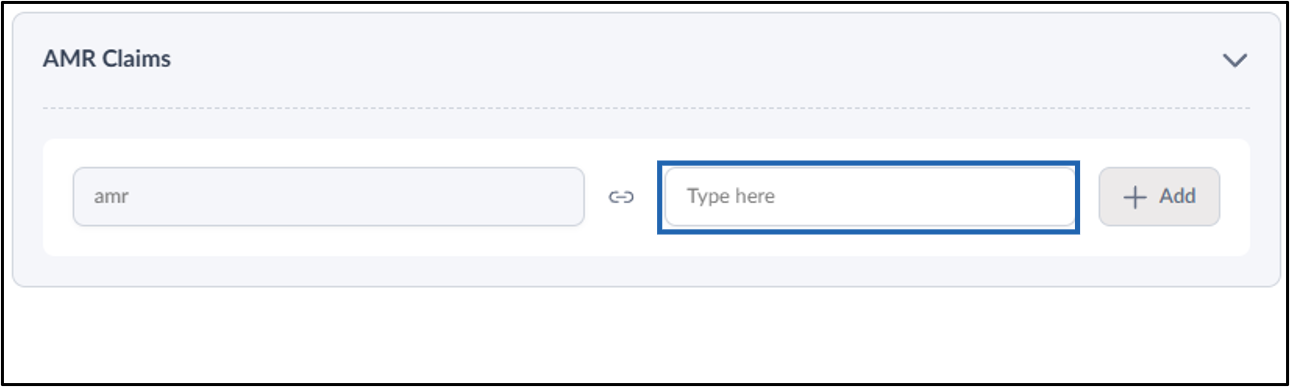

1. In the AMR Claims tab, expand the AMR Claims section. The AMR Claims section is displayed.
2. In the AMR Claims section enter the authentication method value.
   Note: Click Add to add additional AMR claim items.

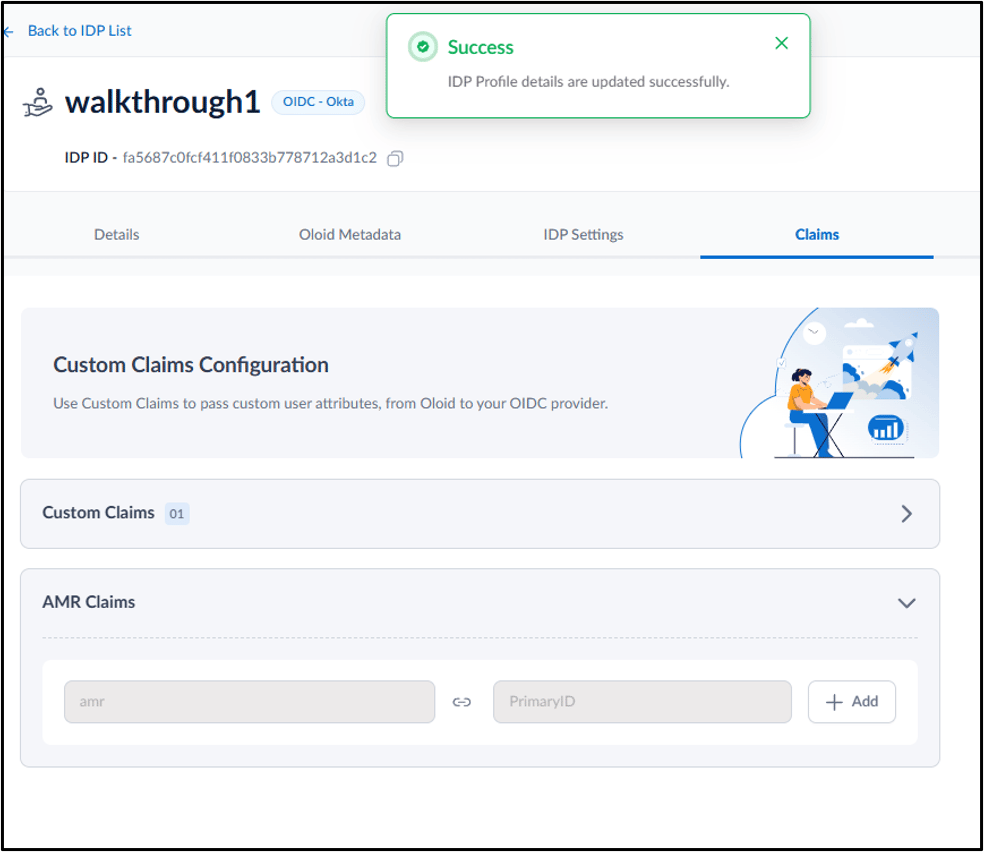

3. Click Save. The AMR section is configured successfully.

​
