Introduction

The Tenant Admin Portal allows administrators to add a PC/SC Badge Input-enabled Connection to an Application. This ensures that the Application can authenticate users through PC/SC-compatible badge readers (e.g., HID cards). Adding the created PC/SC-enabled Connection to the Application enables secure and consistent badge-based authentication.

​
Prerequisite

PC/SC Badge input enabled connection must be created. For more details refer How to create PC/SC Badge Input enabled Connections in the Tenant Admin Portal.

​
Steps to add PC/SC Badge input enabled Connection

  1. Log in to the Tenant Admin Portal.

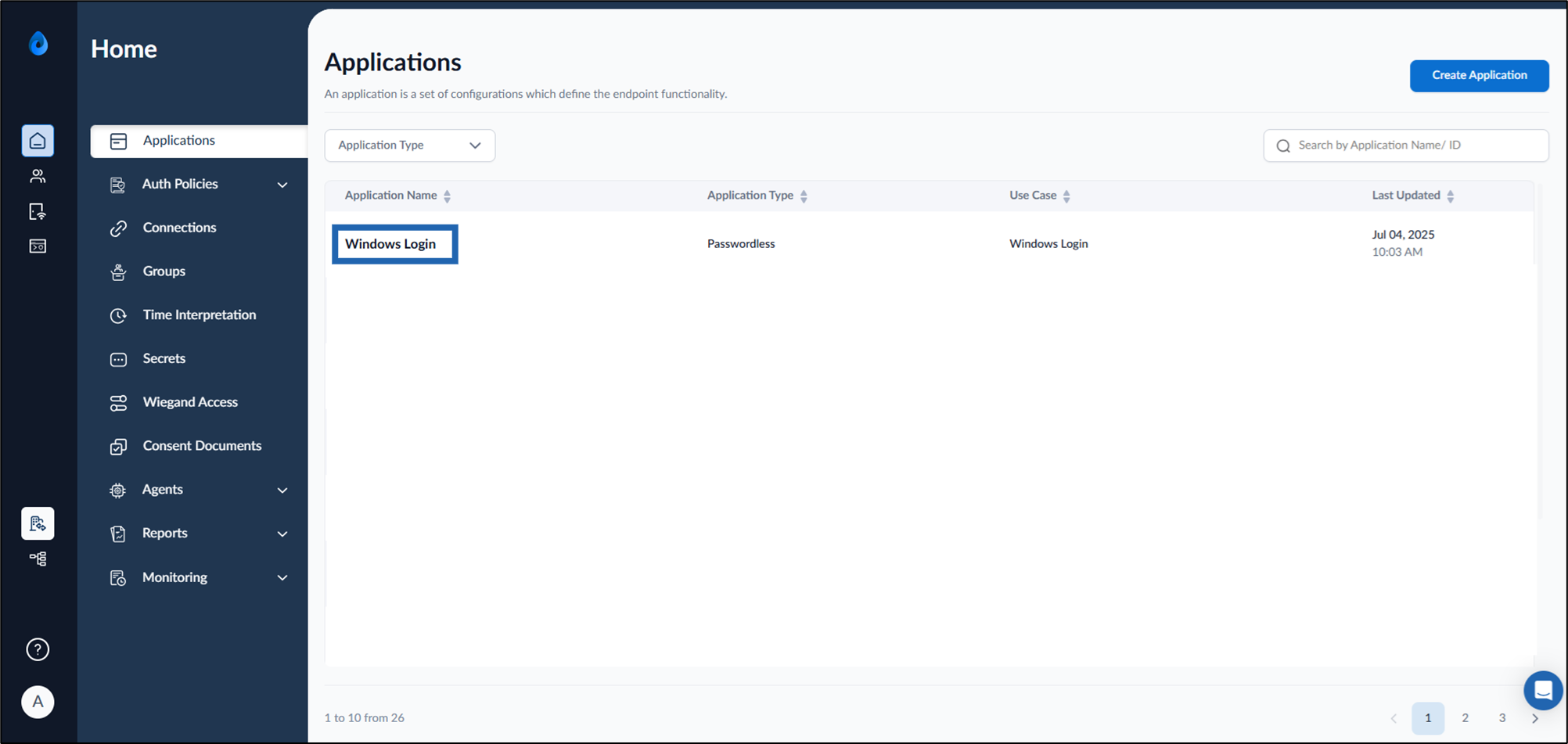

  2. On the home page of the portal, click Application name to edit. How to add Personal Computer/Smart Card... - screenshot 1 The Application details page is displayed.

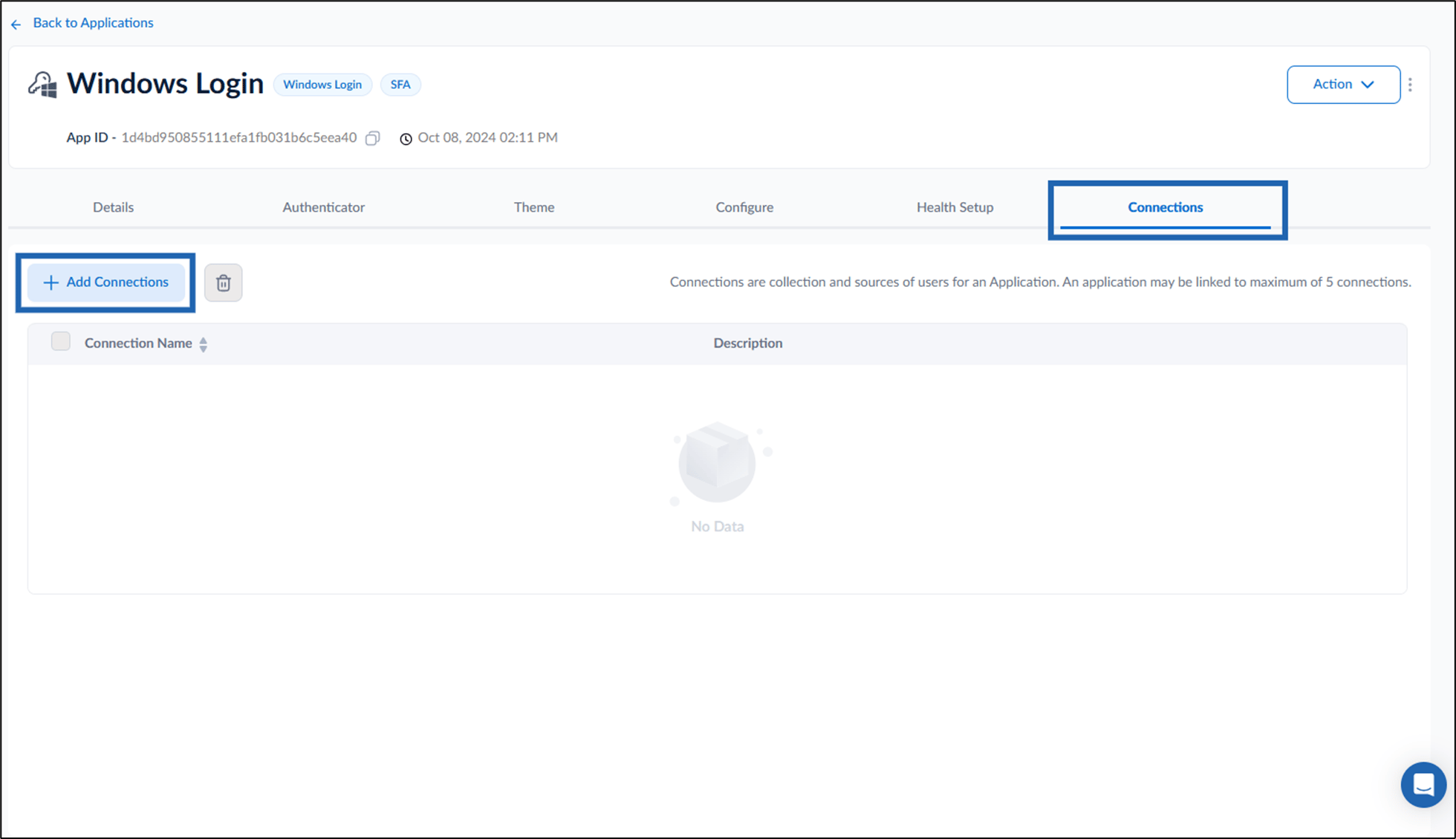

  3. Go to Connection tab > select Add Connections.
    Note: Before adding a PC/SC Badge input enabled connection, ensure that the connection is already created and listed in the application list. To create a PC/SC Badge input enabled connection, refer to this link How to create PC/SC Badge Input enabled Connections in the Tenant Admin Portal.

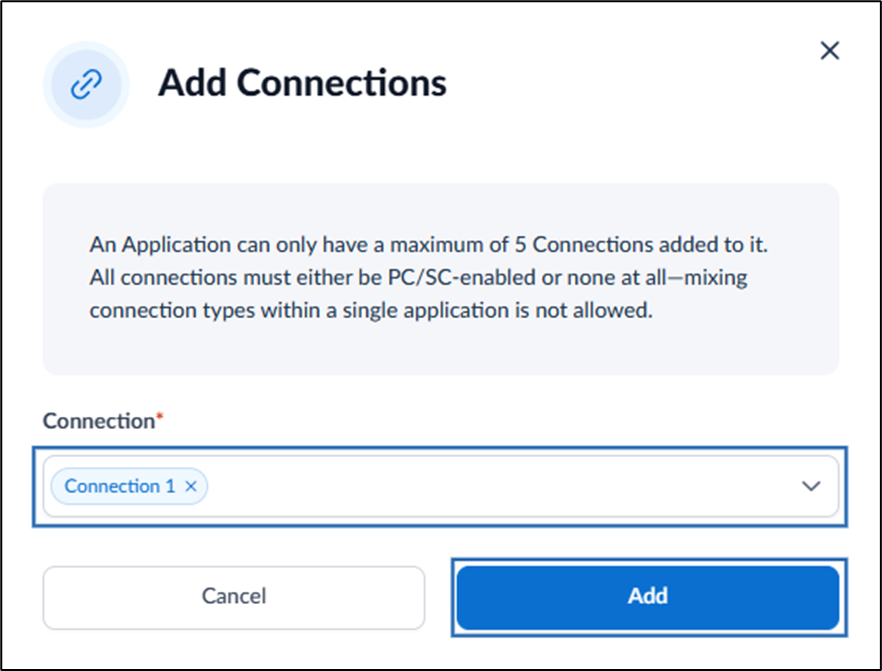

    How to add Personal Computer/Smart Card... - screenshot 2 The Add Connections pop-up box is displayed.
  4. On the pop-up box, do the following:
    1. Select the preferred PC/SC Badge input enabled connection from Connection dropdown menu.
    2. Click Add.
      Note: An application can have a maximum of 5 Connections. All connections associated with a single application must be of the same type either all PC/SC Badge input enabled or all non-PC/SC Badge input enabled. Combining different connection types within the same application is not supported.

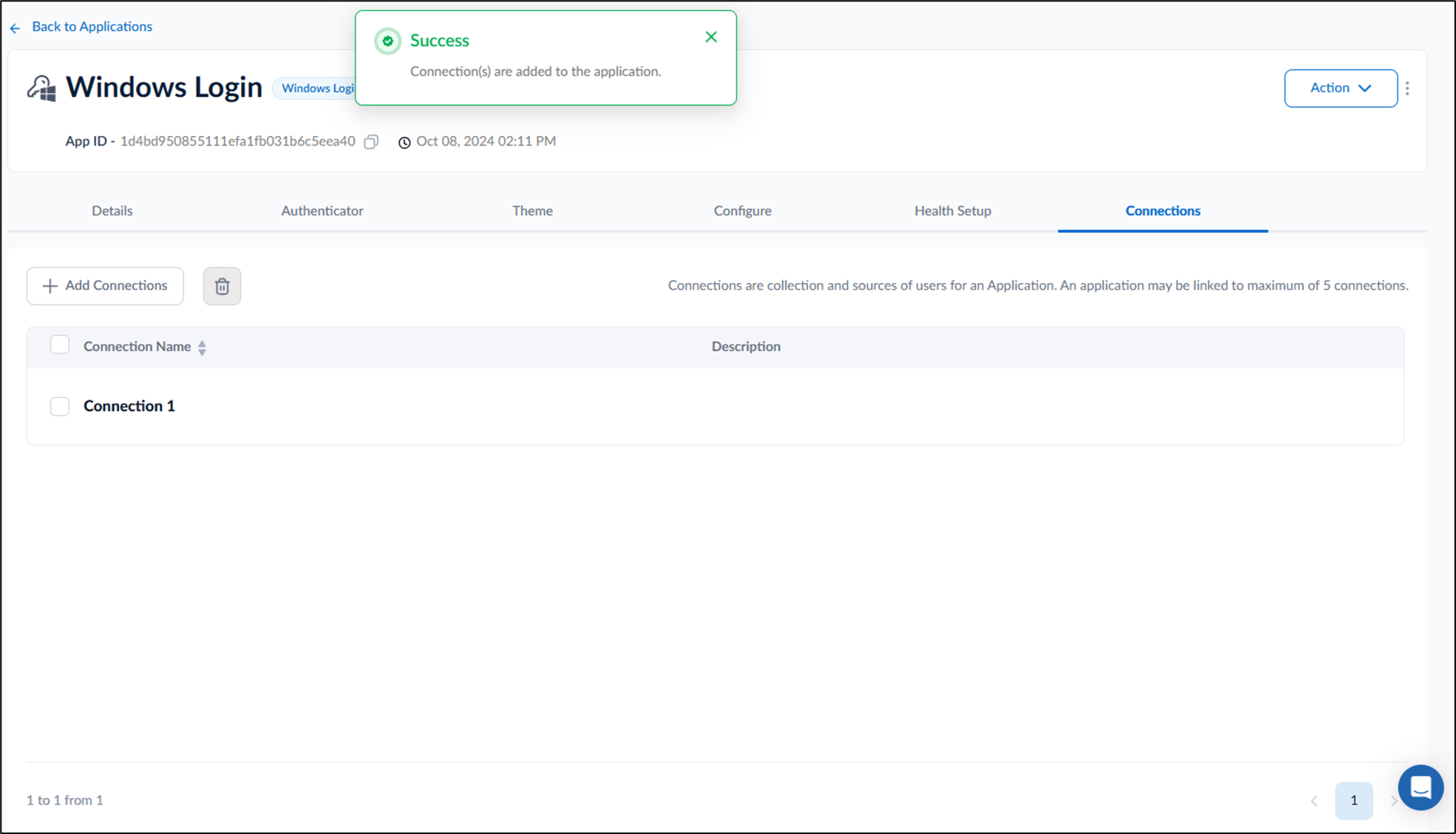

      How to add Personal Computer/Smart Card... - screenshot 3 The PC/SC enabled connection is added successfully. How to add Personal Computer/Smart Card... - screenshot 4
