Oloid Connect – How to Pair an Endpoint

​

Introduction

This document explains how to pair an endpoint using the Oloid Connect application. Pairing connects the endpoint to the Oloid Connect application in the Tenant Admin Portal and prepares the endpoint for authentication and transaction activities.

​

Prerequisite

• You must have Admin or Supervisor access.
• You must install Oloid Connect and complete the Admin setup before pairing an endpoint. For more, refer to How to Download and Install the Oloid Connect App

​

Steps to Pair an Endpoint

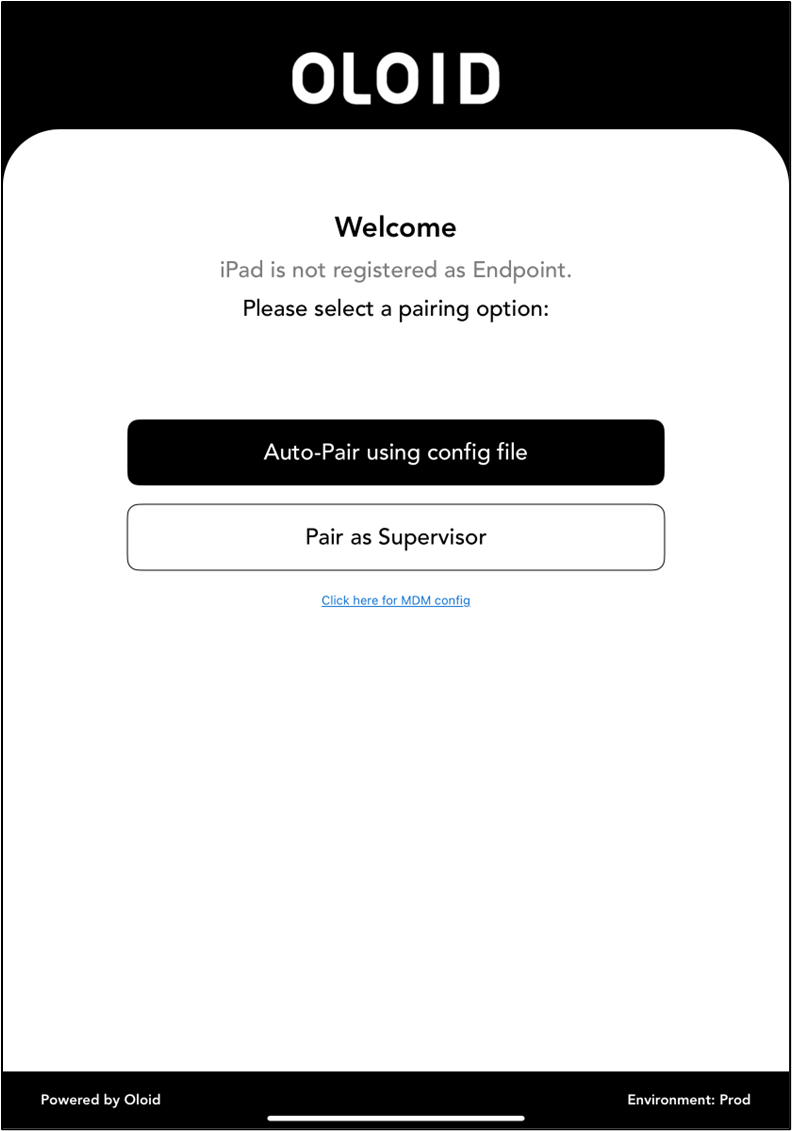

1. Log in to Oloid Connect app. The Welcome screen is displayed.
   Note: You must Complete the Admin setup**.** For more information, refer toOloid Connect - Admin Setup

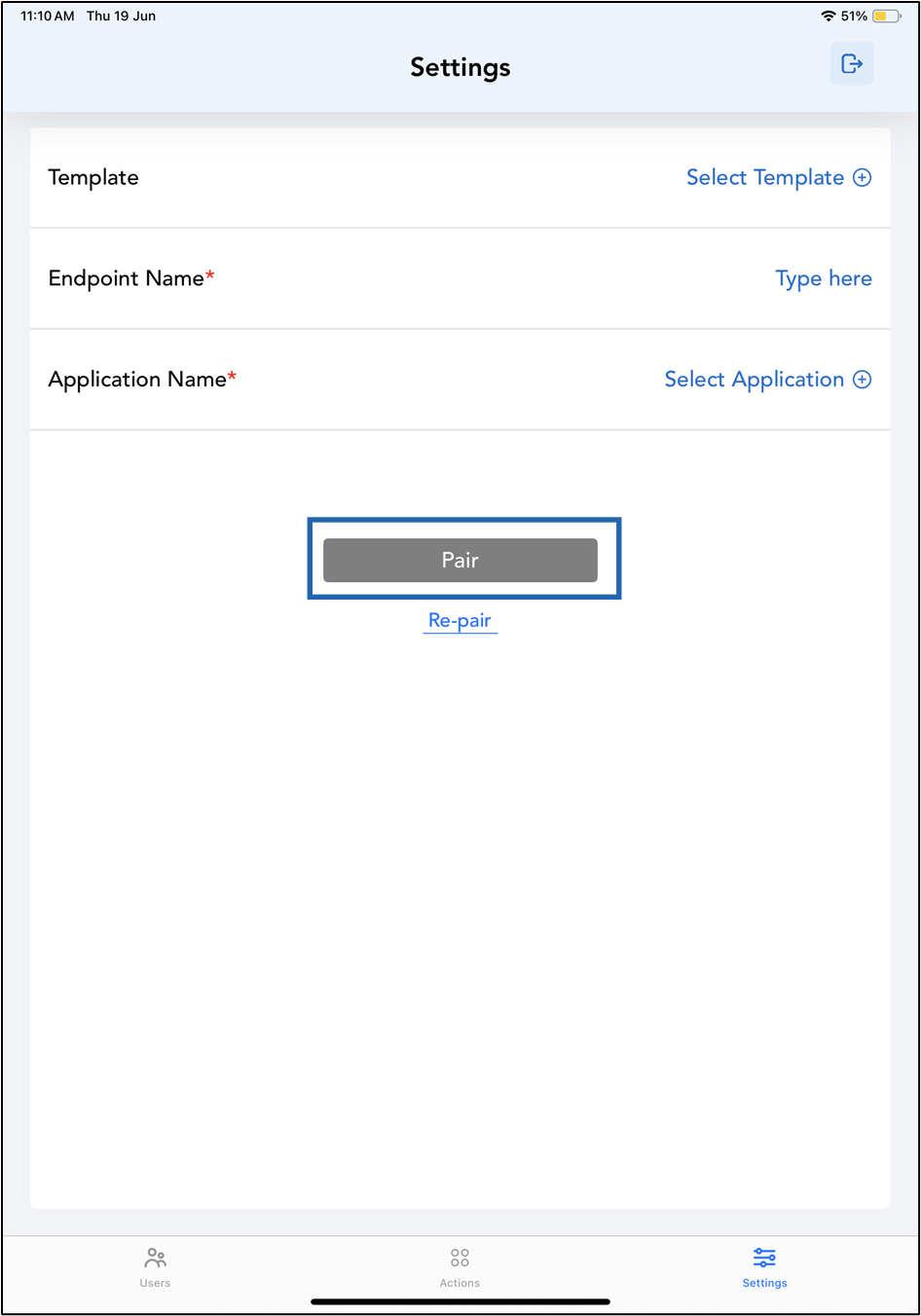

   The Settings page is displayed on a successful login.
2. Do the following:
   1. Add Template (optional).
      Note: Templates allow Admins to configure Endpoints at scale. A template has to be created in Tenant Admin Portal. For more, refer to How to create and configure Oloid Connect endpoint template
   2. Enter Endpoint Name.
   3. Select Application Name from Application Name dropdown list.

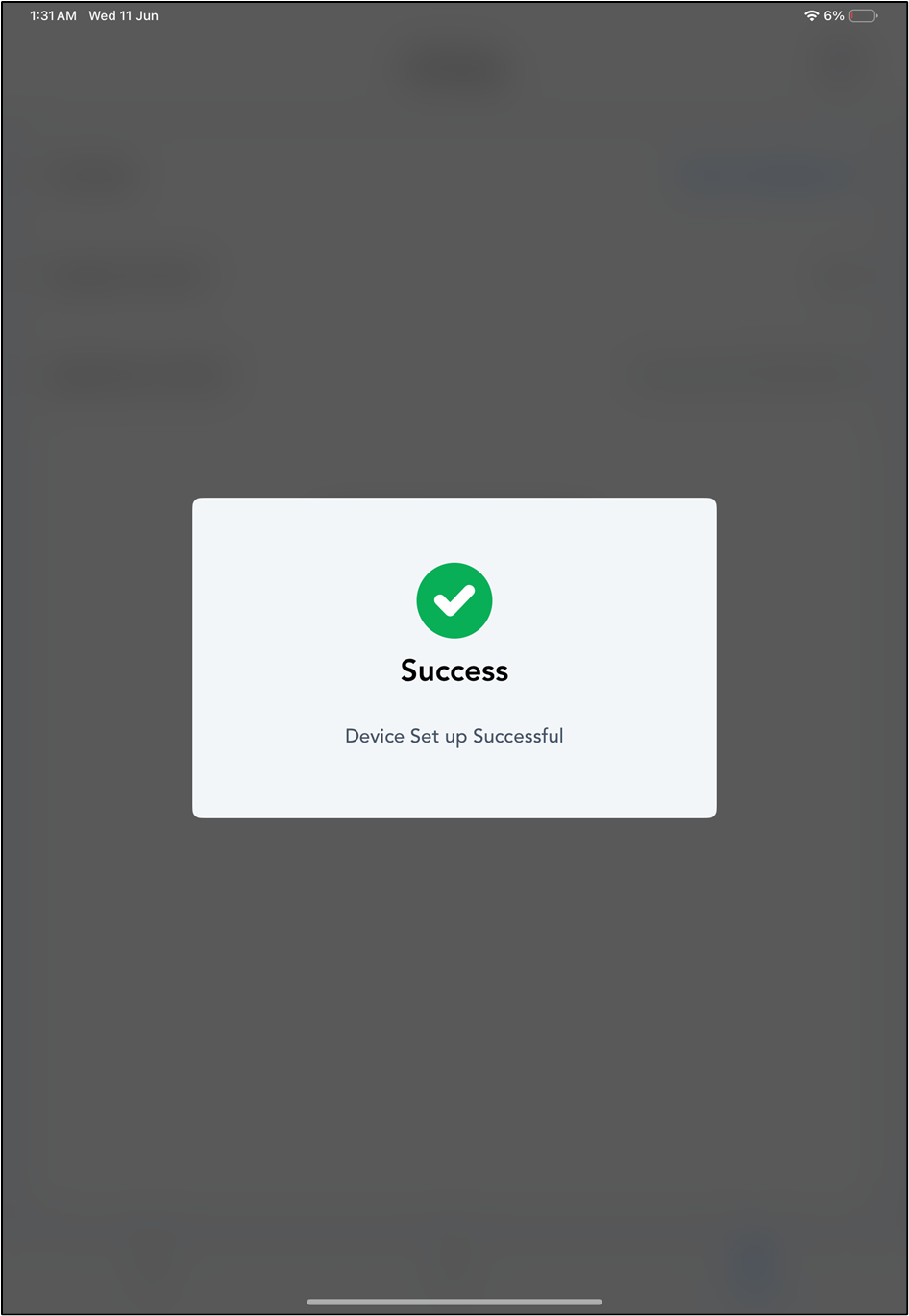

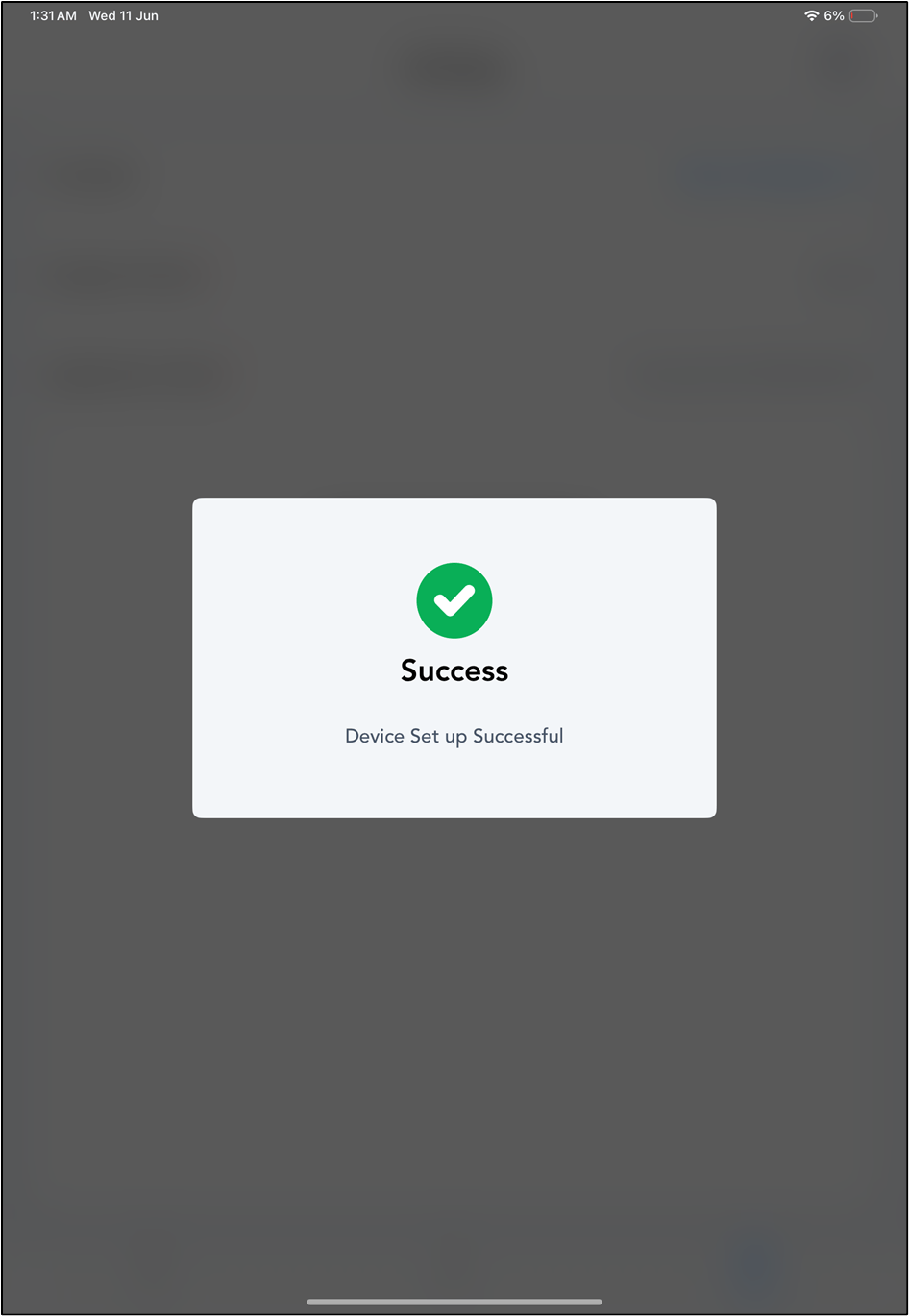

   4. Tap Pair. The settings are saved and endpoint is successfully paired. The application prompts you to log out of Admin mode.

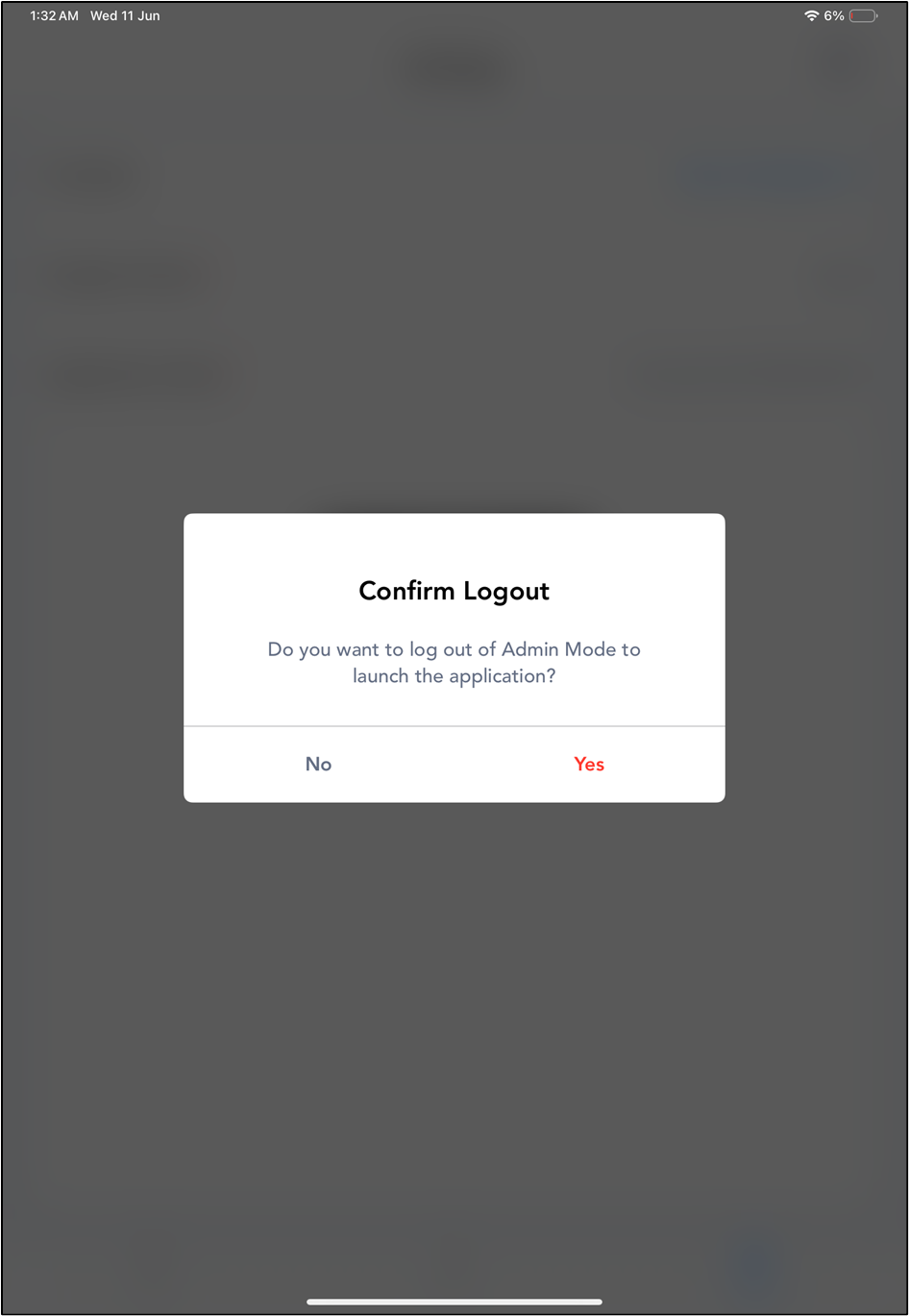

3. Do one of the following:
   1. Tap Yes to log out and launch the application (preview mode). The app displays preview mode and allows you to do the transactions.
   2. Tap No to stay logged in to the admin mode.
