Introduction

The Oloid Connect Network Architecture defines how network devices and services are organized to support the connectivity requirements of client devices.
Note: Ensure that the tablet’s network connection (Wi-Fi or Ethernet) can communicate with the servers listed below. All network requests are outbound.

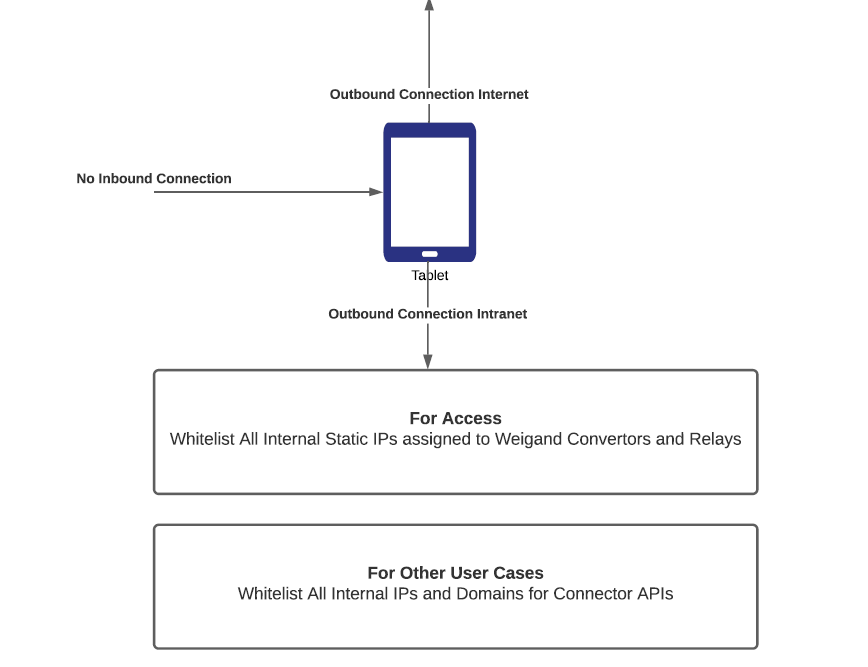

Sn. Domain name Port Description 1 oloid.cloud 80, 443 Production Oloid Face Vault Platform Root Domain 2 *.oloid.cloud 80, 443 Production Flex Tenant Sub Domains 3 oloiddev.com 80, 443 Development Oloid Face Vault Platform Root Domain 4 *.oloiddev.com 80, 443 Development Flex Tenant Sub Domains 5 fr.proxce.co 80, 443 Legacy Development Server ( Used for telemetry ) 6 Auth.Face-vault.co 80, 443 Legacy Production Server ( Used for telemetry ) 7 *.crashlytics.co 80, 443 Capturing Crash Logs 8 *.amazonaws.com 80, 443 Accessing AWS Resources directly ( e.g S3 ) 9 cv.proxce.co 80, 443 Legacy Computer Vision Server 10 *.googleapis.com 80, 443 Firebase Pub Sub Production Interface 11 visionlabsbv.prod.sentinelcloud.com 80, 443 On Device FR License Management Server Network architecture - screenshot 1
