Windows Login - How to Enroll PC/SC Badge using Supervisor App

​

Introduction

This document provides instructions for enrolling a PC/SC badge to a user through the Supervisor App. The badge can be scanned using a connected PC/SC badge reader and enrolled directly from the user’s Badge details.

​

Prerequisites

• Ensure the endpoint is paired with the Windows Login application. For more information, refer: Windows Login - How to manually pair the Supervisor App
• Log in to the Supervisor App using an Admin or Supervisor account. For more, refer How to log in to Supervisor App
• Ensure the Badge option is enabled for the application in the Tenant Admin Portal to make the Enroll Badge option available in the Supervisor App. Refer to How to enable badge option for Supervisor App.
• Ensure a supported badge reader is connected to the system.
• Ensure the user exists in the Tenant Admin Portal. Refer: Windows Login - How to Add a User
• The badge must be assigned to the user. For more details, refer Supervisor App: Assign Badge.
• The connection added to the application must be PC/SC Badge input enabled. For more details refer How to add PC/SC Badge input enabled Connection to the Application in the Tenant Admin Portal.

​

Steps to Enroll PC/SC Badge

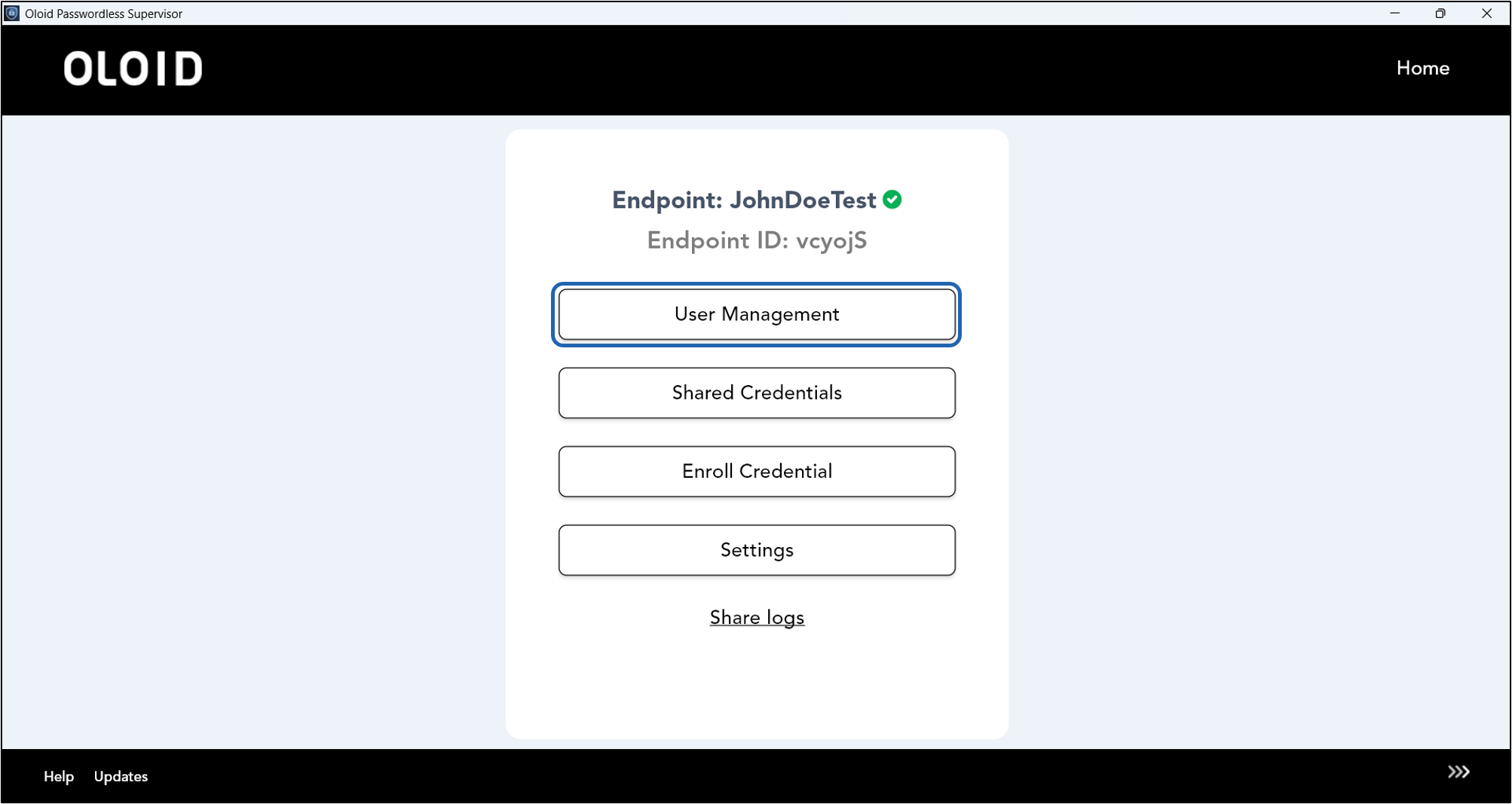

1. Log in to Supervisor App. For more, refer How to log in to Supervisor App The Admin Home screen is displayed.

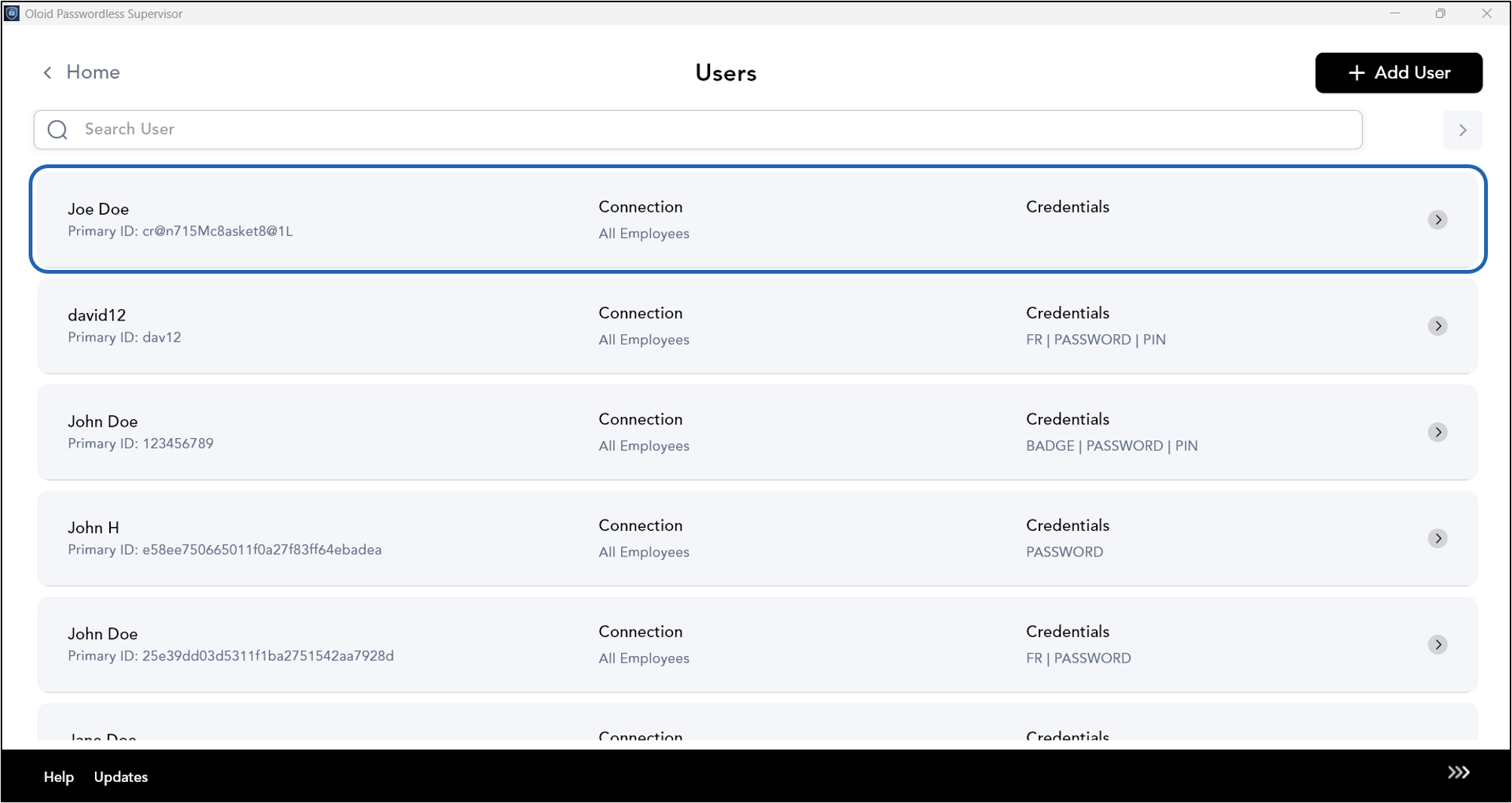

2. On the Admin Home screen, select User Management. The Users screen is displayed.
3. Select the user to view details. The User details screen is displayed.

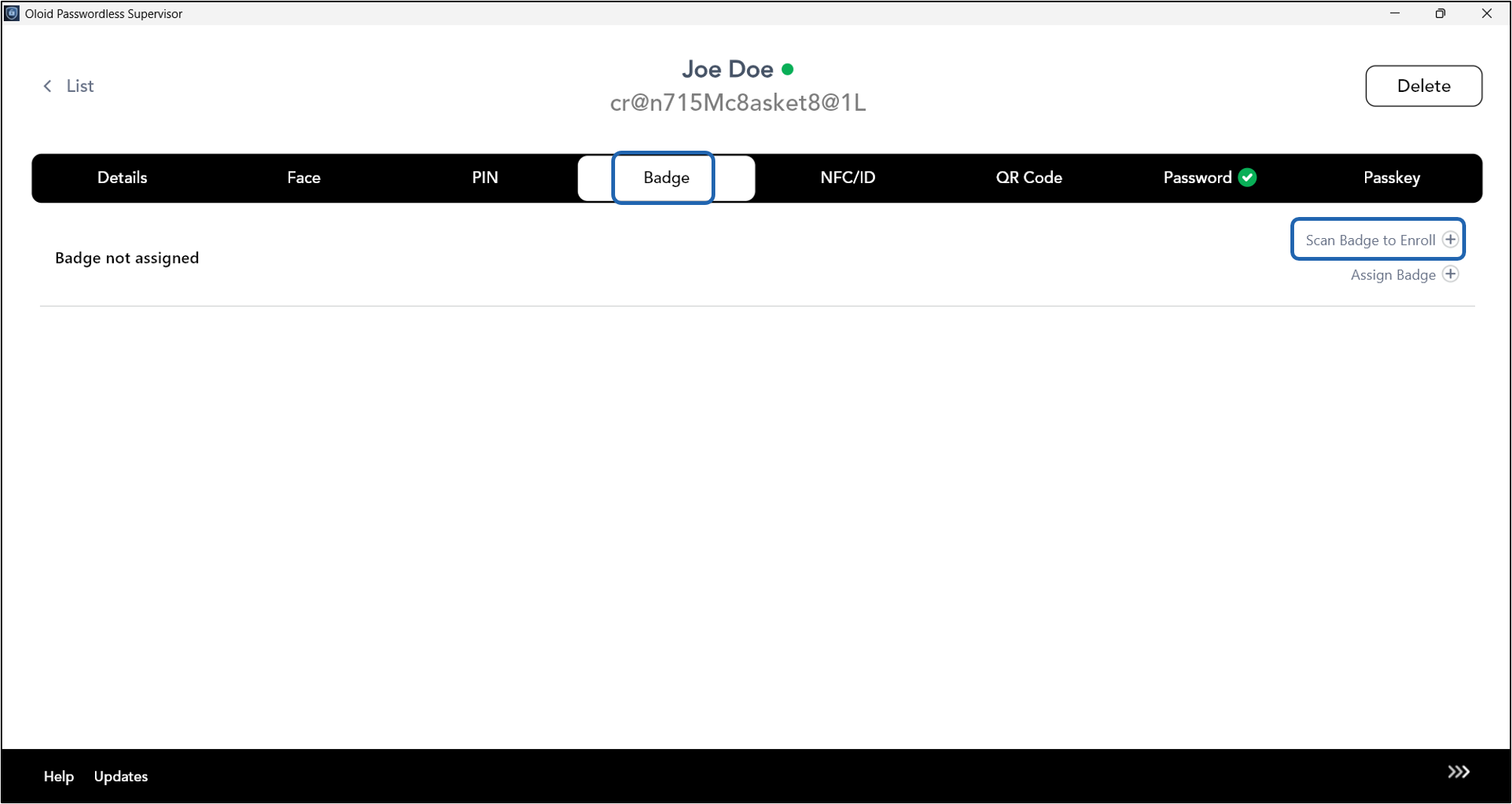

4. Select Badge tab.

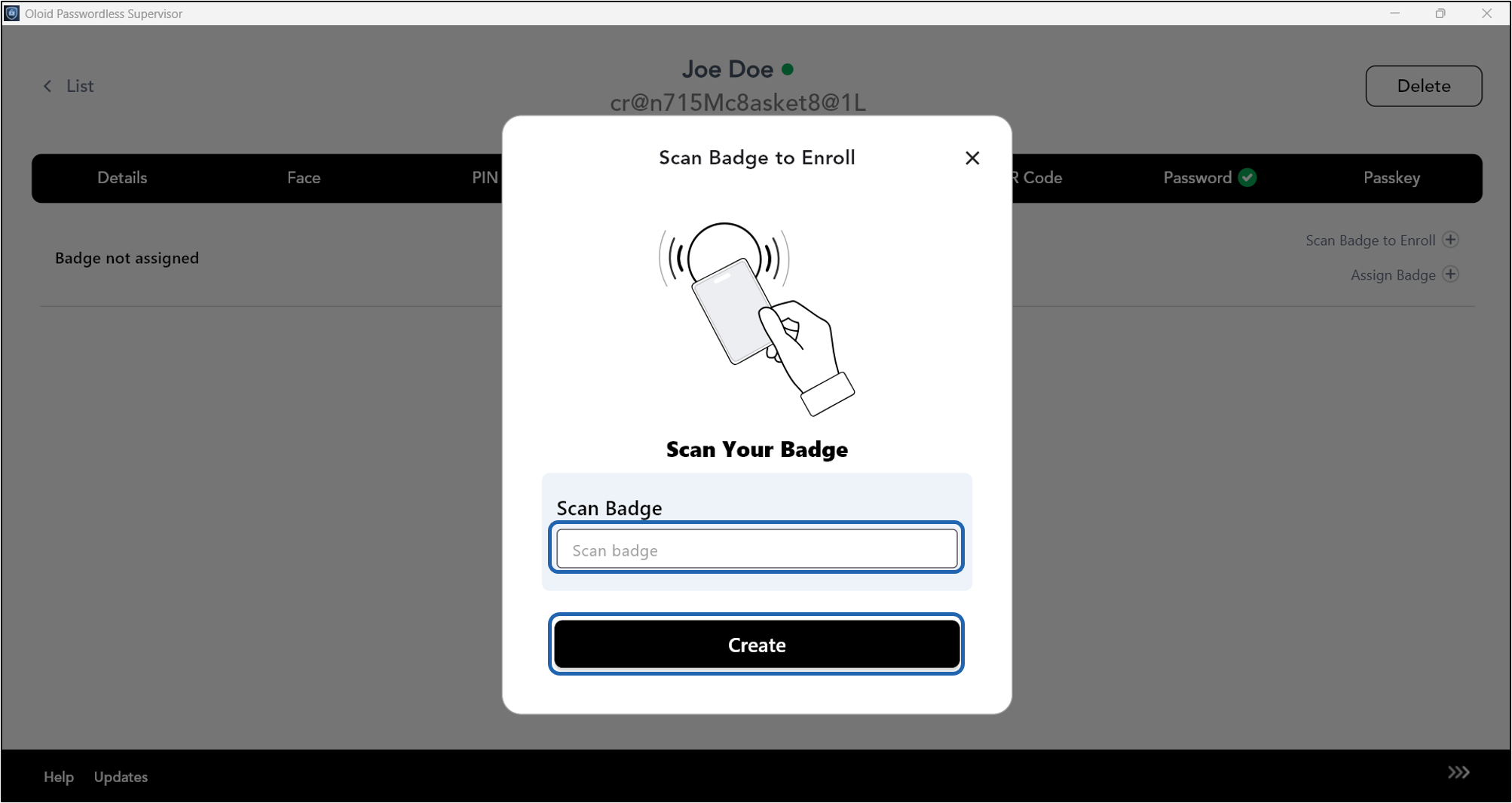

5. Click Scan Badge to Enroll. The Scan Badge to Enroll pop-up box is displayed.
6. Tap the Badge on the Reader to scan it.
   Note: PC/SC Badge reader must be connected to the system.

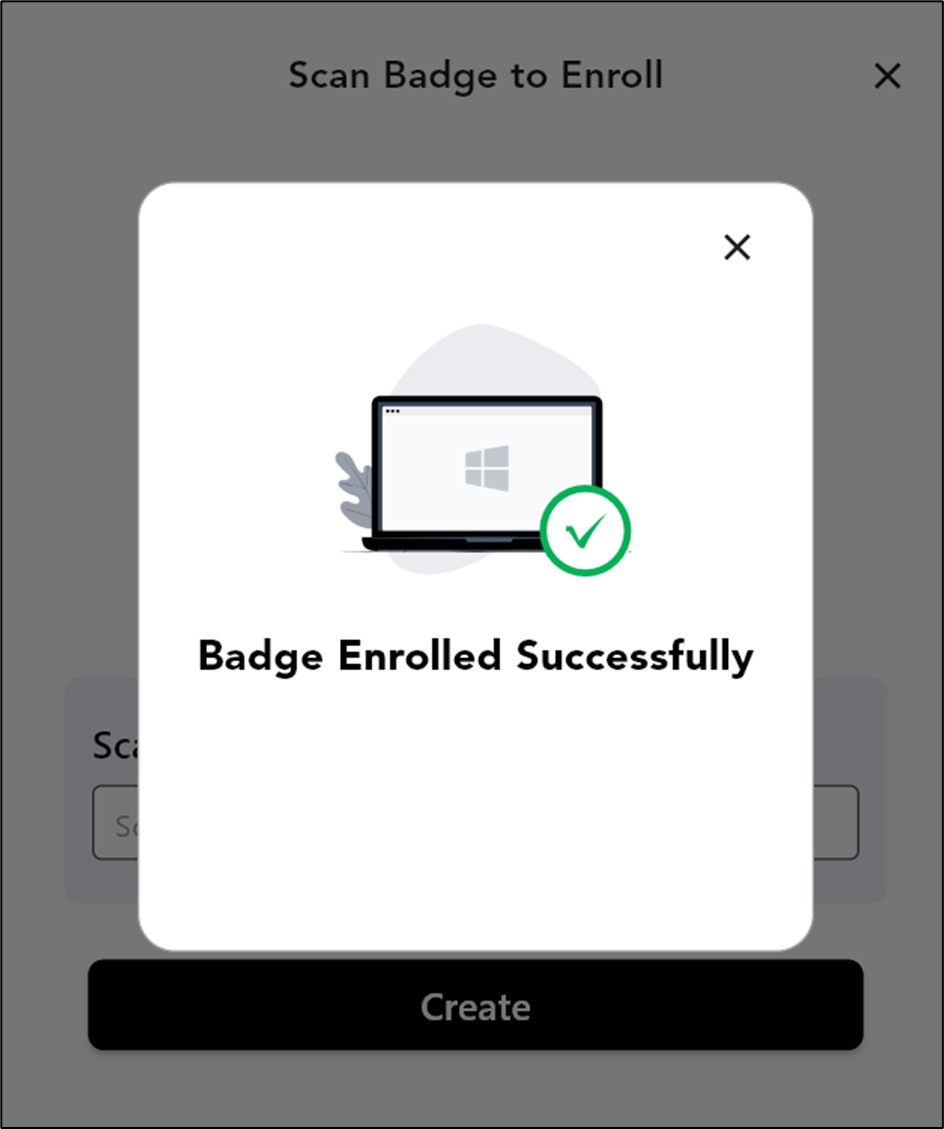

7. Click Create. The Badge is enrolled successfully.
