Windows Login - How to log in to Windows device using Badge and PIN

​

Introduction

This document provides step-by-step instructions for logging in with badge and PIN to Windows device.

​

Pre-requisite

• In the Oloid Portal, you must do the following:
  • Assign Badge ID to the user. For more details, refer How to assign Badge ID as credential to users
  • Enable Badge as an authenticator in the Windows application. For more details, refer How to enable Badge in Windows application
  • Add PIN access to the user. For more details, refer How to add PIN as credential to users
  • Enable PIN as an authenticator in the Windows application. For more details, refer How to enable PIN in Windows application
    Note: If you don’t see the login option reach out to Oloid Support.

Steps to sign in to Windows device:

1. On the Windows lock screen, do the following:

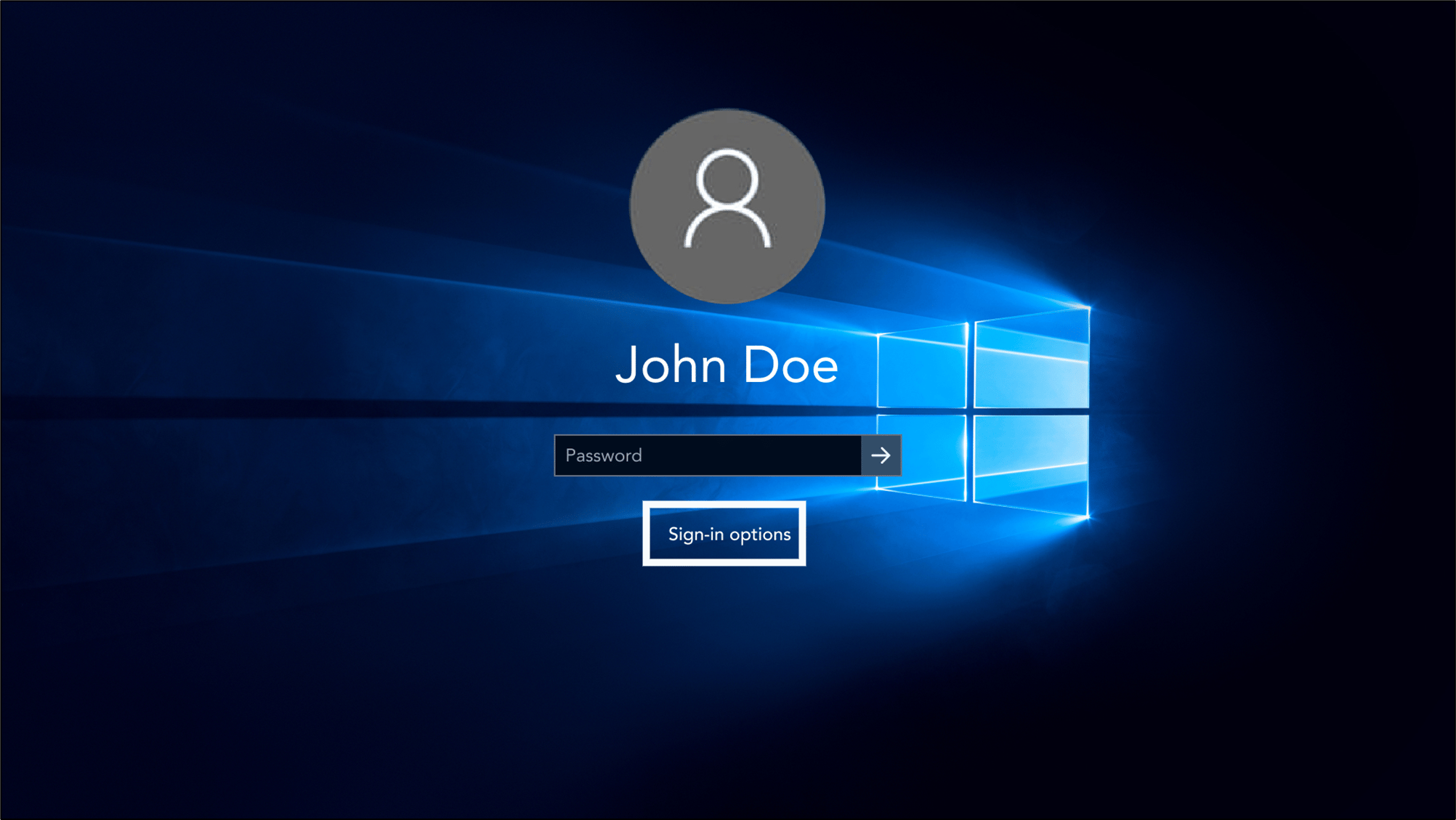

   1. Click Sign-in options. The Windows login app is displayed.

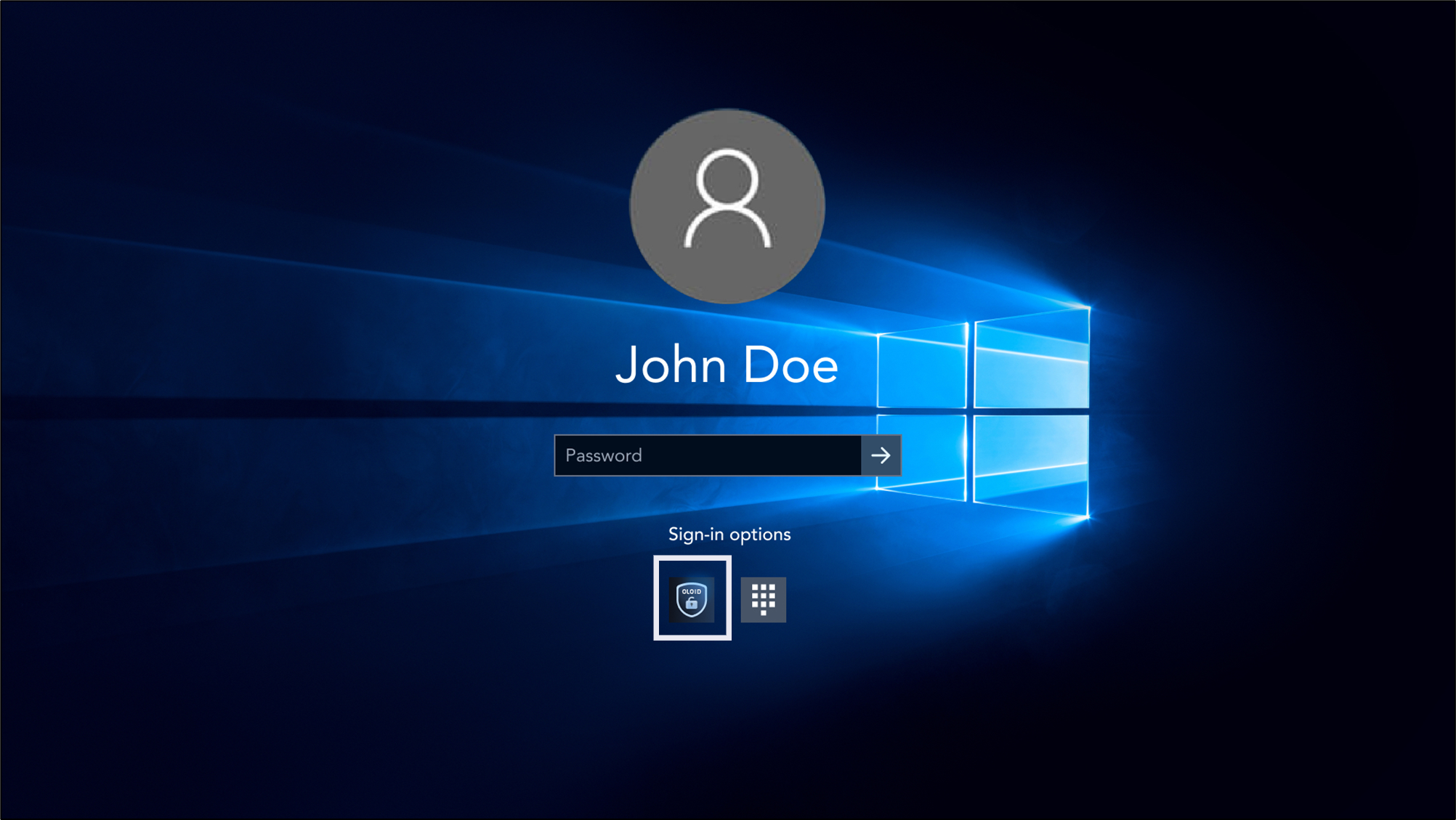

   2. Select Windows login app.

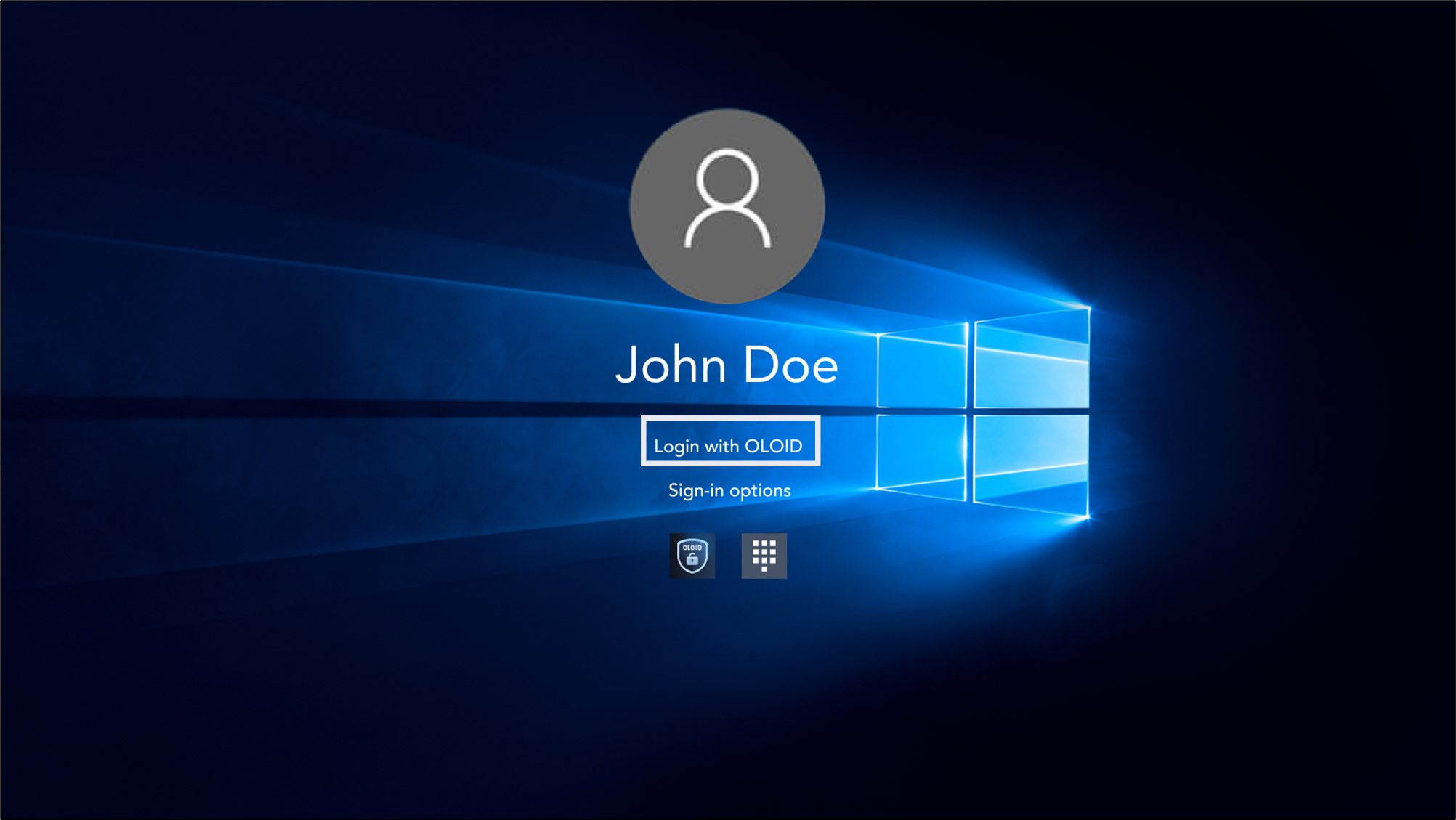

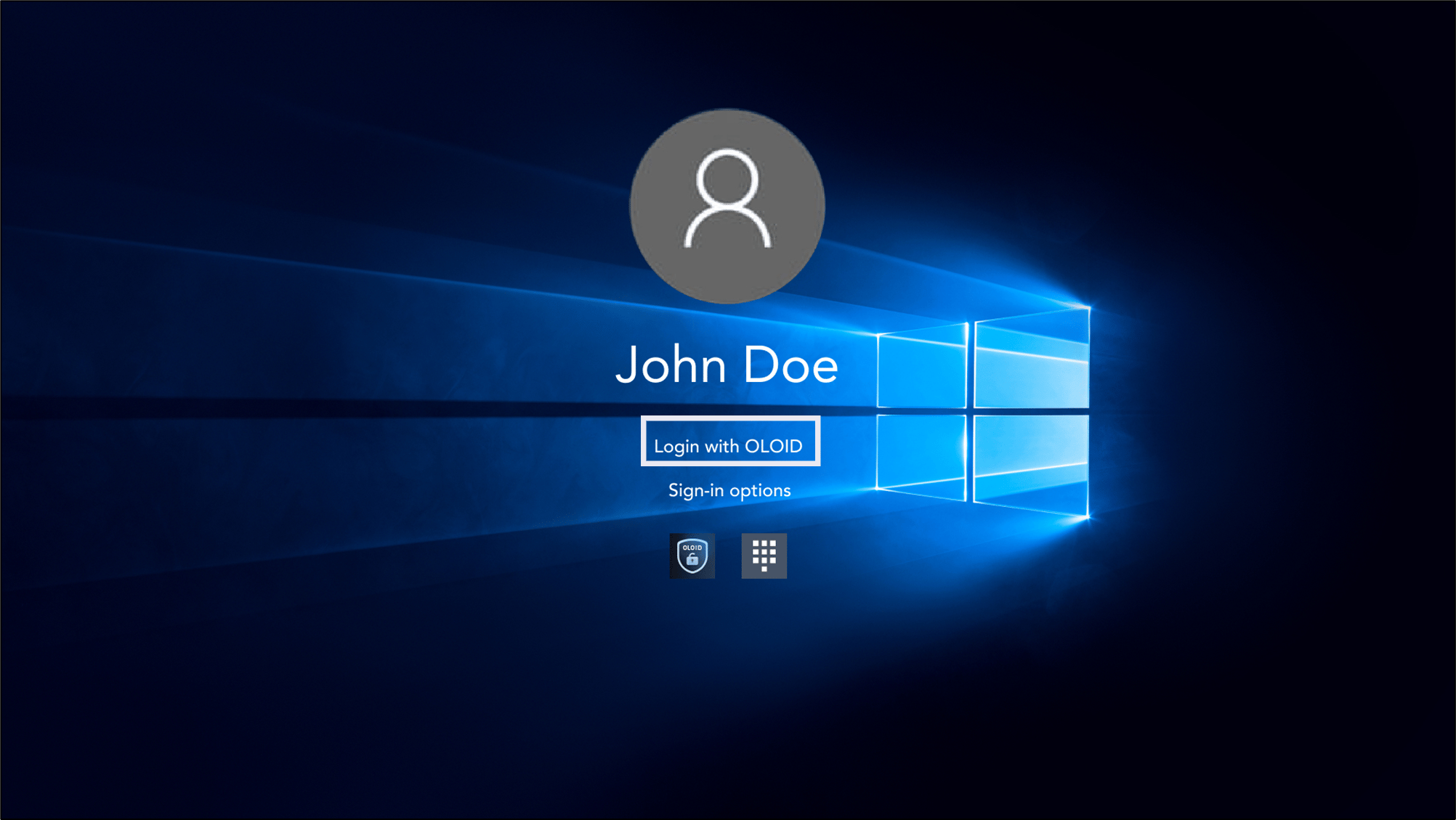

   3. Select Login with OLOID. The Windows login app opens and the Scan Badge page is displayed.

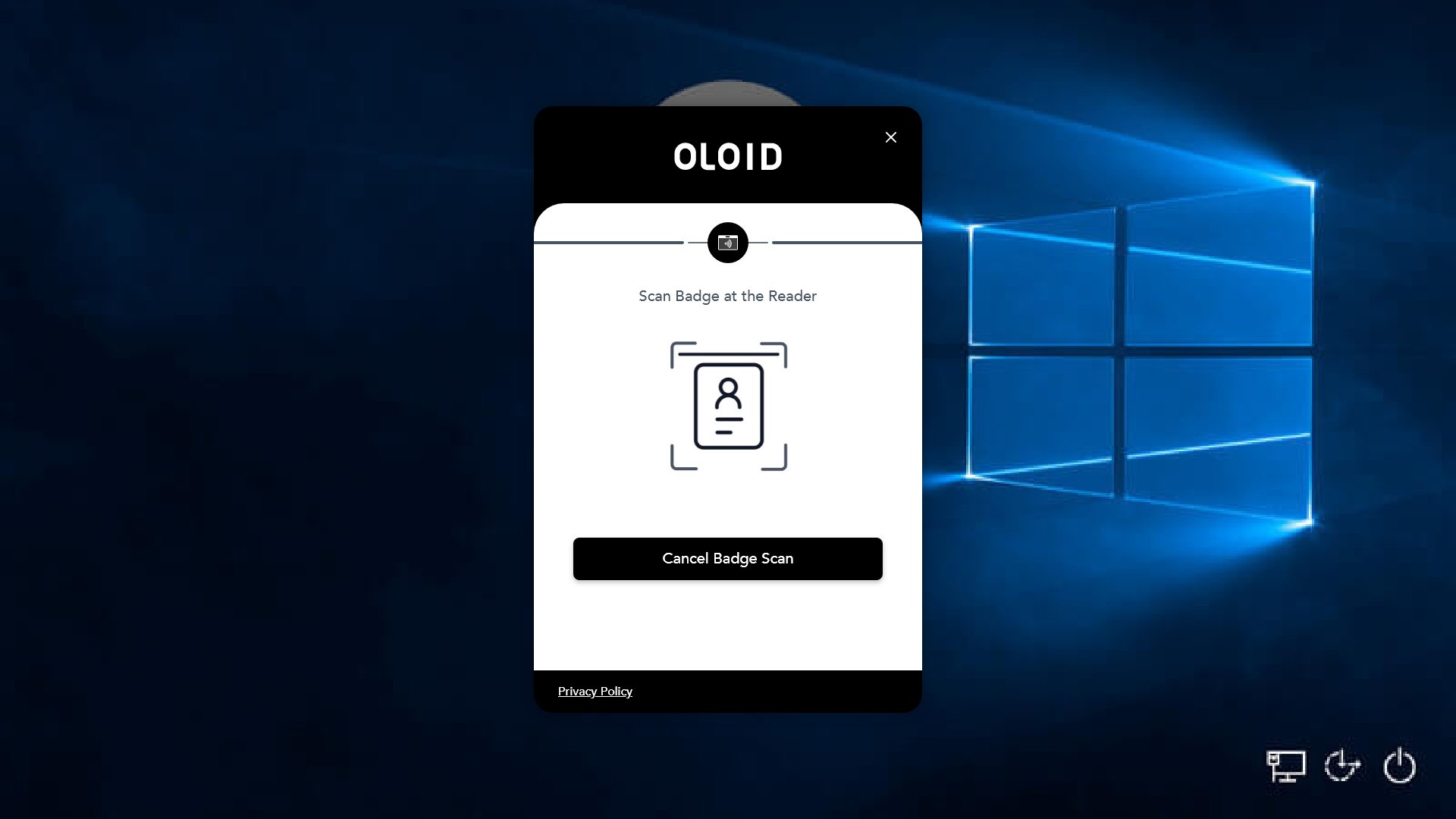

2. Tap the Badge on the Badge Reader to scan it. On Badge authentication, the Enter PIN pop-up box is displayed.

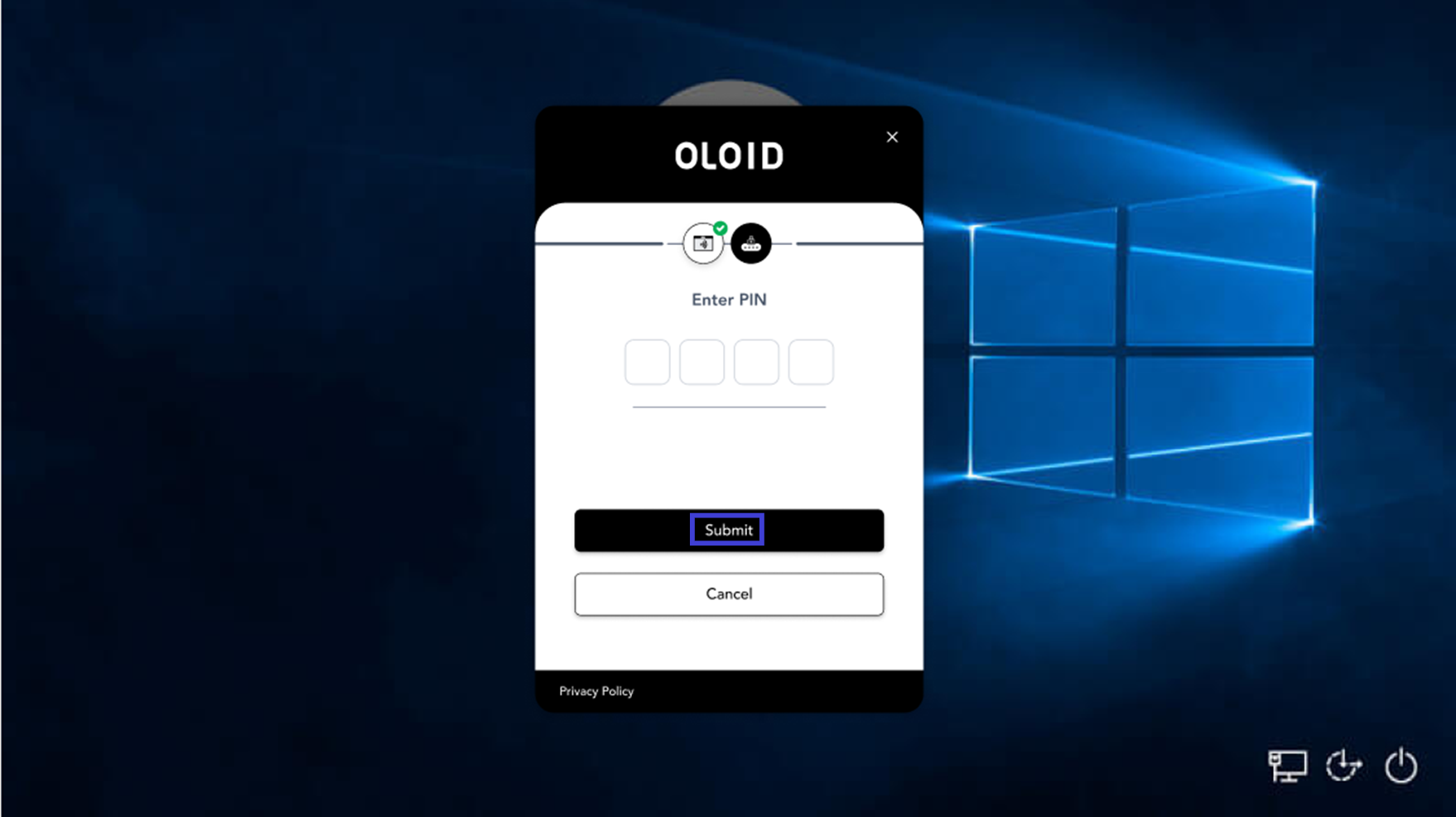

3. Enter the PIN then click Submit. On PIN authentication, you are signed in to the Windows device.

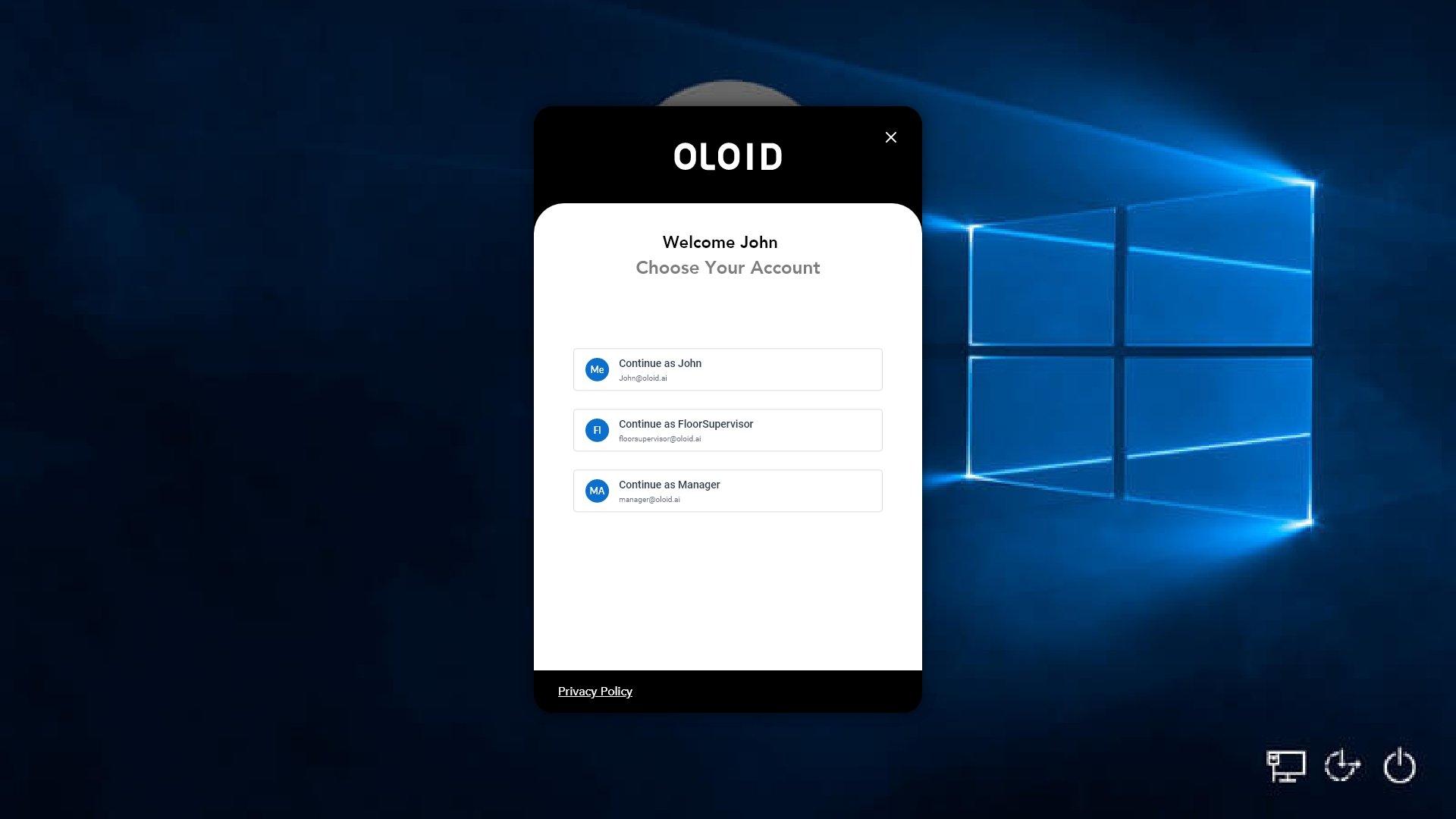

   Note: If the user has multiple passwords configured in the Oloid Portal, then the Choose Your Account page is displayed. You can select a specific account to sign in successfully.


​

Video Tutorial

Watch the video How to log in to Windows device using Badge and PIN - Video Tutorial
