How to configure System and API Health in Oloid Workflow

Each Oloid Workflow instance can be configured for health monitoring. This keeps the users updated with the status of application instance. Health monitoring can be of two types - basic and detailed. It can be configured from the Health Setup section in Oloid Workflow instance UI.

1. Basic health runs every 5 min intervals and it checks the following parameters. Basic health configurations cannot be customized.

a. Application – Core URL set connectivity b. System – CPU, Memory Usage c. Network – Interface IP & Connectivity

2. Detailed health runs every 30 min interval and it checks connectivity for a list of user-defined URLs.

​

Health Alerts

Health alerts are email notifications that are sent to intended users if the application’s health status is not healthy. Users can enable/disable health alerts. Users can also configure recipients for health alerts.

​

Detailed Health URLs

Users can define URLs for detailed health check. Every URL is given a name called integration. These URLs are checked for connectivity every 30 min as part of the detailed health check.

​

Health Configuration UI

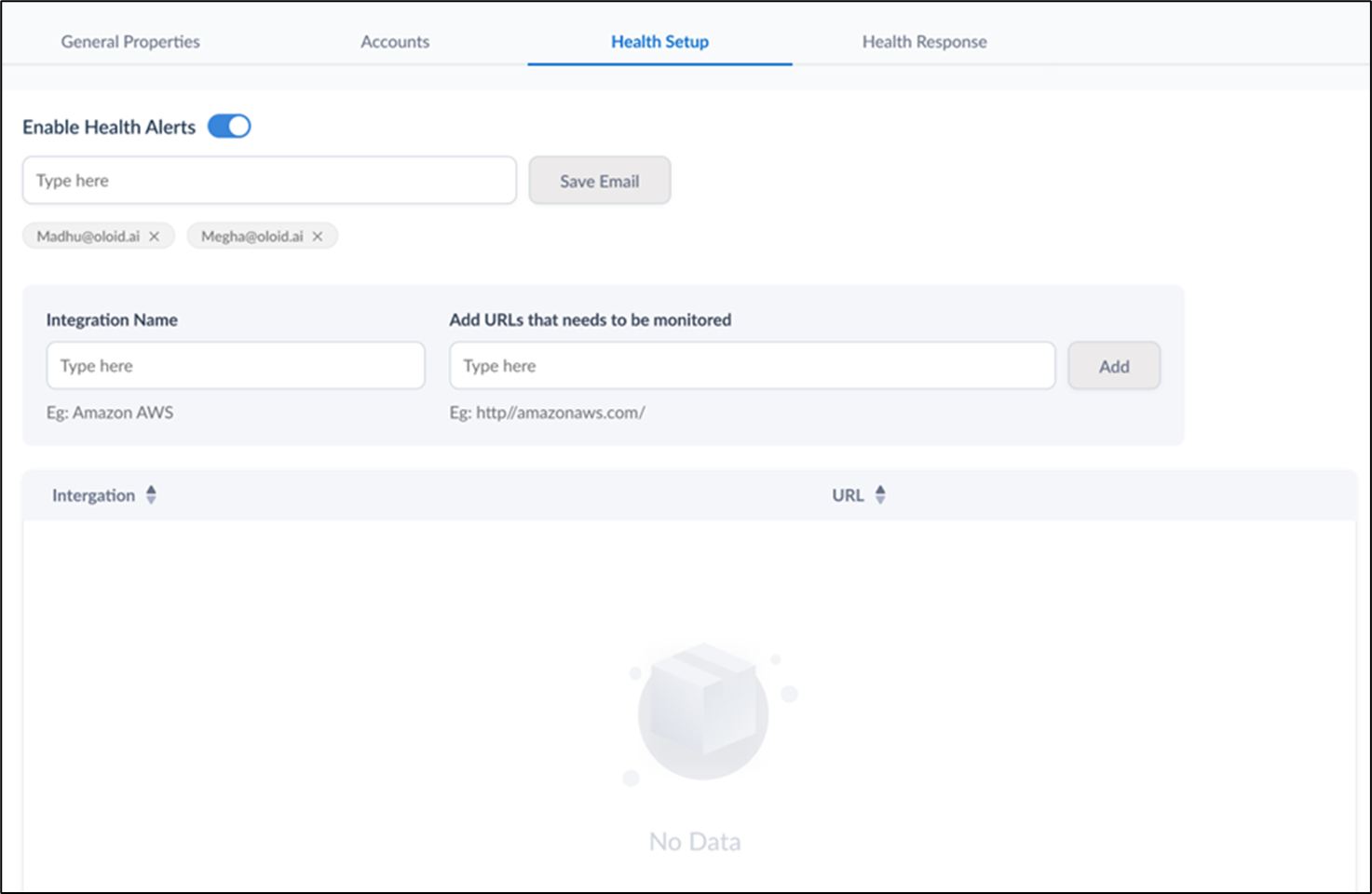

The below snapshot shows the health configuration section in Oloid Cloud platform.
